Frame scaffolding plays an important role in the construction industry, bringing great convenience to people's lives. But most people don't understand it. What is more clear, how should we use frame scaffolding safely?
What is the use of frame scaffolding?
What are the advantages of frame scaffolding?
How to safely use frame scaffolding
Frame scaffolding or A-frame scaffolding is versatile and easy to erect, allowing several layers to be built. Frame scaffolding or brick scaffolding is a common industry term referring to popular frames and scaffolding.
This is the most common type of scaffolding used by all types of contractors, from carpenters and bricklayers to homeowners of weekend projects. It's easy to set up and remove, allowing you to reach the height you need quickly. It is the preferred support for all types of construction work.
The tubular metal falsework system is probably one of the most commonly used bracket systems in the construction industry. The bracket consists of a welded steel or aluminum frame that is attached to the frame by cross braces to support the bracket plate or other bracket platform system.
The frame is manufactured in a variety of sizes and configurations, the most common being the standard 5 ft x 5 ft frame and walk-in arch or arched frame.
Arched frame scaffolding is very common in the field of masonry because it allows for easy movement between frames for material distribution. Brackets or side brackets can be mounted on the sides of the brackets and have different heights to provide a convenient platform for personnel on the working face of the building.
The frame scaffolding is light weight - ultra-fast erect - can be installed by one person - it is prefabricated! - All of this saves you time and money.
Builders like to use scaffolding because there is no standard between bricklayers and walls. Make full use of the wall. Frame scaffolding is not for use only by builders; many industries also benefit from the great features of scaffolding.
Framed scaffolding is the most common type of scaffolding because they are versatile, economical and easy to use. They are often used by residential contractors, painters, etc. for one or two floors, but their modular frames can also be stacked several times for large construction work.
A stable structure cannot be built on the basis of not starting a square and level. OSHA's standards are specifically tailored to the steps that must be taken to ensure a stable base.
In order to control the risk of falsework falling or collapsing, employers must ensure that scaffolding is built within the OSHA standard and is related to strength and structural integrity.
Workers are the most vulnerable to falling down when climbing or leaving the frame scaffolding. Therefore, employers must provide safe scaffolding access. Due to the incomplete state of the scaffolding, the installer and disassembler face additional access problems. The requirements to prevent falls only for these workers are described separately below.
The danger of the number one Scaffolding is that workers fall. Fall protection consists of a personal fall arrest system or guardrail system and must be provided on any scaffolding 10 feet or more below the lower level. The specific requirements are as follows. Note: Unless otherwise stated, these requirements also apply to manual propulsion pump sockets, ladder jacks, tubes and couplers, rod brackets, and special brackets as described in the Support Bracket Module.
In addition to being used only as a walkway, the platform is the working area of the Scaffolding. Therefore, inspection of the scaffolding platform requires a security check of the platform structure and how the staff uses the platform.
Two sets of ties that connect to the walls of the building help keep the stand upright.
Once the falsework is built, even if it meets all other criteria related to foundation, structure, capacity, etc., if it does not remain upright, it will still not provide a safe working platform. As a general rule, once the height of the scaffold is four times its minimum base size, even if it is plumb and square, the scaffolding becomes inherently unstable. Damage to extreme weather or structural components can also affect the stability of the scaffolding.
Because they may be built close to overhead power lines, and because they are usually made of metal, frame scaffolding may put workers at risk of electric shock. This risk can be eliminated through proper cleaning and maintenance.
Staff training and qualified personnel
Critical to the safety of Scaffolding is the use of qualified personnel to design, install/remove and maintain scaffolding, and trained workers to use them. Therefore, the evaluator's ability should be part of all stages of scaffolding inspection.
Learn more about scaffolding to help people protect themselves while using it safely. If you want to buy fake parts that are safe, durable, high-quality and cheap, Nanjing Tuopeng's construction technology can provide you with the perfect product.
Four ways system scaffolding beats frame and brace
Why contractors choose system scaffolding over frame and brace? Here are four ways we can see the reasons.
Specialized components for improved safety
Specific components designed to improve safety are included in each system scaffolding style. This category includes specialized accessories such as integrated or locking toe boards, deck liftoff preventers, and secure guardrail standards (also known as "crazy legs"). The Ringlock system is one example. All of its components are combined by a single rosette. Workers have a tie-off point almost anywhere they need one with a rosette every 500 mm (19.5").
Greater access to congested areas
System scaffolding can be used for large projects and is extremely efficient in crowded, obstacle-filled areas. Frame and brace construction is common in fixed rectangular bays, but it presents challenges when positioning around obstacles and in confined spaces.
System scaffolding is ideal for accessing irregularly shaped or circular structures such as domes and power plant interiors. Ringlock scaffolding, for example, is a good choice for uneven surfaces..
System scaffolding is also the superior choice for hanging scaffolds from rooftops, pipe racks, bridges, and other elevated areas, providing a much more cost-effective alternative to building up from the ground in many cases.
Effective for rigging and shoring
System scaffolding is more adaptable for two activities on which access contractors consult: rigging and shoring.
Rigging is primarily used in construction sites to push, hoist, lift, or pull objects. System scaffolding is crucial in providing custom rigging solutions for swing stages and other suspended access. Ringlock and Cuplock, for example, are two popular system scaffolding types in suspended scaffold rigging. Ringlock can also be used for crane lifting by modifying base jack retention and coupling pins.
System scaffolding is popular for shoring because it can create a diverse range of shoring solutions capable of supporting heavy loads. Ringlock scaffolding is a popular choice for shoring. Cuplock is also widely used for shoring and formwork scaffolds. It is ideal for use beneath slabs of varying heights and structure systems.
Easier storage and transporting
While frame and brace stacking is simple on a truck or in the yard, you must account for the bulky frames when planning efficient storage or carry-in of equipment to indoor spaces. System scaffolding, on the other hand, is made up of linear tubes and smaller accessories, allowing for more flexible truck loading and easier material handling when scaffolds are erected far from the nearest delivery gate or drop-off point.
Because Mason frame scaffolding is versatile and economical, it is considered to be the most common type of bracket. However, there are still many people who do not understand Mason scaffolding. Many people will ask: What are the main components of the masonry scaffolding? How do we use it?
What is a mason frame scaffolding?
Basic scaffolding elements
How to use mason scaffolding?
Mason scaffolding or mason frame scaffolding is a common industry term referring to our popular Frame and Brace scaffolding. This is the most common type of scaffolding used by all types of contractors, making bricks or blocks safer and more efficient, from carpenters and masons to homeowners of his weekend projects. It is easy to set up and disassemble, allowing you to reach the desired height quickly.
They are often used by residential contractors, painters, etc. for one or two floors, but their modular frames can also be stacked several times for large construction work.
The basic scaffolding elements include three common components: standard, ledger and beam. A standard is that the mass of the bracket is directly connected to the long tube or tube of the ground and the length of the scaffold it operates. Each standard base is attached to the base plate, which helps to distribute the weight of each standard bear. Between each standard operating horizontally is a ledger that adds further support and weight distribution. Beams placed at the top of the ledger at right angles come in several different forms. The main beam supports the standard by attaching the standard to the support and support plates. The intermediate beam is placed with the main beam to provide additional plate support.
In addition to standards, ledgers and beams, there are other supporting elements that can be used to enhance basic scaffolding. Parentheses, such as ribs, ivory braces, and additional couplers, can be used in different combinations to support multiple ways of structure. The cross brackets run diagonally between the ledgers and are securely attached to the standard to increase the overall rigidity of the structure. However, it can also fix itself on the ledger, in which case they are simply referred to as ledgers. The outer wall support helps prevent structural rocking and adheres to the surface of the scaffolding, extending along the surface of the structure and firmly attached to each level.
Couplers help to connect structural elements and have a variety of variants. To connect the ledger or beam to the standard, a right angle coupler should be used. If the beam supports the board and must be connected to the ledger, the ledger should be connected to the beam using a putlog or single coupler. Rotating joints are recommended for any other connection angle between the scaffolding pipes.
The length, width and height of each scaffolding component can vary from building to building, but there are several basic measurements for each basic component. The general width of the stent is typically determined by the width of the stent panel. The height between the ledgers, also known as the lift height, is usually between 2 and 2.7 meters. Beam placement depends on board thickness. If the board has a thickness of 38 mm, the beams should be at most 1.2 m apart. A 50 mm thick board requires beams to be no more than 2.6 meters apart.
In addition to the basic structural elements of the scaffolding, there are a variety of ties that secure the scaffolding to adjacent buildings. As a general rule, connect every 4 meters at alternate lift levels. However, the type of lacing and the type of lacing used may vary depending on the type of stent. For example, by connecting, the scaffolding can be secured to the building by entering an open window of the building. The box ties help to secure the scaffolding by connecting to external features of the building, such as strong columns.
The erection and use of scaffolding requires planning and careful implementation to ensure safe and efficient work. Here are some steps to help you understand how to complete.
1.Plan the scaffolding project to provide sufficient material for the work. If you can use it for many projects, you can rent or buy scaffolding. The basic parts of the scaffolding system include the following items:Scaffolding jacks, stacking pins, leveling legs or bottom plates, harnesses, ladders, scaffolding boards, legs, various clamps and pins for assembly.
2. Items required to rent or purchase a project. There are many professional rental companies that design and even assemble and disassemble scaffolding for engineering. Having skilled workers erecting scaffolding is critical to safety and productivity, not to mention avoiding possible fines from security agencies such as OSHA (US) or similar safety regulators.
3. Prepare the area where the scaffolding will be erected. It should erect the ground or surface as flat as possible, the soil should be compacted and have sufficient drainage to support the scaffolding, even in wet weather.
4. Arrange the jacks according to the manufacturer's spacing and use adjustable support legs to ensure the first lifting level and vertical of the jack. Proper installation of the first scaffolding will make the scaffold easier and ensure that the finished scaffolding system provides a safe, stable working platform upon completion.
5. Install all supports and connectors before proceeding to the next level jack. Ladders should be provided to access each scaffolding layer and workers should be provided with personal safety equipment such as gloves, safety glasses and fall arresters during the installation process.
6. Use the scaffolding board to lay each level of scaffolding before installing the next level. You may find that you can install a minimum number of plates of scaffolding jacks at each level, but since normal brick work will be performed from each level, having a complete deck will make stock material and enter the work area. Safe and easier.
7. Install safety functions as soon as possible on each scaffolding structure level. Handrails, toe boards and access doors should be installed and materials placed on the scaffolding deck before allowing workers to work without fall protection.
8. Bind the high scaffolding structure to the adjacent structure to prevent the scaffold from falling. Depending on your location and work, government regulations may require support or support for scaffold prior to use. In the United States, OSHA requires this support when the scaffold has an aspect ratio of 4 to 1 or greater. For example, if the height is 20 feet (6.09 meters) or higher, a 5 foot (1.5 meter) wide scaffolding must be secured.
9. Is it responsible for supervising the installation and use of the scaffolding (this is a qualified person according to the OSHA guidelines) to check the scaffold before use. Labels should be posted at the access location and should contain a daily check log of daily signatures and dates.
10. Install the legs and other accessories needed for the necessary work when needed. This will allow workers to adjust the height of work between each level and enable them to work more efficiently.
11. Stock materials used for scaffold from the scaffolding deck. Large projects and projects that load large amounts of material at regular intervals should install a channel tower on the main scaffolding system so that the weight of these materials is not dangerous and the worker's access deck can be maintained on the scaffold. Avoid overloading the scaffolding deck. As a rule of thumb, scaffolding boards can sag more than an inch (2.5 cm) at any time and they may be overloaded.
12. Perform scaffolding work, whether it is laying bricks or blocks, installing insulation, waterproofing or plastering, painting and/or caulking.
13. Remove the scaffolding when the work is completed. This is usually done in the reverse order of assembly and care should be taken to manage all materials so that they can be safely lowered to the ground. Cleaning loose debris and using buckets or bags to hold small parts will help prevent items from falling to areas that may be damaged or lost, or workers may be injured.
14. Clean up the area where scaffolding is used and store the scaffold until needed again. The rented scaffold should be calculated and returned to the rental company and any damaged or missing items reported.
It is undeniable that Mason Frame Scaffolding is safe, economical and easy to use, but more importantly, you need to choose a standard Mason Frame Scaffolding and know how to use it correctly. If you are looking for a bricklayer skeleton scaffolding with reasonable price and high quality, Nanjing Tuopeng Construction Technology can provide you with perfect products.
Limpet Couplers are a type of pressed steel scaffold board retaining clamp, which are different from drop forged type board retaining couplers.
In comparison to forged BRC couplers, limpet clamp is lighter in weight, easier to handle and erect, less expensive, and has the same retaining function and strength.
Pressed steel limpet scaffolding couplerss are used to secure scaffolding boards to the transom beneath the boards. They are secured from the top, are domed (so they are not a tripping hazard), and have no protruding bolts on the underside. They are a great alternative to traditional scaffolding board retaining couplers.
The application of limpet coupler
The application of board retaining coupler
We all know that scaffolding can assist building construction, repair and maintenance, but many people do not understand that scaffold coupler is an important part of it. What function does scaffold coupler have after all? How many types of coupler?
What is scaffold coupler?
What are the types of scaffold couplers?
Scaffold coupler function
Scaffold coupler is basically used to assemble tube and coupler scaffold basic components. Scaffold connectors are installed on scaffold pipes to hold struts in place. They support internal-to-internal-strut or internal-to-exterior strut with fixed or rotating fittings, depending on the structural application of support pipes and fittings required. The coupler works by creating a straight line or an Angle to ensure that the rest of the scaffold is securely fixed in a structurally stable position. In general, these products rotate at standard 90 degree angles with central positioning to give additional support to scaffolding.
Scaffold coupler is suitable for various situations. Whenever you connect the two scaffold tubes together, you will need the right coupler to do the job.
Customers can easily get couplers and accessories of different sizes and sizes, and choose according to their own needs.
Rectangular coupler. In architecture, rectangular couplers are standard for adding transformers. These types of couplers can be in various sizes, including,48X48,43×43 × 48,48×60, etc., depending on your specifications.

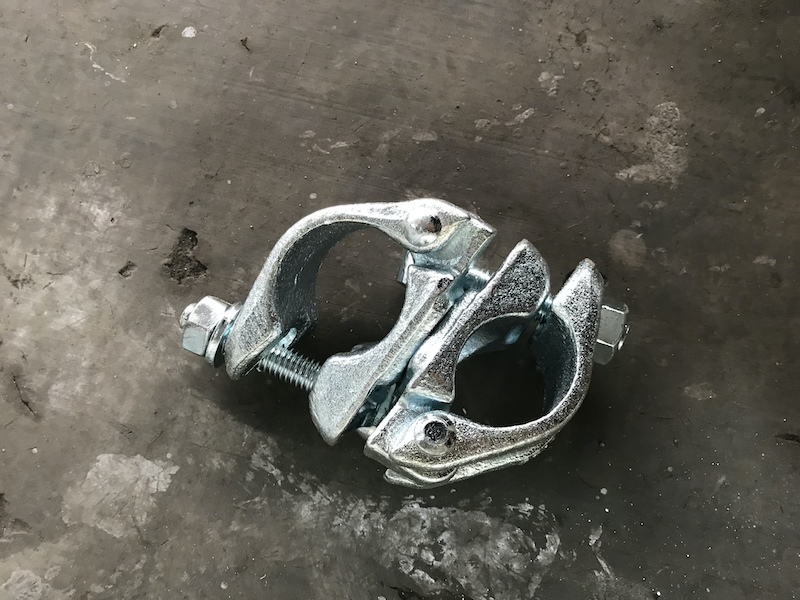

Rotating coupler. They are handy when creating custom angles, which means they can connect the two pipes at any Angle you want. The scaffold tube rotary coupler can be used to tighten the connection between two pipes in the correct way. However, their main application is diagonal bracing, or cross bracing, placed between vertically aligned pipes.
Platt's coupler. Some people call it single coupler, mainly for the transverse connection 杄 and ledger, to strengthen the scaffolding plank. These types of couplers are generally considered to be suitable for light activity of scaffolding, because they can't bear the weight of so many.
Of the three main types of couplers mentioned above, it should be noted that only double couplers and rotary couplers are ideal for "load-bearing connections". The sleeve
Coupler or connector pins are used to develop end - to - end connections connecting two scaffold tubes.
Sleeve coupler. These are primarily designed to externally connect two scaffolding pipes at both ends. However, there is a central position of the steel separator to ensure that each tube is inserted equally into the other. They are important where tensioning joints are needed, so they can be used effectively for long bracing and sorting pipes
Scaffold pressure steel sleeve joint design is accurate, because its durability, reliability and best results are highly recommended. Couplers have different specifications that can be customized. Easy to maintain, very durable and reasonably priced.
Toe plate coupler. Couplers are used to hold circuit boards in place and are highly appreciated for their fine surfaces, durability, optimum performance and high quality. These features are durable, cost effective and in perfect shape.
Double coupler. Couplings are praised for their better grip, durability, reliability and long service life. When connected to pipes with rectangular joints, it is easy to operate and supplied at the best rate in the industry. Features: Oriental maintenance, wear - resistant, fine surface.
According to the steel clamp. It is known for its wear resistance, corrosion resistance and longer running time. These clips are available in different specifications to meet customer requirements. Features: wear-resistant, very durable, affordable price.
Given the important role couplers play in falsework construction, it is always wise to know how to get the best support. Knowing the main characteristics of a coupler or clamp will enable you to determine whether the coupler you have chosen is adequate for your needs. Below are some of the main features of the falsework fixture/coupler we provide.
Sturdy and durable. Couplers are designed from hard materials for better support and longer life. Most couplers are made of steel.
Steel is one of the hardest metals in the world. In addition, they can be galvanized to prevent corrosion and corrosion even in harsh atmospheric conditions.
Quality mark. With the diversity of falsework products on the market today, determining the best quality can sometimes be challenging. Supplier's certification is basically a document that displays the specifications of each scaffold coupler, including tags, production dates and user manuals.
Low cost coupler. Cost is another important factor to consider when choosing a scaffold coupler. We understand that budgets often vary from project to project, which means you need a price that matches your funding constraints.
Scaffold coupler needs less maintenance, has perfect machinability, durability and long service life and is welcomed by people. If you need durable, well-tested and reasonably priced scaffold couplers, Nanjing Tuopeng Construction Technology can provide you with the perfect product.
Scaffolding clamps are a kind of mechanical parts that are used for fastening connections and are extremely widely used. This article will introduce the relevant knowledge of scaffolding clamps, hope it will be helpful to everyone.
Features of scaffolding clamp.
scaffolding clamp products owned by the company.
The accumulated sand sticking area of the scaffolding clamps shall not be greater than 100 square millimeters. The surface of the scaffolding clamp is not allowed to have oxide scale.
The scaffolding clamp has strong anti-skid performance. The anti-skid property of the scaffolding clamp ensures the safety effect when using steel pipe. The anti-skid performance of the steel pipe scaffolding clamp is relatively good. It overcomes the shortcomings of the steel pipe in point or line fit, and can effectively reduce the errors and safety accidents in the construction.
The scaffolding clamp has safety advantages, quality advantages, and brand advantages. This kind of scaffolding clamp has good product advantages and can show good advantages during construction. The rental of steel scaffolding saves worry and effort, and the rental income exceeds the rental of inferior iron scaffolding clamps, so the good characteristics of this kind of scaffolding clamps are more widely used in construction.
Nanjing Tuopeng Construction Technology Co., Ltd. is a professional scaffolding manufacturer and exporter of all kinds of safest scaffolding materials in China, with fast delivery time and competitive prices. Customization requirements can be met here. Our products are exported to Canada, the United States, Trinidad and Tobago, New Zealand, Thailand, Malaysia, Colombia, the Middle East, Poland and other European countries. Whether you are a distributor, contractor or factory, you can always find what you need from us.
We can provide frame scaffolds, scaffold connectors, ring lock scaffolds, scaffold tubes, cup lock scaffolds, scaffolding clamps and other products. Among them, the scaffolding clamp includes:right angle clamps, swivel clamps, putlog clamps, sleeve clamps, beam clamps, etc.
If you are satisfied with our company's scaffolding clamps, you can directly order or consult related questions about the scaffolding clamps. We will provide you with the best scaffolding clamp products and services. Looking forward to your visit, I wish you success in your work.
