Q235/Q195 Steel Pallet Diagonal Brace Ringlock Scaffolding

1. Weight: varies to different sizes
2. Tube Size: 48.3 x 2.5 mm
3. Surface finish: HDG, painted

Quantity:
  • TPRSDB000
  • TP
  • 73084000
  • 48.3 x 2.5 mm
  • varies to different sizes
  • HDG
  • Q235

Ringlock scaffolding diagonal brace

1. Ringlock scaffolding diagonal brace is made of 48.3 mm * 2.5 mm tube, two casting brace heads and wedges assembled at two sides, perfectly working with ledgers and standards.
2. Steel grade: Q235 or Q195
3. Surface finish:  HDG, painted, etc.
4. Packing: steel pallet
5. Following sizes are described based on 2m ringlock vertical



Item NO. Ledger length (m) Brace length (m) Weight (kg)
TPRSDB065         0.65m            2.07      7.34
TPRSDB088         0.88m           2.15      7.99
TPRSDB092         0.92m           2.17      8.31
TPRSDB107         1.07m           2.23      8.4
TPRSDB115         1.15m           2.26      8.53
TPRSDB157         1.57m           2.48      9.23
TPRSDB183         1.83m           2.64      9.72
TPRSDB213         2.13m           2.85     10.31
TPRSDB244         2.44m           3.07     11.32
TPRSDB305         3.05m           3.56     12.15

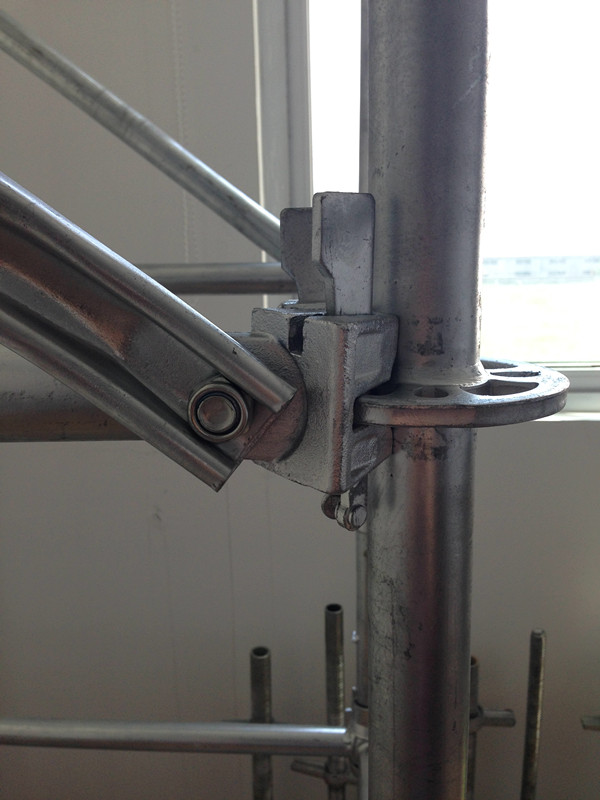

ringlock scaffolding brace 1


ringlock scaffolding brace 1

ringlock scaffolding brace 2
