Scaffolding couplers are critical components in tube and coupler scaffolding systems, serving as the joints that connect scaffold tubes to form stable, load-bearing structures. The scaffolding coupler capacity—the maximum load a coupler can safely support—is a vital factor in ensuring scaffold safety and performance. This article explores whether and how the capacity of scaffolding couplers can be increased through reinforcement, examining structural principles, materials, design innovations, and practical considerations.
Understanding Scaffolding Coupler Capacity
The scaffolding coupler capacity depends on several factors:
- Material strength: Typically, couplers are made from mild steel or forged steel, which provide high tensile strength and durability.
- Design and type: Right angle, swivel, sleeve, and putlog couplers have different load capacities based on their geometry and intended use.
- Installation quality: Proper tightening and alignment affect the coupler's load-bearing ability.
- Load type: Vertical loads, lateral forces, and dynamic impacts influence the effective capacity.

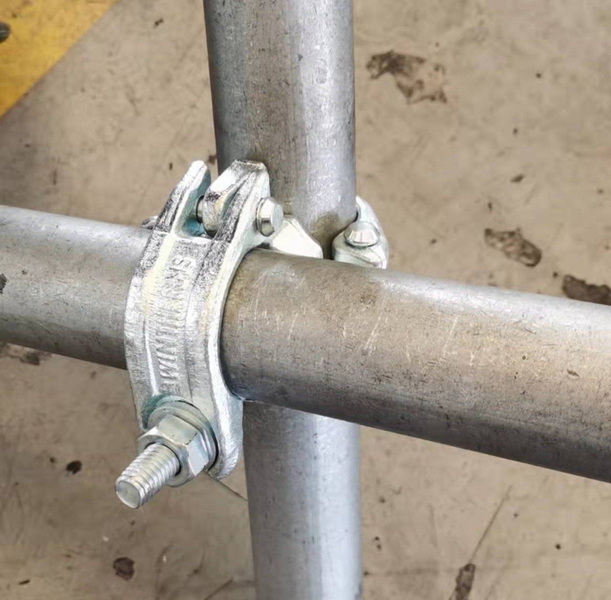

Tube and coupler scaffolding systems rely on these couplers to create rigid frameworks capable of supporting heavy construction loads across multiple stories.
Can Reinforcement Increase Coupler Capacity?
The Concept of Reinforcement in Couplers
Reinforcement refers to methods or modifications that enhance the strength, stiffness, or load distribution of couplers beyond their standard specifications. This can be achieved by:
- Adding structural elements to distribute loads more evenly.
- Using stronger or treated materials.
- Employing design modifications to reduce stress concentrations.
Practical Reinforcement Approaches
1. Use of Drop Forged Couplers with Zinc Coating
Drop forged couplers manufactured with high-quality mild or forged steel and zinc coating resist corrosion and provide superior strength, effectively increasing the coupler capacity compared to standard cast couplers.
2. Structural Fasteners and Template Supports
Innovative scaffolding fasteners that connect multiple L-shaped templates into a cubic cavity structure can transfer loads from a single coupler to surrounding structural elements, creating a combined bearing effect that enhances overall capacity. This method provides auxiliary bearing when a coupler loosens or shifts, effectively reinforcing the system.
3. Multiple Coupler Arrangements
Using multiple couplers in parallel or in strategic configurations can share loads, reducing stress on individual couplers and increasing the effective capacity of the connection.
4. Reinforced Coupler Designs
Patented designs include couplers with enhanced locking mechanisms and latching systems that improve clamping force and reduce slippage, thereby increasing load capacity and safety margins.

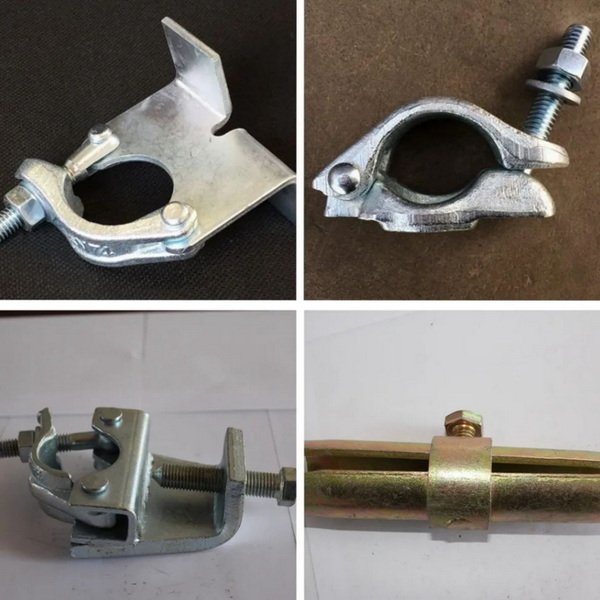

Typical Coupler Types and Load Directions
| Coupler Type | Load Direction Supported | Application |
| Right Angle Coupler | Vertical and horizontal at 90° | Frame corners and supports |
| Swivel Coupler | Variable angles | Diagonal bracing |
| Sleeve Coupler | Axial (end-to-end) | Extending scaffold length |
| Putlog Coupler | Horizontal to vertical | Supporting scaffold boards |
Factors Affecting Reinforced Coupler Capacity
| Factor | Impact on Capacity |
| Material Quality | Higher grade steel and coatings increase strength |
| Coupler Design | Enhanced locking and load distribution improve capacity |
| Installation Accuracy | Proper tightening and alignment prevent failures |
| Load Distribution | Reinforcement spreads load, reducing peak stress |
| Environmental Protection | Corrosion resistance maintains long-term capacity |
Advanced Materials and Treatment Technologies
Modern advancements in metallurgy and surface treatment have opened new possibilities for increasing scaffolding coupler capacity through reinforcement. High-strength alloy steels, thermomechanical processing, and advanced coatings such as galvanization, powder coating, and even nano-ceramic layers significantly improve durability and load resistance.
- High-Strength Alloy Steel: Alloy steels with added elements like chromium, molybdenum, and vanadium offer higher yield and tensile strength, allowing couplers to bear heavier loads safely.
- Heat Treatment: Processes like quenching and tempering refine the microstructure of steel couplers, enhancing toughness and fatigue resistance.
- Corrosion-Resistant Coatings: Zinc galvanization and powder coatings protect couplers from rust and environmental degradation, preserving their load capacity over time.
These material enhancements act as a form of reinforcement at the microscopic level, increasing the coupler's ability to withstand stress without failure.
Design Innovations to Boost Coupler Capacity
Besides material improvements, engineering design plays a crucial role in reinforcing couplers:
- Optimized Geometry: Rounded edges, thicker walls, and ribbed surfaces reduce stress concentrations and improve grip on scaffold tubes.
- Integrated Load Distribution Features: Some couplers incorporate load spreading plates or internal stiffeners that distribute forces more evenly.
- Improved Locking Mechanisms: Ratchet-style or cam-lock systems provide more consistent and higher clamping forces than traditional bolt-tightened couplers.
- Modular Reinforcement Kits: Some manufacturers offer add-on reinforcement kits that attach to existing couplers, increasing their load-bearing area and mechanical stability.
These innovations not only increase scaffolding coupler capacity but also enhance ease of installation and safety.
Installation Best Practices for Reinforced Couplers
Even the best reinforcement cannot compensate for poor installation. To maximize the capacity of reinforced couplers, the following practices are essential:
- Torque Control: Use calibrated torque wrenches to tighten coupler bolts to manufacturer-recommended levels, ensuring optimal clamping force without damaging components.
- Alignment Checks: Ensure tubes are properly aligned before tightening couplers to avoid eccentric loading.
- Periodic Inspection: Regularly inspect couplers for signs of loosening, corrosion, or damage, especially in harsh environments.
- Training: Scaffold erectors must be trained in handling reinforced couplers and understanding their specific installation requirements.
Proper installation ensures the reinforced couplers perform at their designed capacity and maintain scaffold safety.
Case Studies: Reinforced Couplers in Action
Case Study 1: High-Rise Construction Scaffold
A major urban high-rise project required scaffolding capable of supporting heavy loads and resisting strong wind forces. The contractor used drop forged, zinc-coated couplers with integrated load distribution plates. Couplers were installed with torque-controlled tools and inspected weekly. The reinforced couplers allowed for safe scaffolding up to 50 stories, with no reported failures or excessive deformation.
Case Study 2: Industrial Plant Maintenance
In a petrochemical plant, scaffolding needed to withstand corrosive environments and dynamic loads from equipment vibrations. Reinforced couplers made from alloy steel with ceramic coatings were used. The enhanced corrosion resistance and increased mechanical strength extended the scaffold's service life by over 30%, reducing downtime and maintenance costs.
Benefits of Increasing Scaffolding Coupler Capacity
- Enhanced safety: Reduces risk of joint failure under heavy or dynamic loads.
- Greater flexibility: Allows scaffolding to support heavier materials and multiple platforms.
- Longer service life: Reinforced couplers withstand wear and environmental damage better.
- Cost efficiency: Reduces need for over-engineering entire scaffold structures.
- Improved compliance: Meets or exceeds safety regulations and standards.
Challenges and Considerations
- Reinforcement methods must comply with OSHA and local safety standards.
- Over-reinforcement can add weight and complexity.
- Inspection and maintenance are critical to ensure reinforced couplers perform as intended.
- Cost implications of advanced materials and designs.
- Compatibility with existing scaffolding systems must be confirmed to avoid assembly issues.
Conclusion
Increasing scaffolding coupler capacity through reinforcement is feasible and beneficial. Methods such as using high-quality forged materials, employing structural fasteners that distribute loads, implementing innovative coupler designs, and applying advanced materials and coatings can significantly enhance load-bearing capabilities. These reinforcements improve scaffold safety, adaptability, and longevity but must be balanced with compliance to safety standards and practical installation considerations. Ultimately, reinforced couplers contribute to more robust and reliable scaffolding systems suitable for demanding construction environments.
FAQ
1. What is the typical load capacity of standard scaffolding couplers?
Standard couplers can typically support loads ranging from several hundred kilograms to over a ton, depending on type and material. Exact values depend on manufacturer specifications and application.
2. How does reinforcement improve coupler capacity?
Reinforcement improves capacity by enhancing material strength, distributing loads across multiple elements, and reducing stress concentrations, thereby preventing premature failure.
3. Are reinforced couplers compliant with safety standards?
Yes, reinforced couplers must meet OSHA and other regulatory standards. Proper testing and certification ensure compliance and safe usage on construction sites.
4. Can all types of couplers be reinforced?
While most coupler types can benefit from reinforcement, the methods vary. For example, sleeve couplers may be reinforced by stronger materials, while swivel couplers may require design modifications to increase locking strength.
5. What maintenance is required for reinforced couplers?
Regular inspection for corrosion, wear, and tightness is essential. Reinforced couplers may require periodic lubrication and checks to ensure their enhanced features function correctly.
