The Hailo 1 2 3 500 Speed Lock aluminium scaffolding system is a versatile, lightweight, and easy-to-assemble scaffold designed for both indoor and outdoor use. It combines the functionality of a ladder and scaffold, featuring an ingenious one-handed "Speed Lock" mechanism that allows quick and secure assembly. Whether you are a professional tradesperson or a DIY enthusiast, setting up this scaffolding system can be done efficiently in just minutes with the right guidance.
This comprehensive guide will take you through the step-by-step process of assembling the Hailo 1 2 3 500 scaffolding system, supported by detailed images and videos. We will also cover safety tips, maintenance advice, and answer frequently asked questions to ensure you get the most out of your scaffold.
Overview of the Hailo 1 2 3 500 Speed Lock Aluminium Scaffolding System
The Hailo 1 2 3 500 is a multipurpose aluminium scaffold with the following key features:
- Lightweight aluminium construction weighing approximately 30.7 kg.
- Maximum working height of about 4.35 meters.
- Two ladder sections of 12 rungs each (27 x 27 mm rung size).
- One-handed "Speed Lock" quick-lock system for fast assembly.
- Working platform with access hatch measuring 61 x 46 cm.
- Comes with 2 crosspieces and 2 transport castors.
- Step adjustment option for uneven surfaces.
- Maximum load capacity of 150 kg.
- Can be used as a lean-to ladder, double ladder, or small scaffolding unit.
Tools and Components Needed for Assembly
Before starting, ensure you have the following components and tools ready:
- Two ladder sections (each with 12 rungs).
- Working platform with hatch.
- Crosspieces (2 pieces).
- Transport castors (2 pieces).
- Speed Lock mechanism parts (integrated).
- Guardrails and aluminium diagonal struts.
- Locking pins and safety joints.
- Basic tools (wrench or pliers) for tightening if needed.
Step-by-Step Assembly Instructions
Step 1: Prepare the Work Area and Components
- Select a flat, stable surface free of debris.
- Lay out all components and check for any damage.
- Ensure the wheels are unlocked and the Speed Lock mechanism is functioning.
Step 2: Position the Ladder Sections Vertically
- Stand the two ladder sections upright, parallel to each other.
- Ensure the feet are firmly placed on the ground.
- Check that the ladder sections are plumb and aligned.
Step 3: Connect the Ladder Sections Using the Speed Lock System

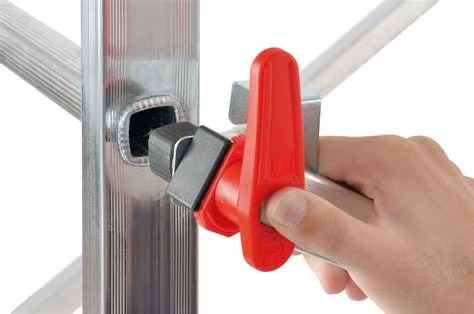

- Engage the one-handed Speed Lock mechanism to connect the two ladder sections.
- The Speed Lock allows quick locking of the ladder sections by pushing the locking pin into place.
- Verify that the locking pins are fully engaged on both sides to secure the connection.
Step 4: Attach the Crosspieces
- Insert the two crosspieces horizontally between the ladder sections at the designated rungs.
- The crosspieces provide lateral stability and form the scaffold's base.
- Secure the crosspieces by locking their ends into the ladder section hooks.
Step 5: Install the Working Platform
- Place the working platform with the access hatch onto the crosspieces.
- Ensure the platform hooks securely onto the ladder sections.
- The hatch allows safe access to the platform from below.
Step 6: Fit the Guardrails and Diagonal Struts
- Attach the four guardrails around the platform edges for fall protection.
- Install the four aluminium diagonal struts to reinforce scaffold stability.
- Secure all connections with locking pins and ensure tight fittings.
Step 7: Install Transport Castors (Optional)
- If mobility is required, fix the two transport castors to the base of the ladder sections.
- Lock the wheels to prevent unintended movement during use.

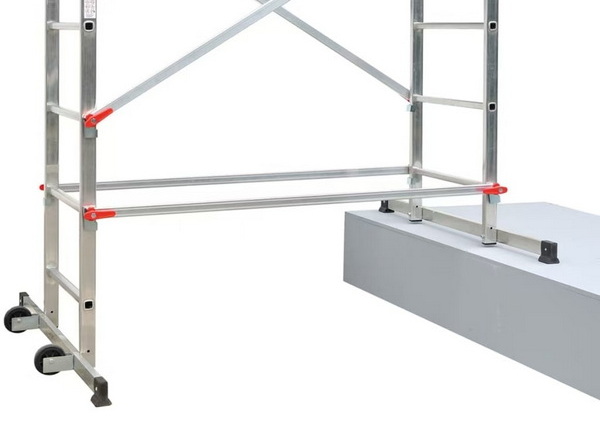

- Adjust the step height as necessary for uneven surfaces.
Step 8: Final Safety Checks
- Confirm that all locking pins and Speed Lock mechanisms are fully engaged.
- Verify that the scaffold is stable and level.
- Ensure guardrails and toe boards are securely in place.
- Test the platform for firmness before climbing.
Tips for Safe and Efficient Use
- Always follow the maximum load capacity of 150 kg.
- Use the scaffold only on flat, stable surfaces or adjust the steps accordingly.
- Never move the scaffold while someone is on the platform.
- Regularly inspect the scaffold components for wear or damage.
- Store the scaffold indoors when not in use to prolong its lifespan.
Maintenance and Spare Parts
Hailo offers a range of spare parts for the 1 2 3 500 system, including screws, nuts, pins, feet, and clamping hooks. Regular maintenance involves:
- Cleaning the aluminium frames to prevent dirt buildup.
- Lubricating moving parts of the Speed Lock mechanism.
- Replacing worn or damaged components promptly.
- Checking the integrity of the platform and guardrails.
Conclusion
The hailo 1 2 3 500 speed lock aluminium scaffolding system offers a fast, safe, and versatile solution for a variety of working heights and applications. Thanks to its innovative Speed Lock mechanism, lightweight aluminium construction, and integrated safety features, it can be assembled quickly-often within minutes-without compromising on stability or safety. Whether you are a professional or a DIY user, following the step-by-step instructions and safety tips outlined in this guide will ensure a smooth setup and reliable performance for your scaffolding needs.
FAQ
1. How long does it typically take to set up the Hailo 1 2 3 500 scaffolding system?
With the Speed Lock mechanism, assembly usually takes less than 15 minutes for someone familiar with the process.
2. Can the scaffold be used on uneven surfaces?
Yes, the system includes step adjustment options and adjustable feet to accommodate uneven ground.
3. What is the maximum load capacity of the Hailo 1 2 3 500 scaffold?
The maximum load capacity is 150 kg, including workers and materials.
4. Is the Speed Lock mechanism safe and secure?
Yes, the Speed Lock is designed for one-handed operation while ensuring a secure lock that prevents accidental release.
5. Are spare parts available if components get damaged or lost?
Yes, Hailo provides a full range of spare parts including locking pins, feet, clamping hooks, and more, which can be ordered online or through authorized dealers.
