Ringlock scaffolding is a modern modular scaffolding system known for its versatility, ease of assembly, and robust safety features. Its unique design, centered around a rosette and wedge connection, allows for quick erection and dismantling, making it highly popular across various industries. This article explores the most common applications of ringlock scaffolding, highlighting its adaptability in construction, industrial, event, maritime, and renewable energy sectors. We will also delve into the technical advantages, safety considerations, and future trends shaping the use of ringlock scaffolding worldwide.
Overview of Ringlock Scaffolding
Ringlock scaffolding consists of standardized components such as vertical standards with rosettes, ledgers, diagonal braces, base jacks, and decking. Made from high-strength galvanized steel, it offers durability, corrosion resistance, and compliance with international safety standards. The system's modular nature allows it to be assembled into complex shapes, including curved and cantilevered structures, making it suitable for diverse environments.
Components of Ringlock Scaffolding
- Standards: Vertical tubes with rosettes welded at regular intervals (usually every 500mm), acting as the main load-bearing elements.
- Ledgers: Horizontal tubes that connect standards, providing lateral support.
- Diagonal Braces: Tubes that brace the scaffold diagonally, enhancing stability.
- Rosettes: Circular discs with multiple slots welded on the standards, allowing ledgers and braces to connect at various angles.
- Wedges: Steel wedges used to lock ledgers and braces into rosettes securely.
- Base Jacks: Adjustable screw jacks used to level the scaffold on uneven ground.
- Decking: Platforms made from steel or aluminum planks, plywood, or other materials, providing working surfaces.
Advantages Over Traditional Scaffolding
- Speed of Assembly: The wedge and rosette connection system allows for fast and tool-minimal assembly compared to tube and clamp scaffolding.
- Flexibility: The rosette design enables connections at multiple angles, accommodating complex structures.
- Safety: The system provides stable platforms and secure locking mechanisms, reducing the risk of accidental disassembly.
- Durability: Hot-dip galvanized steel components resist corrosion, extending service life.
- Reusability: Components are modular and interchangeable, promoting sustainability and cost efficiency.
Common Applications of Ringlock Scaffolding
1. Construction Projects
Ringlock scaffolding is extensively used in various construction projects, including:

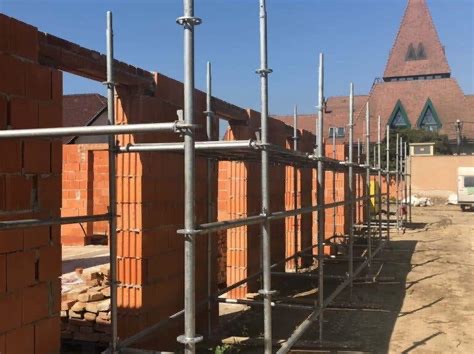

High-rise Buildings
- In high-rise construction, ringlock scaffolding provides safe and stable platforms for workers engaged in concrete pouring, bricklaying, facade installation, and window fitting. The system's ability to be erected vertically with minimal horizontal bracing allows for efficient use of space on crowded urban sites.
Bridges and Viaducts
- Bridges and viaducts often feature complex geometries and require scaffolding that can conform to curved surfaces. Ringlock scaffolding's modular components can be configured into curved and cantilevered shapes, supporting workers and materials during construction and inspection.
Tunnels and Elevated Water Towers
- Tunnel construction and maintenance require scaffolding systems that can adapt to confined and irregular spaces. Ringlock scaffolding's flexibility and compact design make it ideal for these environments. Similarly, elevated water towers benefit from ringlock scaffolding's ability to provide stable working platforms at height.
Temporary Roofs and Canopies
- During construction, temporary roofs or canopies protect workers and materials from adverse weather. Ringlock scaffolding can be quickly assembled into overhead structures, supporting waterproof sheeting or other protective materials.
2. Industrial Applications
The industrial sector benefits significantly from ringlock scaffolding due to its strength and flexibility:

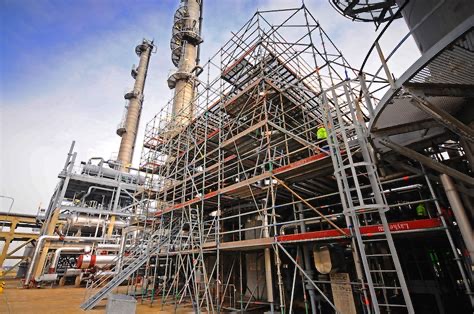

Refineries and Chemical Plants
- Refineries and chemical plants require scaffolding that can safely access complex machinery, piping, and vessels. Ringlock scaffolding's modular design allows it to be erected in confined spaces and customized to fit around obstacles, facilitating installation, inspection, and maintenance activities.
Power Plants and Factories
- Power plants and factories often involve heavy equipment and high elevations. Ringlock scaffolding supports heavy loads and integrates with climbing frames and mobile platforms, enabling safe access to turbines, boilers, and conveyor systems.
Mining and Offshore Platforms
- Mining operations and offshore oil rigs operate in harsh environments where safety and reliability are paramount. Ringlock scaffolding's galvanized steel construction resists corrosion from saltwater and chemicals. It is used to build temporary access towers, platforms, and safety cages for workers.
3. Maritime and Shipbuilding
Shipyards and maritime maintenance heavily rely on ringlock scaffolding for:
Hull Construction and Vessel Repairs
- Ship hulls are large, curved surfaces requiring scaffolding that can adapt to rounded shapes. Ringlock scaffolding's rosette connection system allows for angular adjustments, making it possible to build scaffolds that closely follow the hull contour, facilitating welding, painting, and inspections.
Offshore Scaffolds
- Offshore platforms require scaffolding that can be rapidly erected and dismantled with minimal downtime. Ringlock scaffolding is used to create suspended scaffolds and platforms for work at height on ships and offshore installations.
4. Event and Entertainment Setups
Ringlock scaffolding is widely used in temporary event constructions such as:
Concert Stages and Lighting Rigs
-Concerts and large-scale events require sturdy and customizable platforms for performers, speakers, and technical equipment. Ringlock scaffolding can be assembled into elevated stages, catwalks, and lighting towers with high load capacity and stability.
Grandstands and Viewing Platforms
- Temporary grandstands and viewing platforms for sports events, festivals, and parades must be safe and comfortable for large crowds. Ringlock scaffolding's modularity allows for rapid construction of multi-tiered seating structures.
Background Frames and Exhibition Stands
- Exhibition setups often require quick assembly and dismantling. Ringlock scaffolding can be used to build exhibition booths, signage frames, and temporary walls, providing structural support for banners, lighting, and audiovisual equipment.
5. Emergency and Rescue Operations
Due to its rapid assembly capabilities, ringlock scaffolding is also employed in:
Emergency Rescue Missions
- In situations such as building collapses, fires, or natural disasters, ringlock scaffolding can be quickly erected to create secure platforms for rescue personnel to access difficult-to-reach areas.
Temporary Access Towers
- Emergency responders use ringlock scaffolding to build temporary stair towers and access platforms, facilitating safe evacuation or entry into hazardous zones.
6. Renewable Energy Projects
Renewable energy installations utilize ringlock scaffolding for:
Solar Panel Installation
- Solar farms often span uneven terrain. Ringlock scaffolding provides stable working platforms that can be leveled and adjusted to accommodate ground irregularities, ensuring safe and efficient installation of solar panels.
Wind Turbine Maintenance
- Wind turbines require maintenance at significant heights and in challenging weather conditions. Ringlock scaffolding is used to build climbing towers and platforms around turbine towers, providing secure access for technicians.
Technical Advantages Supporting Diverse Applications
Modularity and Flexibility
Ringlock scaffolding's modular design allows it to be configured into various shapes and sizes. The rosette connection system permits ledgers and braces to be connected at multiple angles (typically 0°, 45°, 90°, and 135°), enabling the construction of curved, cantilevered, and complex scaffold structures.
High Strength and Load Capacity
Manufactured from Q355 galvanized steel, ringlock scaffolding components can withstand heavy loads and harsh environmental conditions. The system is designed to comply with international standards such as EN 12811 and OSHA regulations, ensuring structural integrity and worker safety.
Quick Assembly and Dismantling
The wedge and rosette locking mechanism requires minimal tools—usually just a hammer—to secure connections. This speeds up scaffold erection and dismantling, reducing labor costs and downtime on projects.
Corrosion Resistance and Durability
Hot-dip galvanization protects steel components from rust and corrosion, extending the lifespan of the scaffolding, especially in outdoor, marine, or chemically aggressive environments.
Safety Features
Ringlock scaffolding includes integrated safety features such as guardrails, toe boards, and secure decking systems. The stable platform design minimizes sway and vibration, enhancing worker confidence and reducing accident risk.
Detailed Case Studies of Ringlock Scaffolding Applications
Case Study 1: High-Rise Residential Tower Construction
A 40-story residential tower in a metropolitan area required scaffolding for facade installation and window fitting. The construction team chose ringlock scaffolding due to its fast assembly and ability to be adjusted to the building's setbacks and balconies. The modular system allowed safe access at varying heights and complex angles, reducing project time by 20% compared to traditional scaffolding.
Case Study 2: Offshore Oil Platform Maintenance
An offshore oil platform needed scaffolding to support maintenance work on its upper decks and piping systems. The harsh marine environment required corrosion-resistant materials. Ringlock scaffolding's galvanized steel components were ideal, and its modularity allowed the scaffold to be erected quickly during a limited maintenance window, ensuring minimal operational downtime.
Case Study 3: Large-Scale Music Festival Stage
For a major music festival hosting thousands of attendees, ringlock scaffolding was used to build the main stage, lighting towers, and VIP viewing platforms. The system's flexibility enabled the construction of complex structures that met load requirements for heavy lighting and sound equipment while ensuring audience safety.
Installation and Safety Best Practices
Site Assessment and Planning
Before erecting ringlock scaffolding, a thorough site assessment is essential. This includes evaluating ground conditions, load requirements, environmental factors, and access points. Proper planning ensures scaffold stability and compliance with safety regulations.
Foundation and Base Preparation
A solid foundation is critical. Base plates and adjustable jacks must be placed on firm, level ground or suitable supports to prevent settlement or tilting.
Assembly Procedures
- Begin by erecting vertical standards and securing them with base jacks.
- Connect ledgers and diagonal braces using the rosette and wedge system.
- Install decking and guardrails progressively as the scaffold rises.
- Conduct regular inspections during assembly to ensure all connections are secure.
Safety Inspections and Maintenance
Routine inspections should be conducted daily and after adverse weather events. Look for loose wedges, damaged components, or signs of corrosion. Maintenance should be performed promptly to address any issues.
Integration with Digital Technologies
The future of ringlock scaffolding includes integration with Building Information Modeling (BIM) and augmented reality (AR) to plan and visualize scaffold erection digitally, improving accuracy and safety.
Lightweight Materials and Sustainability
Research into lightweight alloys and composite materials aims to reduce scaffold weight without compromising strength, improving transport efficiency and worker ergonomics. Additionally, sustainable manufacturing and recycling practices are gaining importance.
Automation and Robotics
Robotic systems for scaffold assembly and inspection are emerging, potentially reducing human risk and increasing efficiency in hazardous environments.
Conclusion
Ringlock scaffolding stands out as a highly versatile and efficient scaffolding system, widely adopted across multiple industries. Its modular design, strength, and safety features make it suitable for construction, industrial maintenance, maritime work, event setups, emergency operations, and renewable energy projects. The system's adaptability to complex shapes and environments, combined with quick assembly and dismantling, ensures it remains a preferred choice for scaffolding applications worldwide. As technology advances, ringlock scaffolding will continue to evolve, offering even greater safety, efficiency, and sustainability.
FAQ
1. What makes ringlock scaffolding different from traditional scaffolding systems?
Ringlock scaffolding uses a unique rosette and wedge connection system, allowing for faster assembly and greater flexibility in design compared to traditional tube and clamp scaffolding.
2. Can ringlock scaffolding be used on uneven terrain?
Yes, the system can be erected on uneven slopes or stepped foundations, making it adaptable to various site conditions.
3. Is ringlock scaffolding suitable for heavy load-bearing applications?
Absolutely. Made from high-strength steel and designed with robust connections, ringlock scaffolding can support heavy loads, suitable for industrial and construction projects.
4. How does ringlock scaffolding enhance worker safety?
The system meets international safety standards, provides stable platforms, and allows for the attachment of personal protective equipment, reducing the risk of accidents.
5. What industries commonly use ringlock scaffolding?
Industries include construction, industrial maintenance, shipbuilding, event management, emergency rescue, and renewable energy sectors.
