In scaffolding construction, the choice of clamps plays a pivotal role in ensuring the safety and stability of the structure. Among various types of scaffolding clamps, the scaffolding universal clamp is often touted for its versatility. This article explores whether universal clamps can be effectively used for both vertical and horizontal joints, analyzing their design, applications, advantages, limitations, and compliance with industry standards.
What Is a Scaffolding Universal Clamp?
A scaffolding universal clamp is a type of coupler designed to connect scaffold tubes or beams in a flexible manner. Unlike fixed clamps that connect tubes strictly at 90 degrees, universal clamps can grip tubes in various orientations, making them adaptable for different scaffold configurations.
Key Features:
- Weight: Approximately 0.45 kg per clamp, lightweight for ease of handling.
- Material: Made from high-strength steel plates with 8.8 class bolts for durability and strength.
- Finish: Available in E-galvanized, hot-dip galvanized, zinc-plated, or electroplated finishes for corrosion resistance.
- Compatibility: Suitable for a range of scaffolding systems including Kwikstage, Cuplock, Ringlock, and frame shoring.
Design and Mechanism of Universal Clamps

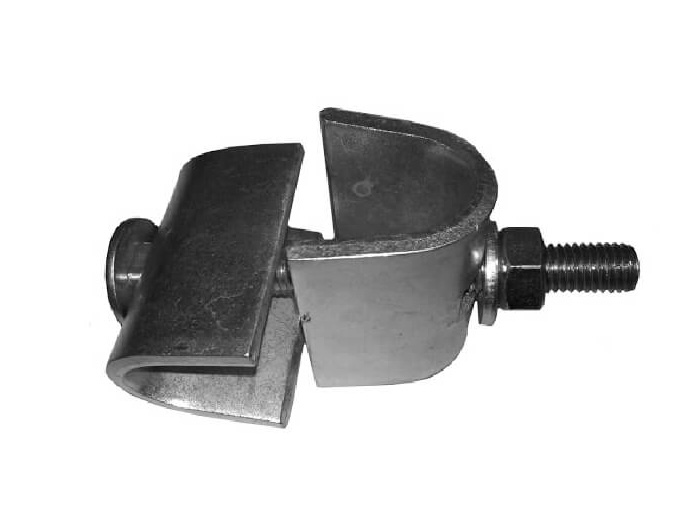

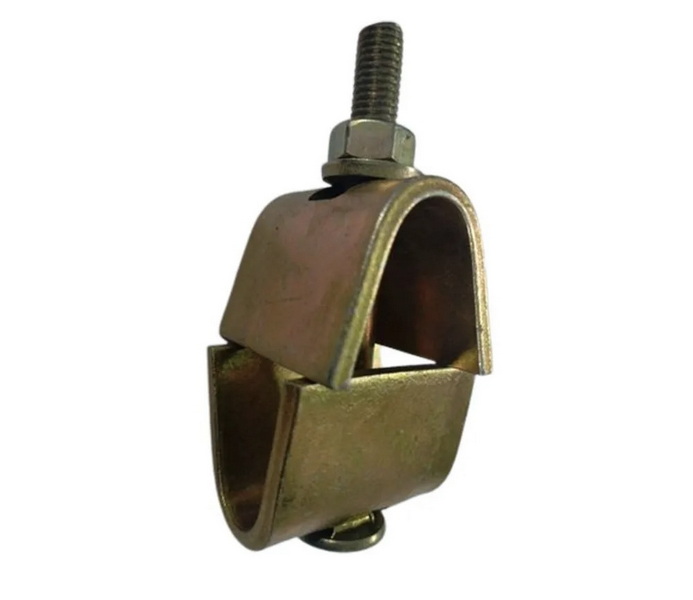

Universal clamps consist of two 'U'-shaped steel plates connected by a bolt and nut assembly. This design allows the clamp to grip two tubes or beams at various angles and positions, providing flexibility in scaffold assembly.
- The gap between the two 'U' clips is typically around 50mm, accommodating beams or tubes with varying distances.
- The bolt assembly (usually M12 x 100) ensures a tight grip and prevents rotation or slippage under load.
- The clamp's forged or pressed steel construction ensures high load-bearing capacity and durability.
Can Universal Clamps Be Used for Both Vertical and Horizontal Joints?
Yes, Universal Clamps Are Designed for Both Vertical and Horizontal Connections
Universal clamps are explicitly designed to be versatile and can be used to connect scaffold tubes or beams in both vertical and horizontal orientations. This makes them highly valuable in complex scaffolding structures where tubes need to be joined at various angles and positions.
- Vertical Joints: Universal clamps can secure vertical standards or uprights to horizontal ledgers or braces.
- Horizontal Joints: They can connect horizontal ledgers to other horizontal members or to formwork walers in construction.
- Non-Standard Angles: The clamp's design allows it to accommodate non-right-angle connections, enhancing scaffold adaptability.
Practical Applications
- Fixing aluminum beams to formwork walers in concrete shuttering.
- Connecting scaffold tubes in frame shoring and support systems.
- Securing beams in event staging and temporary structures.
- Use in various scaffolding systems including Ringlock, Cuplock, and Twistlock.
Advantages of Using Universal Clamps for Vertical and Horizontal Joints
| Advantage | Description |
| Versatility | Suitable for multiple scaffold systems and joint orientations. |
| Lightweight | Approximately 0.45 kg, making handling and installation easier. |
| High Strength | Made from high-strength steel plates with quality bolts, ensuring durability. |
| Corrosion Resistance | Available in galvanized and electroplated finishes for long service life. |
| Compliance | Manufactured according to BS 1139, EN 74, and other international standards. |
| Cost-Effectiveness | Can replace multiple clamp types, reducing inventory and simplifying logistics. |
Limitations and Considerations
While universal clamps offer flexibility, there are some considerations:
- Load Capacity: Universal clamps may have lower load ratings compared to specialized right-angle or swivel clamps. Ensure they meet the load requirements of the specific joint.
- Precision Fit: For critical structural points, fixed clamps may provide more precise alignment and higher stability.
- Installation: Proper tightening and installation are crucial to prevent slippage, especially in non-orthogonal joints.
- Not Always Suitable for Heavy-Duty Bracing: For heavy diagonal bracing, swivel clamps might be more appropriate.
Technical Specifications of Universal Clamps
| Parameter | Specification |
| Weight | 0.45 kg |
| Bolt Class | 8.8 Class |
| Material | High-strength steel (S235) |
| Finish | E-galvanized, hot-dip galvanized, electroplated |
| Compatible Tube Sizes | Typically 48.3 mm OD tubes |
| Standard Compliance | BS 1139, EN 74, CE certification |
| Package | Usually sold in packs of 50 |
Installation and Usage Guidelines
- Positioning: Align tubes or beams within the clamp's jaws ensuring proper fit.
- Tightening: Use appropriate torque on bolts to secure the clamp firmly without over-tightening.
- Inspection: Regularly inspect clamps for corrosion, wear, or damage.
- Maintenance: Lubricate bolts to prevent seizing and facilitate disassembly.
Comparison with Other Scaffold Clamps
| Clamp Type | Primary Use | Weight (kg) | Load Capacity (kN) | Flexibility |
| Universal Clamp | Vertical & horizontal joints | 0.45 | Moderate | High |
| Right-Angle Clamp | Fixed 90° joints | 1.8 - 2.2 | High | Low |
| Swivel Clamp | Variable angle joints | 2.0 - 3.0 | High | Very High |
| Sleeve Clamp | End-to-end tube connections | ~1.0 | Moderate | Low (linear only) |
| Beam Clamp | Attaching tubes to beams | ~2.0 | High | Low |
Universal clamps provide a balance of weight, flexibility, and strength suitable for many scaffold configurations but may not replace specialized clamps in all scenarios.
Industry Standards and Compliance
Universal clamps are manufactured to meet stringent international standards:
- BS 1139: British standard for scaffolding couplers.
- EN 74: European standard specifying performance requirements.
- CE Certification: Compliance with European safety directives.
- ISO Quality Management: Ensures consistent manufacturing quality.
Compliance ensures universal clamps are safe for use in both vertical and horizontal scaffold joints.
Case Studies: Universal Clamps in Action
Case Study 1: Formwork Scaffolding in Commercial Construction
A construction company used universal clamps to connect aluminum beams to formwork walers, ensuring quick assembly and reliable support during concrete pouring. The clamps' ability to secure both vertical and horizontal elements reduced assembly time by 25%.
Case Study 2: Temporary Event Structures
Event organizers employed universal clamps to build modular stages with complex geometries. The clamps' versatility allowed rapid configuration changes, supporting both vertical supports and horizontal platforms safely.
Maintenance and Safety Tips
- Routine Checks: Inspect clamps for cracks, corrosion, and bolt integrity.
- Proper Storage: Keep clamps dry and clean to prevent rust.
- Use Correct Tools: Torque wrenches ensure proper bolt tightening.
- Training: Ensure scaffolders are trained in proper clamp usage.
- Replacement: Replace clamps showing signs of wear or damage immediately.
Environmental Impact and Sustainability
Manufacturers increasingly focus on sustainable production of scaffolding clamps. Universal clamps made from recycled steel and coated with environmentally friendly finishes contribute to reducing the carbon footprint. Their durability also minimizes waste by extending the service life of scaffolding systems.
Conclusion
Scaffolding universal clamps are highly versatile fittings capable of securing both vertical and horizontal joints in scaffolding systems. Their lightweight design, strength, and compliance with international standards make them suitable for a wide range of applications, from formwork to event staging. While they may not replace specialized clamps in every scenario, their adaptability and ease of use make them an invaluable component in scaffold construction. Proper selection, installation, and maintenance are key to maximizing their performance and ensuring scaffold safety.
FAQ
1. Can scaffolding universal clamps be used for both vertical and horizontal joints?
Yes, universal clamps are designed to securely connect scaffold tubes in both vertical and horizontal orientations.
2. How strong are universal clamps compared to fixed right-angle clamps?
Universal clamps are generally lighter and offer moderate load capacity, whereas fixed right-angle clamps provide higher load capacity but less flexibility.
3. Are universal clamps compatible with all scaffold systems?
They are compatible with most common systems such as Kwikstage, Cuplock, Ringlock, and frame shoring.
4. What maintenance is required for scaffolding universal clamps?
Regular inspection, proper tightening, lubrication of bolts, and storage in dry conditions are essential for longevity.
5. Do universal clamps meet international safety standards?
Yes, reputable universal clamps comply with standards like BS 1139, EN 74, and CE certification.
