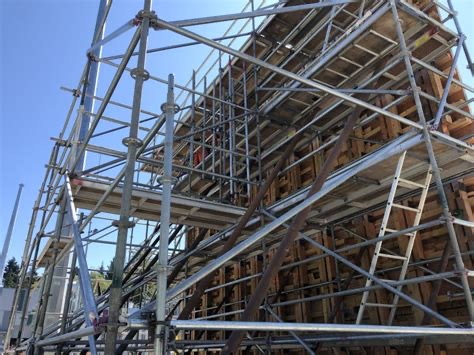

Tube and clamp scaffolding is renowned for its adaptability, strength, and the ability to create complex structures for construction, maintenance, and industrial projects. A common question among scaffolders and site managers is: Can you mix different types of clamps in one scaffold system? This article explores the technical, safety, and regulatory aspects of mixing various types of clamp for scaffolding.
Understanding the Types of Clamp for Scaffolding
Before addressing whether different clamps can be mixed, it's crucial to understand the primary types of clamp for scaffolding and their specific functions.
1. Right Angle Clamp (Double Coupler)
- Purpose: Connects two scaffolding pipes at a 90-degree angle.
- Use Case: Essential for creating vertical and horizontal connections in frame structures.
2. Swivel Clamp
- Purpose: Allows pipes to connect at any angle, featuring a 360-degree ball joint.
- Use Case: Used for diagonal bracing and non-standard angles, enabling complex scaffold configurations.
3. Sleeve Clamp (Joint Pin Coupler)
- Purpose: Joins two pipes end-to-end.
- Use Case: Extends the length of scaffolding pipes for longer spans.
4. Putlog Clamp (Single Coupler)
- Purpose: Connects a putlog or transom to a ledger.
- Use Case: Common in bricklayer scaffolds and lightweight applications.
5. Board Retaining Clamp
- Purpose: Holds scaffold boards in place to prevent movement.
- Use Case: Increases safety by securing walking platforms.
6. Adjustable Scaffolding Clamp
- Purpose: Can be adjusted for different angles and tube sizes.
- Use Case: Used when tubes meet at non-standard angles or for temporary adjustments.
7. Socket Scaffolding Clamp
- Purpose: Provides excellent load-bearing capacity with a female socket welded to the tube.
- Use Case: For heavy-duty applications and harsh environments.
8. Beam and Flange Clamps
- Purpose: Secure tubes to beams or girders.
- Use Case: Adds support and stability, especially in industrial settings.
The Role of Clamps in Scaffold Safety and Stability

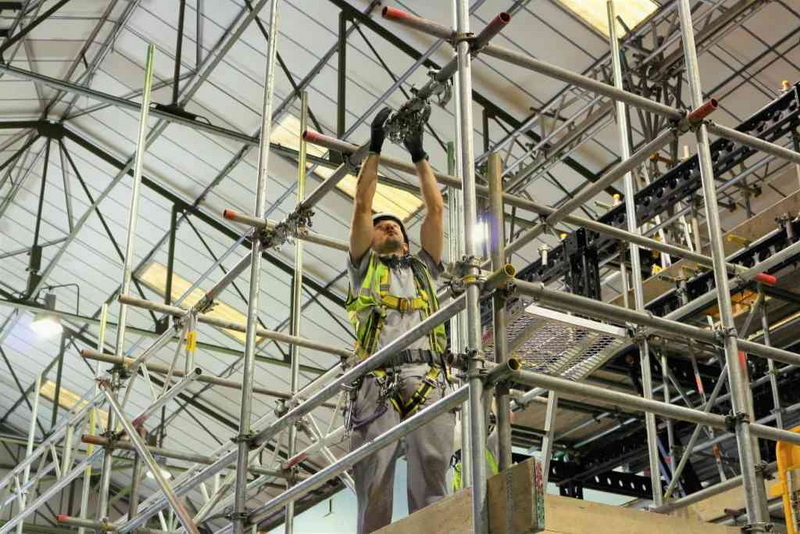

Clamps, also known as couplers, are the backbone of tube and clamp scaffolding systems. They maintain the integrity of the structure by securely joining pipes, ensuring the scaffold can bear loads and withstand external forces. The correct selection and installation of the right type of clamp for scaffolding are crucial for:
- Structural stability
- Worker safety
- Compliance with industry standards
Is It Safe to Mix Different Types of Clamps in One Scaffold System?
General Practice
In most tube and clamp scaffolding systems, different types of clamps are intentionally used together-for example, right angle clamps for main joints, swivel clamps for bracing, and sleeve clamps for extensions. This is not only acceptable but necessary for creating strong, adaptable, and safe scaffolds.
Mixing Clamps from Different Manufacturers or Materials
However, mixing clamps of different designs, materials, or from different manufacturers is a more complex issue:
- Compatibility: Not all clamps are designed to fit all tube sizes or materials. For instance, steel clamps may crush aluminum tubes, compromising strength and safety.
- Strength and Deflection: Different clamps may have varying load capacities and deflection characteristics. Mixing incompatible types can reduce the scaffold's overall strength and stability.
- Manufacturer Guidance: Industry best practice and safety standards strongly recommend not mixing clamps from different manufacturers unless a competent person (such as an engineer) has confirmed their compatibility in terms of size, strength, and performance.
- Regulatory Compliance: Many safety authorities (e.g., Safe Work Australia, NASC) require that mixing only occurs if the combined system is proven not to reduce strength, stability, or safety.
Risks of Improper Mixing
1. Structural Weakness
Mixing incompatible clamps can lead to uneven load distribution, increased risk of slippage, or even catastrophic failure of the scaffold.
2. Reduced Safety
Clamps with different torque or tightening requirements may loosen under load or vibration, creating hazards for workers.
3. Non-Compliance
Using unapproved combinations may violate local or international safety codes, resulting in fines, work stoppages, or legal liability.
4. Maintenance and Inspection Challenges
Mixed systems can complicate inspection routines, as different clamps may age or wear at different rates, making it harder to spot issues.
When Is Mixing Different Types of Clamp for Scaffolding Acceptable?
1. Functional Mixing (Within a Single Manufacturer's System)
It is standard practice to use multiple types of clamp for scaffolding-right angle, swivel, sleeve, etc.-within a single, compatible system to achieve the required geometry and strength.
2. Mixing by Professional Design
If a competent person (engineer or scaffold designer) has reviewed and approved the combination, mixing clamps from different systems or materials may be permitted, provided all safety, strength, and compatibility criteria are met.
3. Manufacturer-Approved Mixes
Some manufacturers design their clamps to be compatible with those of other brands. Always check documentation and seek written confirmation.
Best Practices for Using Different Types of Clamp for Scaffolding
- Always follow manufacturer's instructions and recommendations.
- Do not mix clamps of different materials (e.g., steel and aluminum) unless specifically engineered for compatibility.
- Ensure all clamps are of the correct size and load rating for the tubes used.
- Perform regular inspections to check for wear, corrosion, or loosening.
- Document all components used and maintain records for compliance and safety audits.
- Train workers on the specific types of clamp for scaffolding in use on your site.
Regulatory Guidance and Industry Standards
- NASC TG20:13 (UK): Recommends using only compatible, certified fittings and warns against mixing unless compatibility is proven.
- Safe Work Australia: Prohibits mixing scaffolding from different manufacturers unless compatibility is confirmed by a competent person.
- BS EN 74 / BS1139: Sets standards for scaffold couplers and fittings, specifying requirements for strength, compatibility, and testing.
Inspection and Maintenance for Mixed Clamp Systems
A critical aspect of using different types of clamp for scaffolding is ensuring ongoing safety through inspection and maintenance:
- Routine Checks: Inspect all clamps for signs of wear, corrosion, or deformation before each use.
- Torque Verification: Ensure clamps are tightened to the manufacturer's recommended torque to prevent loosening.
- Replacement Policy: Replace any clamps that show signs of damage or do not meet current standards.
- Record Keeping: Maintain detailed logs of inspections, replacements, and any incidents involving clamp failure.
Training and Worker Competency
Proper training is essential when using multiple types of clamp for scaffolding. Workers should be able to:
- Identify each type of clamp and understand its correct application.
- Recognize signs of incompatibility or improper installation.
- Follow site-specific safety procedures and manufacturer guidelines.
- Respond appropriately to any issues that arise during scaffold use.
Innovations and Future Trends in Scaffolding Clamps
The construction industry continues to innovate in the design and materials of scaffolding clamps. Some trends include:
- High-strength alloys: New materials offer lighter weight with equal or greater strength, but may require specific compatibility checks.
- Quick-release and locking clamps: These speed up assembly and disassembly but must be used in accordance with system guidelines.
- Integrated safety features: Some clamps now include wear indicators or anti-tamper mechanisms.
As new types of clamp for scaffolding are introduced, it is even more important to follow manufacturer recommendations and avoid unapproved mixing.
Conclusion
Mixing different types of clamp for scaffolding-such as right angle, swivel, sleeve, and putlog clamps-is not only acceptable but essential for building safe, flexible, and robust scaffold systems. However, mixing clamps from different manufacturers, materials, or with incompatible specifications is risky and should only be done under the guidance of a qualified engineer and in compliance with relevant standards. Always prioritize safety, follow best practices, and consult with manufacturers or experts when in doubt.
FAQ
1. What are the main types of clamp for scaffolding?
The main types include right angle (double) clamps, swivel clamps, sleeve clamps, putlog (single) clamps, board retaining clamps, adjustable clamps, socket clamps, and beam/flange clamps. Each serves a specific function in scaffold assembly.
2. Is it safe to mix clamps from different manufacturers?
No, unless a competent person confirms compatibility in terms of size, material, and strength. Mixing incompatible clamps can compromise safety and violate regulations.
3. Can I use different types of clamp for scaffolding in one system?
Yes, using various clamp types (right angle, swivel, etc.) is standard practice, as long as they are compatible and meet the scaffold's design and safety requirements.
4. What are the risks of mixing incompatible clamps?
Risks include structural weakness, reduced safety, non-compliance with regulations, and inspection challenges. Always ensure compatibility and seek professional advice if unsure.
5. How do I ensure my scaffold system is safe when using different types of clamp for scaffolding?
Follow manufacturer instructions, use only compatible clamps, conduct regular inspections, and consult a qualified engineer or scaffold designer when mixing components from different sources.
