Scaffolding couplers are the backbone of safe and flexible scaffold systems, connecting tubes and ensuring stability across a wide range of construction scenarios. Among the many types available globally, the British Standard scaffolding coupler—often referenced by standards such as BS 1139 and EN 74—stands out for its rigorous specifications, reliability, and widespread adoption. But what exactly sets the British Standard coupler apart from Italian, German, American, and other international types? This in-depth article explores the defining features, manufacturing standards, performance, and applications of British Standard scaffolding couplers, contrasting them with other coupler types used worldwide.

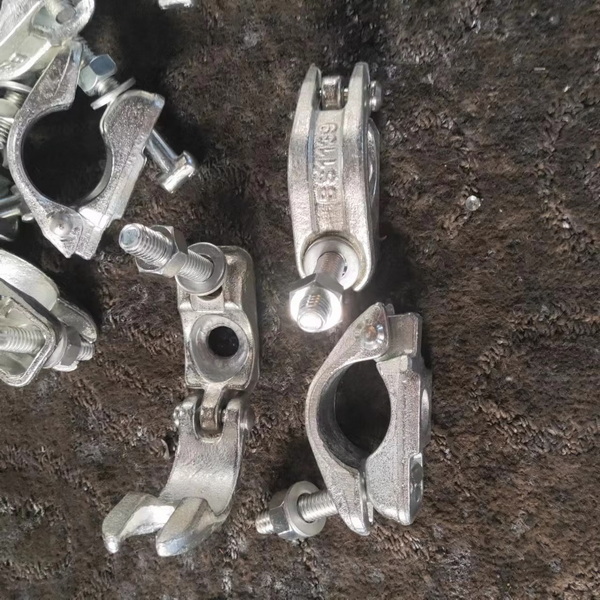

What Are British Standard Scaffolding Couplers?
British Standard scaffolding couplers are fittings designed and manufactured to meet the stringent requirements of British Standards, primarily BS 1139 and EN 74. These standards govern the materials, dimensions, strength, and testing procedures for couplers, ensuring a high level of safety and consistency across construction projects.
Key Features：
- Material: Typically made from drop-forged or pressed carbon steel (Q235), with hot-dip galvanized or electro-galvanized finishes for corrosion resistance.
- Compatibility: Designed for 48.3mm diameter scaffold tubes, the international standard for tube and coupler scaffolding.
- Types: Includes double (right-angle), swivel, sleeve, putlog, board retaining, and beam couplers.
- Load Capacity: Engineered for high load-bearing, with double couplers often exceeding 30 kN and swivel couplers over 20 kN.
- Certification: Must comply with BS 1139, EN 74, and often additional certifications like ISO9001 and CE.
Types of British Standard Scaffolding Couplers
| Coupler Type | Description & Use | Standard | Typical Load Capacity |
| Double Coupler | Connects tubes at 90° (right angle); main structural joints | BS1139/EN74 | >30 kN |
| Swivel Coupler | Connects tubes at any angle; used for bracing | BS1139/EN74 | >20 kN |
| Sleeve Coupler | Joins tubes end-to-end; extends tube length | BS1139/EN74 | 6.25 kN (slip limit) |
| Putlog Coupler | Attaches putlogs to ledgers; supports platforms | BS1139/EN74 | - |
| Board Retaining | Secures scaffold boards to prevent movement | BS1139 | - |
| Beam Coupler | Connects tubes to beams/girders; anchors scaffold to structures | BS1139/EN74 | - |
| Joint Pin | Connects tubes internally (inner joint) | BS1139/EN74 | - |
How Do British Standard Couplers Differ From Other Types?
1. Manufacturing Standards and Quality Control
- British Standard scaffolding couplers are manufactured to BS 1139 and EN 74, which specify strict requirements for materials, dimensions, mechanical strength, and corrosion resistance.
- Other types (e.g., Italian, German, American) may follow their own national standards, which can differ in tube size compatibility, material grade, and testing protocols.
- British Standard couplers undergo rigorous multi-stage quality checks, including production line, warehousing, and pre-shipment inspections.
2. Tube Compatibility and Sizing
- BS couplers are designed for 48.3mm OD tubes, the global standard for tube and coupler scaffolding.
- Other regions may use different tube diameters (e.g., 48.6mm in Korea/Japan, 42.7mm or 60mm in some frame systems, 89mm in certain US applications).
- This ensures British Standard couplers offer broad international compatibility, especially for export markets.
3. Load Capacity and Safety Margins
- BS couplers are engineered for high load-bearing, with double couplers exceeding 30 kN and meeting or surpassing EN74 Class B standards for heavy-duty use.
- Some non-BS couplers may not meet these high load or slip resistance requirements, especially in markets with less stringent regulations.
- British Standard couplers are preferred for critical or high-risk applications, such as industrial scaffolding, power plants, and oil & gas facilities.

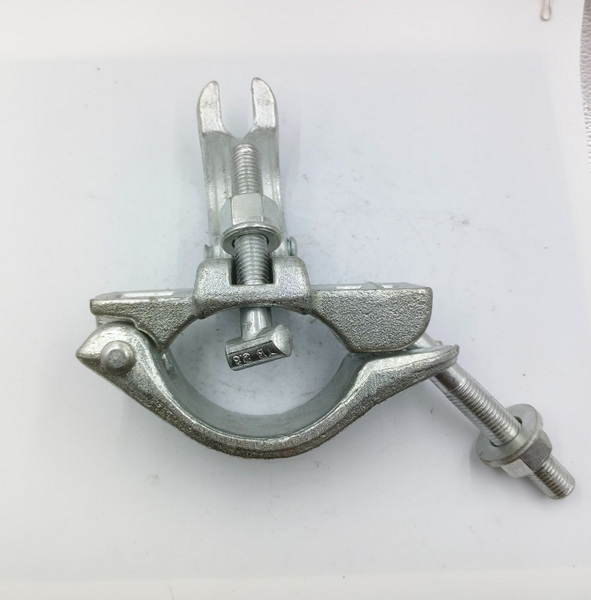

4. Design and Construction
- Drop-forged and pressed steel designs are both used in BS couplers, with drop-forged types offering superior strength and durability.
- Features such as anti-slip ribs, high-strength bolts (8.8 grade), and captive nuts are common in British Standard designs for enhanced safety and ease of use.
- Some international types may use different forging or pressing techniques, or vary in bolt/nut sizes and finishes.
5. Corrosion Resistance and Surface Treatment
- BS couplers are hot-dip galvanized or electro-galvanized for maximum corrosion resistance, suitable for harsh environments.
- Some non-BS couplers may have less robust surface treatments, affecting longevity and safety in exposed conditions.
- Zinc plating and gold galvanizing are common for British Standard couplers, ensuring extended service life.
Comparison Table: British Standard vs. Other Types
| Feature/Aspect | British Standard Scaffolding Coupler | Italian/German/American Types |
| Main Standard | BS 1139, EN 74 | Local (DIN, ANSI, JIS, etc.) |
| Tube Diameter | 48.3mm | 48.6mm, 42.7mm, 60mm, 89mm, etc. |
| Material | Q235 Carbon Steel, Drop Forged/Pressed | Varies (may use lower grade steel) |
| Surface Treatment | Hot-dip/Electro-galvanized, Gold | Varies (may be less robust) |
| Load Capacity | Double: >30kN, Swivel: >20kN | Often lower, varies by type |
| Design Features | Anti-slip, high-strength bolts, captive nuts | Varies, not always present |
| Certification | BS1139, EN74, ISO, CE | Local/none |
| Quality Control | Multi-stage, strict | Varies |
| Application | Global, heavy-duty, export | Regional, lighter duty |
Why Are British Standard Couplers Preferred in Many Projects?
- Global Acceptance: Their compliance with international standards makes them suitable for projects worldwide.
- Safety: High load ratings and rigorous testing ensure safety in critical and high-risk environments.
- Durability: Superior materials and finishes extend service life, reducing maintenance and replacement costs.
- Versatility: Compatible with a wide range of tube sizes and scaffolding systems, including tube-and-coupler, ringlock, cuplock, and quicklock systems.
- Ease of Use: Features like captive nuts and anti-slip surfaces simplify assembly and improve reliability.
Applications of British Standard Scaffolding Couplers
- Industrial Construction: Oil & gas, power plants, refineries, where heavy-duty, reliable connections are essential.
- Commercial & Civil Projects: High-rise buildings, bridges, and infrastructure requiring compliance with international safety standards.
- Temporary Structures: Event stages, ramps, sheds, and stands that demand flexible, strong, and reusable connections.
- Export Markets: British Standard couplers are widely used in Europe, the Middle East, Africa, Australia, and the Americas due to their global compatibility.
Manufacturing and Quality Assurance
British Standard scaffolding couplers are subject to rigorous quality control at multiple stages:
- Material Inspection: Only certified Q235 carbon steel or equivalent is used.
- Process Control: Drop forging and pressing are closely monitored for consistency and strength.
- Surface Treatment: Galvanizing is tested for thickness and adhesion to ensure corrosion protection.
- Load Testing: Each batch is tested for slip, distortion, and load capacity, often witnessed by third-party inspectors.
- Certification: Products are marked with batch numbers and certifications for traceability.
Maintenance, Reusability, and Cost Efficiency
- Durability: High-quality materials and finishes mean British Standard scaffolding couplers can be used repeatedly over many projects.
- Maintenance: Regular inspection for wear, corrosion, and deformation is recommended, but robust design minimizes failure risk.
- Cost Efficiency: Though initially more expensive, their longevity, safety, and compatibility reduce long-term costs.
- Sustainability: The reusability of British Standard couplers reduces waste and environmental impact, aligning with green building practices.
Innovations in British Standard Scaffolding Couplers
- Enhanced Anti-Slip Features: Newer designs incorporate ribbed surfaces and improved bolt/nut locking systems for additional safety.
- Lighter, Stronger Materials: Research into advanced alloys and forging techniques continues to improve strength-to-weight ratios.
- Digital Traceability: Some manufacturers now offer QR-coded couplers for tracking usage, maintenance, and certification status.
- Integrated Safety Features: Modern British Standard scaffolding couplers may include visual indicators for correct tightening, reducing the risk of human error during assembly.
Case Study: British Standard Couplers in International Projects
Consider a major infrastructure project in the Middle East, where extreme temperatures, sand, and humidity are daily challenges. The contractor chose British Standard scaffolding couplers for their proven corrosion resistance, high load capacity, and compliance with both local and international codes. Over the two-year project, the couplers demonstrated minimal wear, required little maintenance, and provided the flexibility needed for frequent scaffold reconfiguration. The result was not only a safer work environment but also significant cost savings due to reduced downtime and replacement needs.
Environmental and Economic Impact
- Reduced Waste: The long service life and reusability of British Standard scaffolding couplers contribute to less frequent replacement and lower environmental impact.
- Global Supply Chain: Their widespread acceptance means easier sourcing, standardized logistics, and smoother international project management.
- Worker Safety: Enhanced safety features and consistent quality control reduce the risk of accidents, protecting workers and minimizing liability for contractors.
Conclusion
British Standard scaffolding couplers set the global benchmark for safety, reliability, and versatility in the scaffolding industry. Their strict adherence to BS 1139 and EN 74 standards ensures high load capacity, superior corrosion resistance, and compatibility with the most widely used tube sizes. Compared to Italian, German, American, and other regional types, British Standard couplers deliver unmatched performance, making them the preferred choice for critical construction, industrial, and export projects. Their robust design, rigorous quality control, and adaptability across scaffolding systems guarantee both safety and cost-efficiency for contractors and site managers worldwide.
FAQ
1. What is the main difference between British Standard scaffolding couplers and other types?
British Standard scaffolding couplers are manufactured to strict BS 1139 and EN 74 standards, ensuring higher load capacity, better corrosion resistance, and compatibility with 48.3mm tubes, unlike some other types that may use different standards or tube sizes.
2. Are British Standard couplers compatible with non-British scaffolding systems?
Yes, they are designed for 48.3mm tubes, which are widely used internationally, making them compatible with many global scaffolding systems, including tube-and-coupler, ringlock, and cuplock.
3. How can I identify a genuine British Standard scaffolding coupler?
Look for markings indicating compliance with BS 1139 or EN 74, manufacturer's name, batch number, and certifications like ISO9001 or CE. Documentation and test certificates should also be available from reputable suppliers.
4. Can British Standard couplers be reused?
Yes, thanks to their robust materials and finishes, British Standard couplers are designed for repeated use, provided they are regularly inspected and maintained.
5. What types of British Standard couplers are most commonly used?
The most common are double (right-angle), swivel, sleeve, putlog, board retaining, and beam couplers, all designed for specific connections and load requirements in scaffolding structures.
