A horse scaffold system, also known as a trestle scaffold, is a simple, lightweight, and versatile type of scaffolding commonly used in construction, maintenance, and various other applications. These systems are particularly useful for low-to-moderate height tasks where frequent movement is required. Think of interior painting, light carpentry work, or even setting up displays for an event. However, their stability and safety depend heavily on proper installation. A poorly installed horse scaffold system can lead to serious accidents, so understanding the proper techniques is crucial. This article provides a comprehensive guide on how to install a horse scaffold system for maximum stability, ensuring a safe and efficient working environment. We will cover everything from selecting the right components to performing routine safety checks.
Introduction to Horse Scaffold Systems
A horse scaffold system consists of horizontal platforms supported by "horses" or trestles. These horses are typically made of wood or metal and provide a stable base for the working platform. The simplicity of the design allows for quick assembly and disassembly, making it a popular choice for tasks such as painting, plastering, and general repairs. The lightweight nature of the components also makes them easy to transport and maneuver around a job site. However, due to their relatively low height capacity, horse scaffold systems are best suited for projects that do not require reaching great heights. They're ideal for situations where you need a stable platform that can be easily moved to different locations without the complexity of larger scaffolding systems.
Key Components of a Horse Scaffold System
Understanding the components of a horse scaffold system is crucial for proper installation. The main parts include:

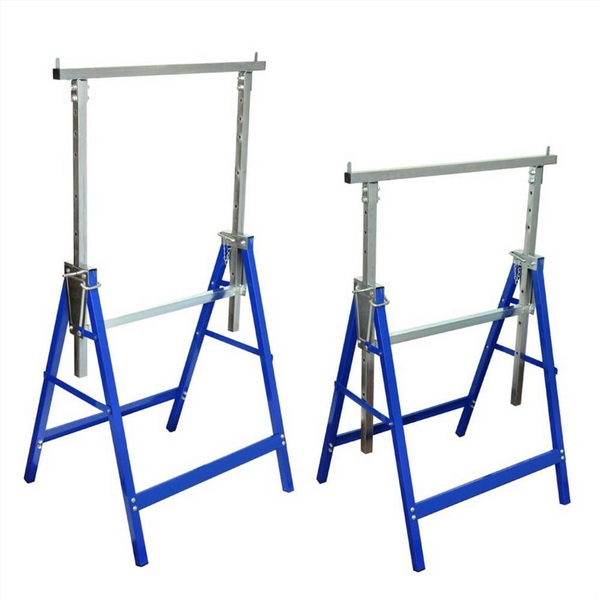

- Horses (Trestles): These are the primary support structures that hold the platform. They are typically A-shaped or H-shaped and made of wood or metal. The design and material of the horses directly impact the system's stability and load-bearing capacity. Metal horses are generally more durable and can handle heavier loads than wooden ones.

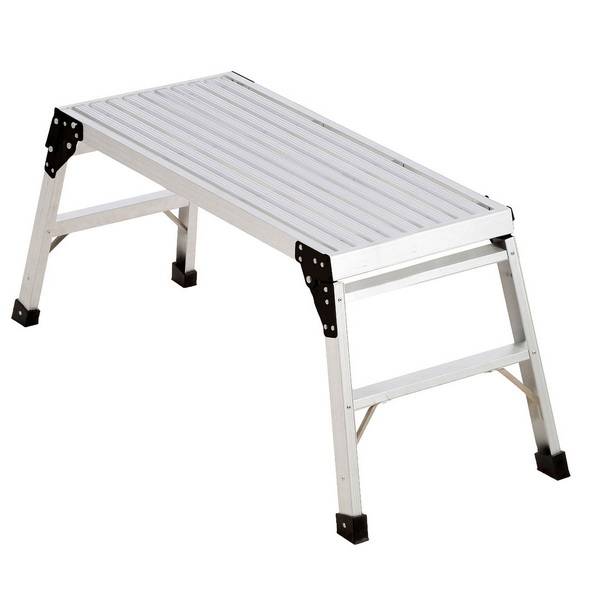

- Platforms (Planks): These are the horizontal surfaces on which workers stand. They should be made of sturdy, load-bearing material, such as wood or metal. The planks should be of sufficient width to provide a comfortable and safe working surface. Always use scaffold-grade planks that are specifically designed for this purpose.
- Braces: These are used to provide additional stability to the horses, preventing them from buckling or swaying. Braces are essential for maintaining the structural integrity of the system, especially when working on uneven surfaces or with heavy loads.
- Guardrails: These are safety barriers installed along the edges of the platform to prevent falls. Guardrails are a mandatory safety feature for any scaffold system that is more than a few feet off the ground.
- Toe Boards: These are installed at the base of the platform to prevent tools and materials from falling off. Toe boards are another crucial safety feature that helps to prevent accidents caused by falling objects.
Planning and Preparation
Before beginning the installation, proper planning and preparation are essential for ensuring a stable and safe horse scaffold system:
1. Assess the Work Area: Evaluate the ground conditions to ensure they are level and stable. Remove any debris or obstructions that could interfere with the scaffolding. Look for any potential hazards, such as underground utilities or overhead power lines.
2. Inspect the Components: Check all horses, planks, and accessories for any signs of damage, such as cracks, bends, or corrosion. Do not use any components that are compromised. Replace any damaged or worn parts immediately to prevent accidents.
3. Determine the Required Height: Calculate the necessary height of the platform to ensure it is suitable for the task at hand. Horse scaffold systems are typically limited to a maximum height of 10 feet (approximately 3 meters). Consider the reach of the worker and the height of the work surface when determining the appropriate scaffold height.
4. Gather Necessary Tools and Equipment: Ensure you have all the required tools, such as levels, measuring tapes, wrenches, and safety gear, including hard hats, safety glasses, and non-slip footwear. Also, have a copy of the manufacturer's instructions and any relevant safety regulations on hand.
Step-by-Step Installation Guide
Follow these steps to properly install a horse scaffold system for maximum stability:
1. Position the Horses: Place the horses on a level and stable surface, ensuring they are spaced appropriately. The spacing between horses should not exceed the manufacturer's recommendations, typically around 6-10 feet (approximately 1.8-3 meters), depending on the load requirements. Ensure the horses are aligned correctly and that they are not rocking or wobbling.
2. Level the Horses: Use a level to ensure that all horses are at the same height. If the ground is uneven, use shims or leveling jacks to adjust the height of individual horses. Avoid using blocking or extensions to raise the height of the horses, as this can compromise stability. Shim Material should be non-compressible, and ample size.
3. Secure the Braces: Install braces between the legs of the horses to provide additional stability. Ensure that the braces are securely fastened and that they prevent lateral movement. Tighten all bolts and fasteners to the manufacturer's specifications.
4. Install the Platforms: Place the planks on top of the horses, ensuring they are properly supported and that they extend at least 6 inches (approximately 15 centimeters) beyond the supports on each end. Overlap planks to provide a continuous, stable surface. Use a minimum of two planks side-by-side to provide a wider and more stable working platform.
5. Secure the Platforms: Fasten the planks to the horses to prevent them from shifting or dislodging. Use clamps, screws, or other appropriate fasteners to secure the platforms. Ensure that the fasteners are of sufficient strength and that they are properly installed.
6. Install Guardrails and Toe Boards: Install guardrails along all open sides of the platform to prevent falls. The guardrails should be approximately 42 inches (approximately 1 meter) high. Install toe boards at the base of the platform to prevent tools and materials from falling off. Guardrails and toe boards are often required by safety regulations and should never be omitted.
7. Inspect the System: Once the installation is complete, thoroughly inspect the entire system to ensure that all components are properly installed and secured. Check for any signs of instability or potential hazards. Perform a visual inspection and a physical check to ensure that the system is solid and secure.
Maintaining Stability During Use
Even with proper installation, a horse scaffold system requires ongoing attention to maintain its stability and safety:
- Avoid Overloading: Never exceed the maximum load capacity of the system. Be mindful of the weight of workers, tools, and materials on the platform.
- Distribute Weight Evenly: Spread the weight evenly across the platform to prevent localized stress and potential instability.
- Check for Movement: Periodically check for any signs of movement or shifting of the horses or planks. Re-tighten any loose fasteners and make any necessary adjustments.
- Keep the Platform Clean: Remove any debris, spills, or obstructions from the platform to prevent slips, trips, and falls.
Safety Considerations
Safety should always be the top priority when working with horse scaffold systems. Keep the following safety considerations in mind:
- Load Capacity: Never exceed the maximum load capacity of the scaffold system. Distribute weight evenly across the platform to prevent overloading. Consult the manufacturer's specifications for the load capacity of your specific system.
- Fall Protection: Always use appropriate fall protection measures, such as guardrails, safety nets, or personal fall arrest systems, when working at heights. Fall protection is essential for preventing serious injuries or fatalities in the event of a fall.
- Weather Conditions: Avoid using horse scaffold systems in windy or adverse weather conditions. Wind can create instability and increase the risk of accidents. Rain, snow, and ice can make the platform slippery and hazardous.
- Electrical Hazards: Be aware of any nearby electrical hazards, such as power lines, and take precautions to avoid contact. Maintain a safe distance from power lines and use insulated tools when working near electricity.
- Training: Ensure that all workers are properly trained on the safe use and installation of horse scaffold systems. Training should cover topics such as hazard recognition, proper installation techniques, fall protection, and emergency procedures.
Conclusion
Proper installation of a horse scaffold system is crucial for ensuring the safety and stability of the working platform. By following the steps outlined in this guide and adhering to all safety precautions, you can create a stable and efficient working environment. Always prioritize safety and regularly inspect the system to identify and address any potential hazards. With careful planning, proper installation, and ongoing maintenance, a horse scaffold system can be a valuable and safe tool for a variety of tasks.
FAQ
1. What is a horse scaffold system and what are its primary uses?
A horse scaffold system, also known as a trestle scaffold, is a lightweight and versatile scaffolding type consisting of horizontal platforms supported by horses or trestles. It is primarily used for low-to-moderate height tasks such as painting, plastering, and general repairs. It is popular because it is easy to set up, dismantle and transport.
2. How do you ensure the stability of a horse scaffold system on uneven ground?
To ensure stability on uneven ground, use shims or leveling jacks to adjust the height of individual horses. Avoid using blocking or extensions, as these can compromise the overall stability of the system. Ensure shims are made of non-compressible material.
3. What safety measures should be taken when using a horse scaffold system?
Safety measures include never exceeding the maximum load capacity, using appropriate fall protection (guardrails, safety nets, or personal fall arrest systems), avoiding use in adverse weather conditions, being aware of electrical hazards, and ensuring all workers are properly trained.
4. How often should a horse scaffold system be inspected?
A horse scaffold system should be inspected daily and before each use to ensure that all components are properly installed and secured, and to identify any signs of damage or potential hazards. Regular inspection help mitigate any risks of accidents.
5. What is the maximum recommended height for a horse scaffold system?
The maximum recommended height for a horse scaffold system is typically 10 feet (approximately 3 meters). Exceeding this height can compromise the stability of the system. For tasks exceeding 10 feet, it's best to consider other more suitable scaffolding options.
