Scaffolding is a backbone of modern construction, providing workers with safe, stable platforms to perform tasks at height. Central to the strength and flexibility of these structures is the scaffolding coupler-a small but critical component that connects scaffold tubes, ensuring the entire system's integrity. Among the various types, the 1 scaffolding coupler (commonly referring to the right-angle or double coupler) is the most widely used for forming strong, load-bearing joints at 90-degree angles.
Introduction to 1 Scaffolding Coupler

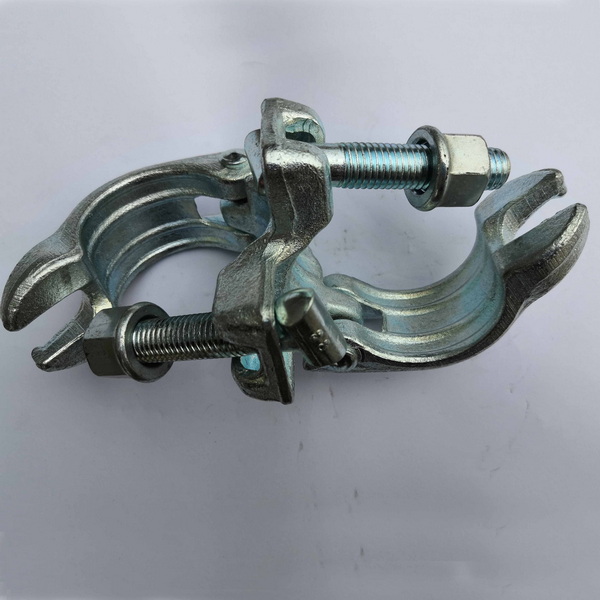

A 1 scaffolding coupler-most often a right-angle or double coupler-is a robust, forged steel clamp designed to connect two scaffold tubes at a 90-degree angle. This connection forms the basic grid structure of most tube-and-coupler scaffolds, providing the rigidity and load-bearing capacity required for safe, multi-level platforms.
Types of Scaffolding Couplers
While the focus here is on the 1 scaffolding coupler, understanding the broader family of couplers enhances safe and effective assembly:
| Coupler Type | Description & Use |
| Right-Angle Coupler | Connects tubes at 90°; primary load-bearing joints |
| Swivel Coupler | Connects tubes at any angle; used for diagonal bracing |
| Sleeve Coupler | Joins tubes end-to-end for length extension |
| Putlog Coupler | Attaches tubes to structural surfaces (e.g., walls) |
| Board Retaining Clamp | Secures scaffold boards in position |

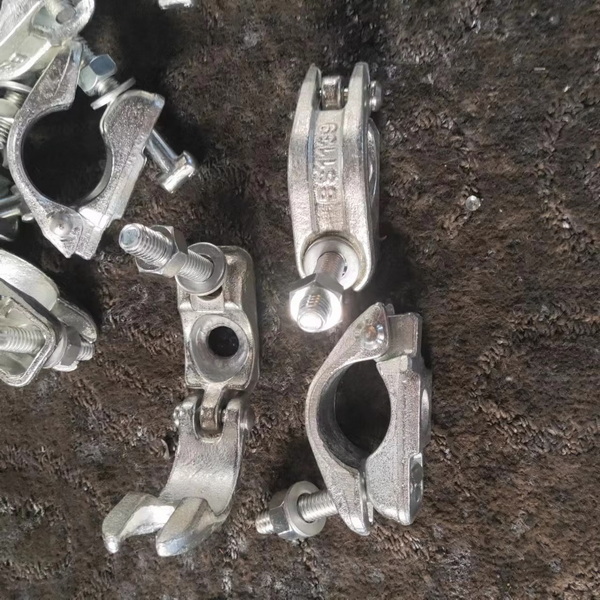

A 1 scaffolding coupler typically includes:
- Two half-clamps: Each wraps around a scaffold tube.
- T-bolts and nuts: For tightening and securing the connection.
- Washer and locking mechanism: To prevent loosening under load.
- Material: Usually drop-forged steel, hot-dip galvanized for corrosion resistance.
Standard Specifications:
- Fits tubes with 48.3mm outer diameter (industry standard)
- Tightening nuts suit a 23mm scaffold spanner
- Working load limit: Up to 6.25 kN at 54 Nm tightening torque
- Complies with EN74 and other international standards
1. Site Preparation
- Ensure the ground is level, stable, and free from debris.
- Mark out the scaffold footprint and check for hazards (e.g., power lines, underground utilities).
2. Base Assembly
- Place base plates or sole boards under each scaffold standard to distribute weight evenly and prevent sinking.
- Assemble the first vertical tubes (standards) and secure them with 1 scaffolding couplers at the base.
3. Installing Ledgers and Transoms
- Attach horizontal tubes (ledgers) to the standards using right-angle couplers.
- Use a spirit level to ensure horizontality and plumbness.
- Tighten all couplers with a scaffold spanner to the manufacturer's recommended torque.
- Use swivel couplers for diagonal braces to prevent sway and enhance stability.
- Secure all bracing as close to the base as possible.
5. Platform and Guardrail Installation
- Place scaffold boards on the ledgers and secure with board retaining couplers.
- Install guardrails and toeboards for fall protection.
6. Final Checks
- Inspect all connections for tightness and security.
- Confirm the scaffold is level and stable.
- Ensure all safety features (guardrails, toeboards) are in place.
Advanced Techniques for Complex Structures
1. Cantilevered Scaffolds
When working on structures where support from below is limited, cantilevered scaffolds are necessary. 1 scaffolding couplers play a vital role in connecting the main scaffold frame to cantilever beams. Ensure all couplers are double-checked for tightness and that load calculations are meticulously followed.
2. Bridging and Spanning Gaps
In situations where scaffolds need to span over doorways or obstacles, use 1 scaffolding couplers to secure transoms and ledgers firmly. Always add extra bracing and check the stability after assembly.
3. Suspended Scaffolds
For suspended scaffolds, 1 scaffolding couplers are used to connect horizontal tubes to suspension points. Only trained professionals should assemble these, and all couplers must be inspected for wear and proper torque.
Key Safety Practices
- Inspection: Check all couplers for damage, rust, or wear before use.
- Correct Tools: Use only the recommended scaffold spanner; avoid makeshift tools.
- Load Limits: Never exceed the specified working load of the coupler or scaffold bay.
- Training: Ensure all personnel are trained in scaffold assembly and safety protocols.
- PPE: Wear hard hats, harnesses, gloves, and non-slip footwear at all times.
Common Mistakes to Avoid
- Incorrect Installation: Failing to fully tighten couplers or using the wrong type for the connection.
- Overloading: Placing excessive weight on the scaffold, risking collapse.
- Mixing Components: Using incompatible couplers or tubes from different manufacturers.
- Neglecting Maintenance: Not inspecting or replacing worn/damaged couplers.
- Daily Visual Checks: Look for cracks, deformation, or corrosion on all couplers before each shift.
- Regular Tightening: Ensure all nuts and bolts remain tight throughout the project.
- Scheduled Inspections: Conduct thorough inspections at regular intervals, especially after adverse weather or impact events.
- Replacement: Immediately replace any coupler showing signs of damage or excessive wear.
- Lubrication: Occasionally lubricate the threads of bolts to prevent seizing and ensure ease of tightening.
1. International Standards
- EN74 (Europe): Specifies requirements for right-angle, swivel, and sleeve couplers.
- BS 1139 (UK): Covers tube and fitting scaffolds, including 1 scaffolding coupler requirements.
- OSHA (USA): Mandates scaffold safety, including coupler strength and inspection.
2. Manufacturer Guidelines
Always follow the manufacturer's instructions for assembly, tightening torque, and maintenance. Using couplers that do not meet recognized standards can result in unsafe structures and legal penalties.
3. Certification and Traceability
- Use only certified 1 scaffolding couplers with clear markings for traceability.
- Maintain records of inspections and replacements for safety audits.
Conclusion
The 1 scaffolding coupler is a fundamental component in safe, efficient scaffold assembly. When used correctly, it forms the backbone of the scaffold's structure, ensuring stability and load-bearing capacity. Adhering to best practices-thorough inspection, correct installation, regular maintenance, and proper training-significantly reduces the risk of accidents and structural failures. Always use certified couplers, follow manufacturer guidelines, and prioritize safety on every job site.
FAQ
1. What is the main function of a 1 scaffolding coupler?
A 1 scaffolding coupler (right-angle or double coupler) securely connects two scaffold tubes at a 90-degree angle, forming the essential framework for safe and stable scaffolding structures.
2. How do I ensure the coupler is properly tightened?
Use a standard scaffold spanner (23mm) to tighten the nuts to the manufacturer's recommended torque (typically 54 Nm for right-angle couplers). Always check for secure, movement-free connections.
3. How often should 1 scaffolding couplers be inspected?
Inspect all couplers before each use and at regular intervals during the project. Look for signs of rust, deformation, or wear, and replace any coupler that is compromised.
4. Can I mix different types of couplers in one scaffold?
Yes, different couplers (right-angle, swivel, sleeve) are often used together to meet structural needs. However, always ensure compatibility and compliance with safety standards.
5. What are the most common mistakes when using 1 scaffolding couplers?
Common mistakes include incorrect installation (not fully tightened), exceeding load limits, mixing incompatible components, and neglecting regular inspection and maintenance.
