The Werner aluminum pump jack scaffolding system is a game-changer for professionals and DIYers alike who require a safe, efficient, and adjustable platform for working at heights. Whether you're installing siding, painting, replacing windows, or tackling other exterior projects, this system offers a blend of portability, strength, and ease of use that traditional scaffolding and ladders often can't match.
Introduction to the Werner Aluminum Pump Jack Scaffolding System
The Werner aluminum pump jack scaffolding system is a supported scaffolding solution that utilizes a pump jack mechanism to raise and lower a work platform along vertical aluminum poles. Its modular, lightweight design makes it ideal for a range of residential and light commercial construction tasks, especially where frequent repositioning or height adjustments are necessary.
Key Components and Features
The system's effectiveness lies in its well-engineered components, each designed for safety, durability, and ease of use.
Main Components
- Aluminum Pump Jack Poles: Made from extruded aluminum, available in lengths up to 24 feet and can be spliced for maximum heights of 50 feet.
- Pump Jack Mechanism: The heart of the system, allowing for smooth vertical movement of the platform via a manual crank or foot pedal.
- Work Platform (Plank/Stage): Provides a stable surface for workers, available in various lengths (12–24 ft) and widths (12–24 in), with slip-resistant decking.
- Support Braces: Rigid or foldable steel braces stabilize the poles against the work structure.
- Guardrails and Safety Nets: Essential for fall protection, meeting OSHA requirements.
- Pole Feet and Anchors: Ensure stable contact with the ground or surface.
Notable Features
- Lightweight Aluminum Construction: Easy to transport and assemble.
- Modular Design: Compatible with most major aluminum pump jack systems.
- Quick-Connect Mechanisms: Fast attachment and detachment of components.
- Weather Resistance: Powder-coated steel parts prevent rust and corrosion.
- High Load Capacity: Stages rated for up to 500 lbs, suitable for two workers.
Step-by-Step Setup Guide
Proper setup is crucial for safety and efficiency. Here's a detailed walkthrough of assembling the Werner aluminum pump jack scaffolding system:
1. Equipment Checklist
- Pump jacks
- Aluminum poles (6', 12', 18', 24', or spliced for up to 50')
- Work platforms (planks/stages)
- Support braces (foldable or rigid)
- Guardrails and/or safety nets
- Pole feet or anchors
- Safety gear (harness, fall protection)
2. Inspect Components
- Check all parts for damage, dents, or missing hardware.
- Ensure aluminum poles are straight and undamaged.
3. Position and Secure Poles
- Place poles at the correct distance apart (based on platform length).
- Erect on firm, level ground—use plywood under pole feet on soil for stability.
- Attach support braces to the structure using at least four screws per brace (minimum 1/4" x 3").

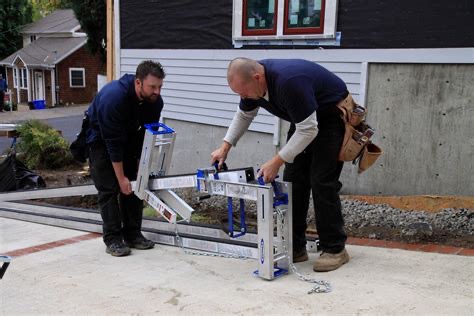

4. Attach Pump Jack Mechanisms
- Slide the pump jack onto the pole with the platform support facing down.
- Ensure the rubber pad on the pole is positioned for maximum grip.
- Secure with cotter pins and ensure foot levers are properly engaged.
5. Install Work Platform
- Place planks/stages between the pump jacks, ensuring they are level.
- Secure with safety locks or pins to prevent movement.
- Attach guardrails and toe boards as required.
6. Test the System
- Slowly raise and lower the platform to ensure smooth operation.
- Check for any instability or shifting—adjust braces or pole positions as needed.
7. Final Safety Checks
- Make sure all fasteners, braces, and connections are secure.
- Confirm that guardrails, safety nets, and fall protection are in place.
How the Pump Jack Mechanism Works
The unique feature of the Werner aluminum pump jack scaffolding system is its pump jack mechanism, which allows for easy, incremental height adjustments.

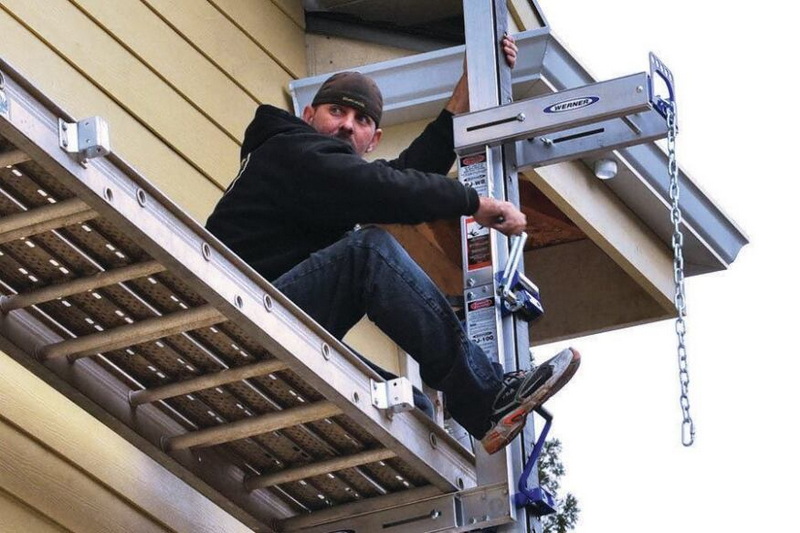

Operating the Pump Jack
- Raising the Platform: Use the crank handle or foot pedal to incrementally lift the platform. Both pump jacks (one at each pole) should be operated in tandem to keep the platform level.
- Lowering the Platform: Disengage the safety lock, then use the crank handle to gently lower the platform. Always maintain control and ensure the platform descends evenly.
- Locking Mechanisms: Safety brackets automatically lock the platform in place at each increment, preventing accidental drops.
Adjustable Heights
The system's design allows for working heights from as low as 6 feet up to a maximum of 50 feet (with properly spliced poles and bracing).
Safety Considerations and Best Practices
Safety is paramount when working at heights. The Werner aluminum pump jack scaffolding system includes several built-in safety features, but users must follow best practices:
- Fall Protection: OSHA requires vertical fall protection at heights of 10 feet or more. Use guardrails, safety nets, and personal fall arrest systems.
- Platform Distance: Keep the platform within 14 inches of the work wall to minimize fall risk.
- Stability: Always use base plates or shims on uneven ground. Never set up on roof surfaces or on top of other scaffolds.
- Weather: Avoid use in high winds or inclement weather. Secure additional bracing if necessary.
- Training: Ensure all users are trained in setup, operation, and emergency procedures.
Advantages Over Other Scaffolding Systems
Feature | Werner Aluminum Pump Jack System | Traditional Scaffolding | Ladders |
Height Adjustability | Yes (smooth, incremental) | Fixed or modular | Limited |
Portability | High (lightweight, modular) | Bulky, heavy | High |
Setup Time | Fast | Moderate to slow | Fast |
Platform Size | Wide, continuous | Modular planks | Narrow rung |
Worker Capacity | Up to 2 (500 lbs rated) | Varies | 1 |
Safety Features | Guardrails, nets, locks | Guardrails, nets | Minimal |
Ideal Uses | Siding, painting, windows | Large projects | Small tasks |
Additional Benefits and Applications
The Werner aluminum pump jack scaffolding system not only excels in portability and ease of use but also offers exceptional durability and weather resistance, making it suitable for various outdoor conditions. Its modular design allows customization to fit unique project requirements, enhancing productivity and safety. This system is widely used in residential construction, commercial renovations, and maintenance tasks, proving its versatility across different industries.
Enhanced Safety Features
In addition to standard guardrails and safety nets, the Werner system incorporates ergonomic design elements that reduce user fatigue and improve operational control. The smooth pump jack mechanism minimizes sudden movements, lowering the risk of accidents. Regular maintenance and inspection are recommended to ensure all components function optimally, further enhancing safety on the job site.
Conclusion
The Werner aluminum pump jack scaffolding system stands out for its blend of safety, versatility, and ease of use. Its lightweight, modular construction allows for quick setup and repositioning, making it ideal for siding, painting, and other exterior construction tasks. With robust safety features, high load capacities, and smooth height adjustments, it's a reliable choice for professionals and serious DIYers alike. Always follow manufacturer instructions and safety guidelines to ensure a safe working environment.
FAQ
1. What is the maximum height for the Werner aluminum pump jack scaffolding system?
The system can reach a maximum height of 50 feet when using properly spliced aluminum poles and adequate bracing.
2. How many workers can use the platform at once?
Most Werner aluminum stages are rated for up to 500 lbs, allowing two workers to use the platform simultaneously, provided weight is evenly distributed.
3. What safety equipment is required when using this system?
OSHA requires vertical fall protection at heights of 10 feet or higher. Use guardrails, safety nets, and personal fall arrest systems, and always follow local regulations.
4. Can the Werner aluminum pump jack scaffolding system be used on uneven ground?
Yes, but you must use base plates or shims to level the system and ensure stability. Avoid setting up on surfaces that cannot support the load.
5. What are the main advantages over traditional scaffolding or ladders?
The Werner aluminum pump jack system offers faster setup, easier height adjustment, greater portability, and a continuous work platform, making it safer and more efficient for many exterior projects.
