The JCB Motorized Scaffolding System encompassing electric scissor lifts, telescopic booms, and modular access platforms-has redefined efficiency and safety in construction, industrial maintenance, and facility management. Designed with operator ease in mind, these systems integrate advanced controls, automation, and ergonomic features to simplify complex tasks at height.
Introduction to JCB Motorized Scaffolding Systems

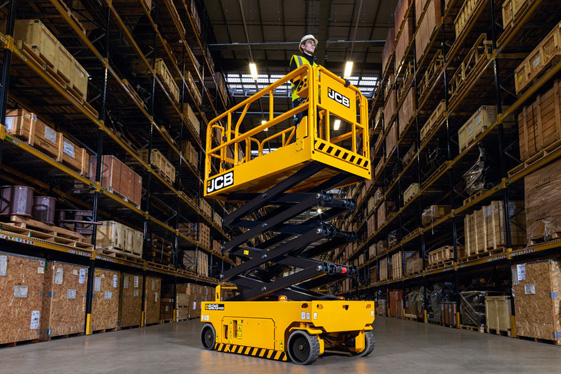

JCB's motorized scaffolding systems, such as the S4046E Electric Scissor Lift and T450 Telescopic Boom Lift, are engineered for rapid deployment, intuitive operation, and adaptability across diverse job sites. These systems prioritize:
- Modularity: Components like ring-lock verticals and trusses enable quick assembly without specialized tools.
- Motorized Mobility: Electric drives and heavy-duty casters allow smooth repositioning without manual effort.
- Compliance: Meets OSHA, ANSI, and CE standards for load capacity, fall protection, and stability.
Key Features Enhancing Ease of Use
1. Intuitive Control Systems
- Dual-Sided Control Cradles: Operators can manage the platform from the basket or ground using waterproof joysticks with tactile feedback.
- Touchscreen Interfaces: 7-inch color displays provide real-time data on battery levels, load limits, and error codes, with multi-language support.
- Auto-Leveling: Hydraulic sensors adjust the platform to maintain stability on slopes up to 5°, even during elevation.
2. Rapid Setup and Mobility
- Self-Deploying Outriggers: Automatically extend and retract in under 30 seconds, reducing setup time by 60% compared to manual systems.
- Omni-Directional Casters: Locking polyurethane wheels (8-inch diameter) enable 360° movement on rough terrain.
- Lightweight Aluminum Construction: Reduces setup labor and allows transport in standard utility vans.
3. Safety Automation
- Pothole Protection: Prevents elevation until outriggers are fully deployed, eliminating tip-over risks.
- Emergency Descent Handle: Manually lower the platform at 0.5 m/min during power failures.
- Tilt and Wind Sensors: Halt operations if the chassis exceeds a 3° incline or wind speeds surpass 28 mph.
Step-by-Step Operation Guide
1. Pre-Operation Checks
- Daily Inspections: Verify tire pressure (35–40 PSI), hydraulic fluid levels, and guardrail latch integrity.
- Battery Charge: Ensure lithium-ion batteries (48V, 210 Ah) are ≥80% charged for 8–10 hours of continuous use.
2. Assembly
- Modular Components: Connect ring-lock verticals and trusses using rosette joints (no tools required).
- Platform Installation: Secure slip-resistant walkboards (1.2m x 2.4m) with spring clips and anti-vibration pads.
3. Activation
1. Insert the isolator key and toggle the power switch to "ON."
2. Use the joystick to raise/lower the platform (0–18 m/min) or drive forward/backward (3–5 km/h).
3. Engage the auto-brake by releasing the joystick, ensuring immediate stoppage.
4. Repositioning
- Ground Mode: Lower the platform to 1m and drive at 5 km/h to new locations.
- Stowage: Fold guardrails, retract outriggers, and secure components with safety pins for transport.
Safety Features and Compliance
| Feature | Benefit | Regulation Compliance |
| Guardrails & Toeboards | Prevents falls from heights | OSHA 1926.451(g)(4) |
| Load Sensors | Alerts when exceeding 750 lbs capacity | ANSI/SAIA A92.20-2022 |
| Emergency Stop | Instantly halts all functions | ISO 13850 |
| Non-Sparking Motors | Safe for explosive environments | ATEX Directive 2014/34/EU |
Case Study: A Texas construction crew reduced setup time by 50% using JCB's motorized system for a 12-story facade project, with zero safety incidents over six months.
Maintenance and Troubleshooting
Routine Tasks
- Lubrication: Grease pivot points weekly using JCB-recommended lithium-based lubricants.
- Battery Care: Recharge after each shift; store at 50% charge if idle for >30 days to prolong lifespan.
- Filter Replacement: Replace hydraulic filters every 500 operating hours.
Common Error Codes
- Code 68 (Low Voltage): Recharge batteries immediately; check for faulty connections.
- Code OL (Overload): Reduce platform weight to <750 lbs; redistribute tools/materials.
- Code 77 (Overheating): Allow motors to cool for 30 minutes; clean ventilation ducts.
Comparison: JCB vs. Traditional Scaffolding
| Criteria | JCB Motorized System | Traditional Tube-and-Clamp |
| Setup Time | 15–30 minutes | 2–4 hours |
| Labor Required | 1 operator | 3–4 workers |
| Mobility | Motorized drives | Manual disassembly/reassembly |
| Safety Compliance | Automated sensors | Manual inspections |
| Cost/Day | $150–$300 rental | $50–$100 + labor costs |
| Long-Term ROI | 18–24 months | 5+ years |
Real-World Applications

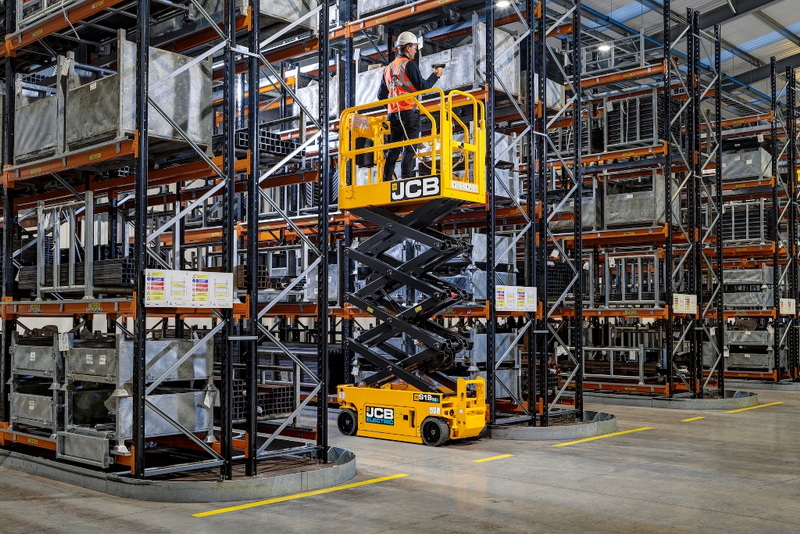

1. Warehouse Maintenance
- Task: LED lighting installation at 30 ft height in a 100,000 sq ft facility.
- Solution: S4046E's 40 ft reach and 750 lbs capacity allowed two workers to complete the job in 3 days vs. 1 week with traditional scaffolds.
2. Hospital Renovation
- Task: Exterior painting and window replacement with minimal noise disruption.
- Solution: JCB's electric motors (55 dB) enabled silent operation near patient recovery areas.
3. Wind Turbine Maintenance
- Task: Inspecting 80m turbine blades in a remote wind farm.
- Solution: T450 Telescopic Boom Lift provided precise positioning with 45m vertical reach, reducing downtime by 70%.
Innovations and Future Trends
- LiveLink Telematics: Remote monitoring of battery health, fault codes, and GPS location via JCB's cloud platform.
- AI-Powered Diagnostics: Machine learning algorithms predict component wear (e.g., hydraulic pumps) 200 hours before failure.
- Hybrid Power Options: Solar-charged batteries and hydrogen fuel cells for off-grid sites, cutting emissions by 90%.
Conclusion
The JCB Motorized Scaffolding System sets a benchmark for operational simplicity, combining plug-and-play assembly, automated safety protocols, and ergonomic controls. Its adaptability across industries-from high-rise construction to precision wind turbine maintenance-makes it a cost-effective and time-saving solution. While initial rental costs are 2–3× higher than traditional options, the reduction in labor, downtime, and safety risks delivers long-term value. As JCB integrates smarter technologies like AI diagnostics and hybrid power, these systems will become even more intuitive, sustainable, and indispensable for modern worksites.
FAQ
1. How quickly can a novice learn to operate the JCB system?
Most operators gain proficiency within 2–4 hours of training, thanks to intuitive joystick controls and guided tutorials. Certification typically requires 8 hours of hands-on practice.
2. Can the system operate on rough terrain?
Yes. All-terrain tires, tilt sensors, and 4-wheel drive enable stable use on slopes up to 5° and unpaved surfaces.
3. What's the maximum weight capacity?
Platforms support 500–750 lbs (227–340 kg), accommodating 2–3 workers with tools and materials.
4. How often is maintenance required?
- Weekly: Lubricate joints and inspect hydraulic lines.
- Monthly: Test safety sensors and battery health.
- Annually: Full system overhaul by certified technicians.
5. Are replacement parts readily available?
JCB's global dealer network stocks 90% of components for next-day delivery, with a 12-month warranty on all parts.
