The LOBO Scaffolding System revolutionizes industrial maintenance and construction workflows by offering a tool-free, modular alternative to traditional scaffolding. Designed for rapid assembly and disassembly, it reduces labor costs by up to 90% compared to conventional methods while maintaining OSHA and EN1004 compliance[3][5]. This article explores the setup process, safety features, and practical applications of the system, supported by comparative data and real-world case studies.

How Easy Is It to Set Up and Dismantle a Lobo Scaffolding System

Key Advantages of the LOBO Scaffolding System

Speed: Erects 10x faster than traditional scaffolding[4].

Labor Efficiency: Requires 2 workers instead of 3–4 for equivalent tasks[3].

Versatility: Configurable into towers, bridges, mobile platforms, and edge protection systems[36].

Safety: Integrated guardrails, non-slip surfaces, and automatic 3:1 height-to-base stability ratio[6][5].

Step-by-Step Setup Process

1. Pre-Assembly Planning

- Design Flexibility: Configure systems using LOBO's modular components (trestle legs, cross tubes, Lobands) for towers, L-shapes, or mobile platforms[36].

- Load Calculations: Ensure a maximum safe working load of 550 lbs (250 kg) per platform[1].

2. Component Preparation

Core Components:

- Trestle legs with welded side/top clamps

- Round steel tubes (1.2m to 2.4m lengths)

- Loband couplers (tool-free clamping)

- Adjustable extensions and sway braces[2][37].

3. Base Assembly

Construct Trestle Frames:

- Connect two trestle legs using cross tubes at lower side clamps.

- Tighten Loband couplers by hand (5 Nm torque)[1].

Install Load-Bearing Tubes:

- Insert tubes through adjacent clamps to form horizontal support layers.

- Add sway braces diagonally to eliminate structural movement[2][6].

4. Platform Installation

- Secure Loboard Decking: Lock boards using T01 tubes and Lobands, ensuring L-bolts rest atop boards to prevent uplift[2].

- Toeboards & Handrails: Attach using clips or hinged wraps; secure with Lobands at every standing height[1][6].

5. Vertical Expansion

- Adjustable Extensions: Raise telescopic inserts by 39" increments, secured via height pins[37].

- Outriggers: Mandatory for structures >2m height to maintain 3:1 stability ratio[5][6].

6. Final Safety Checks

- Verify all Lobands are hand-tightened.

- Confirm guardrails enclose all open sides[8][9].

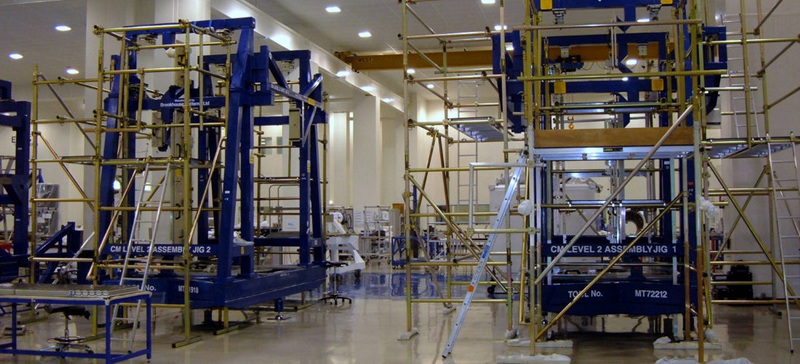

lobo scaffolding system_1

Dismantling Procedure

1. Reverse Assembly Order: Remove extensions, boards, and cross tubes.

2. Component Storage: Flat-pack into Towerstore containers for transport[36].

3. Time Savings: Dismantling takes 15–30 minutes for a 4m tower vs. 2+ hours for traditional scaffolding[3].

Comparative Efficiency Analysis

Metric	LOBO System	Conventional Scaffolding
Erect Time (4m Tower)	40–60 mins[3]	4–5 hours[3]
Labor Required	2 workers	3–4 workers
Reconfiguration	Tool-free	Requires spanners
Mobility	Castor options	Fixed structures

Real-World Applications

Case Study 1: Industrial Maintenance

- Task: Compressor maintenance in a 1.8m-wide corridor.

- LOBO Setup: Narrow-configuration tower erected in 40 minutes[38].

- Outcome: 85% faster than tube-and-clamp alternatives[3].

Case Study 2: Theater Lighting Installation

- Configuration: Tiered platforms over seating.

- Feature: Adjustable legs for uneven surfaces[6][36].

Safety and Compliance

- Certifications: EN1004, BS 1139, OSHA/ANSI A10.8[5][6].

- Fall Prevention: Advanced guardrails pre-installed above work levels[3][37].

- Load Limits: 660 lbs uniformly distributed per Loboard[37].

Conclusion

The LOBO Scaffolding System eliminates the complexity of traditional scaffolding through intuitive, tool-free assembly and unmatched reconfigurability. With erections completed in under an hour and seamless integration into tight spaces, it empowers maintenance teams to work safer, faster, and more cost-effectively.

lobo scaffolding system_2

FAQ

1. What is the maximum height achievable with the LOBO system?

The LOBO System supports free-standing heights up to 10m (32ft) when adhering to the 3:1 base ratio or using outriggers[5][17].

2. Can LOBO integrate with existing scaffolding?

Yes, Lobands connect to most standard scaffolding tubes and clamps[5][33].

3. Is specialized training required for assembly?

Basic competency training (18-minute video) suffices for most configurations[6][37].

4. How does LOBO handle uneven terrain?

Adjustable legs and low-band couplers enable level platforms on slopes or stairs[2][5].

5. What prevents components from loosening during use?

L-bolts feature retention mechanisms and require only hand-tightening (5 Nm)[1][5].
