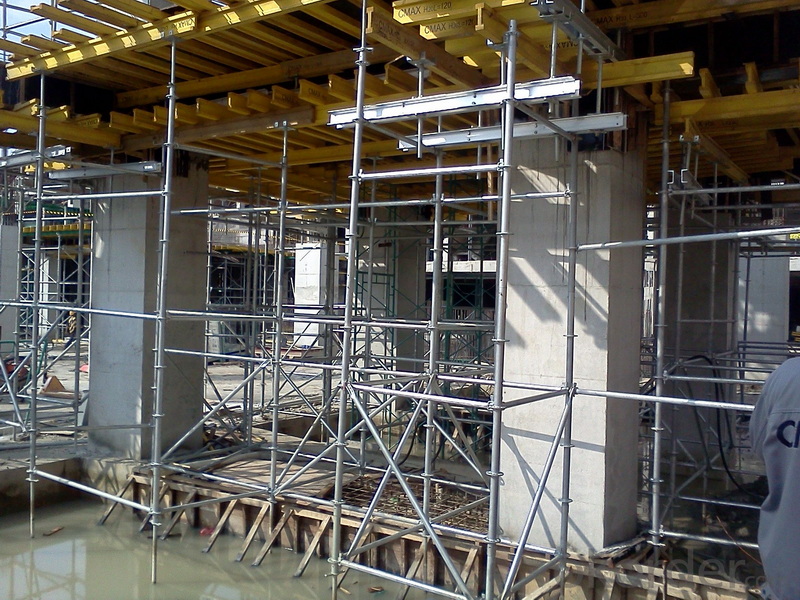

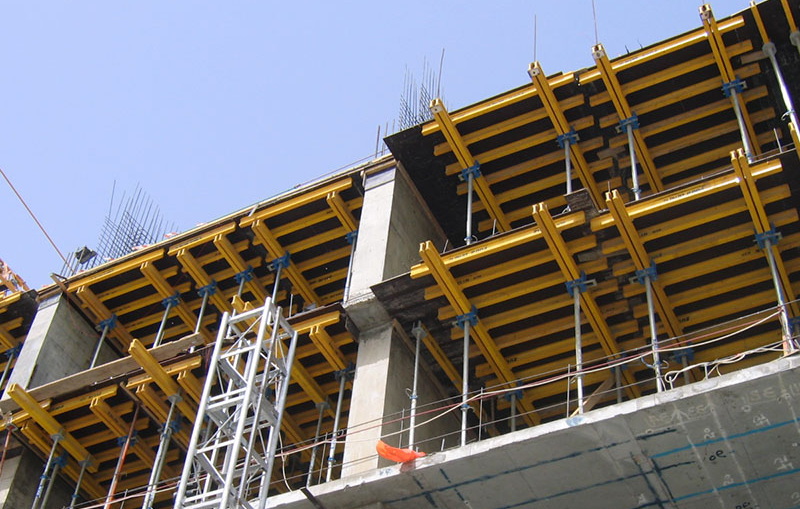

Cuplock scaffolding is widely recognized for its strength, versatility, and ease of assembly, making it a popular choice for supporting slab formwork in construction projects. When considering cuplock scaffolding for slab applications, understanding its load capacity, structural integrity, and compliance with safety standards is crucial to ensure safe and efficient operations.
What is Cuplock Scaffolding?
Cuplock scaffolding is a modular steel scaffolding system characterized by a unique cup-locking mechanism that connects vertical standards and horizontal ledgers. It is widely used across construction sectors for its:
- High strength-to-weight ratio
- Quick assembly and disassembly
- Modular design allowing flexible configurations
- Compliance with international safety standards
Unlike traditional tube and clamp scaffolding, cuplock's welded cup system provides robust connections without loose fittings, enhancing safety and load distribution.

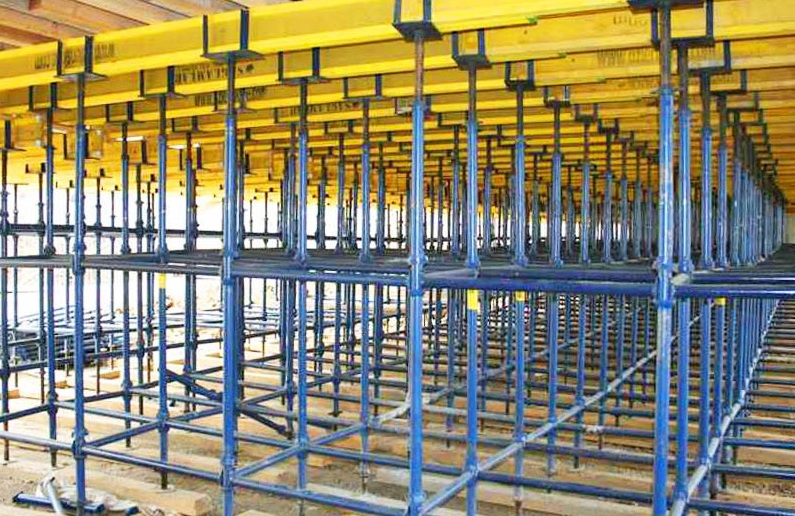

Key Components of Cuplock Scaffolding for Slab Formwork
- Standards (Verticals): Vertical tubes with welded cups at regular 500 mm intervals, available in lengths from 0.5 m to 3.0 m.
- Ledgers (Horizontals): Tubes with forged blade ends that lock into the cups on standards.
- Transoms: Support working platforms and formwork panels.
- Base Jacks: Adjustable supports ensuring level and stable scaffolding.
- Props and Braces: Provide additional support and stability.
Material and Structural Specifications
Cuplock scaffolding components are typically manufactured from high-strength steel with the following specifications:
| Parameter | Specification |
| Tube Diameter | 48.3 mm OD |
| Wall Thickness | 3.2 mm (standard), 4.0 mm (heavy-duty) |
| Steel Grade | S355 (high tensile strength) |
| Surface Finish | Hot-dip galvanized or painted |
| Cup Spacing | 500 mm intervals |
The use of S355 steel grade ensures a minimum yield strength of 355 N/mm², providing excellent load-bearing capacity.
Load Capacity of Cuplock Scaffolding for Slab Formwork
The load capacity of cuplock scaffolding depends on component dimensions, configuration, and quality. Typical load ratings are:
| Component | Ultimate Load (kN) | Safety Load (kN) | Safety Factor |
| Standard (1.0 m) | 21 | 7 | 3:1 |
| Standard (2.0 m) | 10 | 3.3 | 3:1 |
| Ledger (1.0 m) | 48 | 16 | 3:1 |
| Ledger (2.0 m) | 21 | 7 | 3:1 |
| Base Jack (1100mm) | 173 | 57.67 | 3:1 |
These loads indicate that cuplock scaffolding can safely support the significant weight imposed by wet concrete slabs and formwork materials.
Why Cuplock Scaffolding is Suitable for Slab Formwork
1. High Load-Bearing Capacity
The welded cup design and high-strength steel ensure excellent load distribution, making cuplock scaffolding ideal for supporting heavy slab formwork.
2. Modular and Flexible Design
The 500 mm cup spacing allows precise positioning of ledgers and braces, adapting to various slab sizes and shapes.
3. Quick Assembly and Disassembly
Cuplock's design reduces labor time by 30-50% compared to traditional scaffolding, accelerating formwork installation and removal.
4. Durability and Corrosion Resistance
Hot-dip galvanizing protects components from rust, extending service life in harsh construction environments.
Comparison with Other Scaffolding Systems for Slab Formwork
| Feature | Cuplock Scaffolding | Traditional Tube & Clamp | Ringlock Scaffolding |
| Load Capacity | High (S355 steel, 3.2-4.0mm thick) | Moderate | High |
| Assembly Speed | Fast (modular cup-lock system) | Slower (requires bolts/clamps) | Fast (rosette system) |
| Flexibility | High (500 mm cup spacing) | Moderate | High |
| Durability | Excellent (galvanized finish) | Variable | Excellent |
| Cost Efficiency | Competitive | Lower initial cost | Slightly higher |
Cuplock scaffolding strikes a balance between strength, speed, and cost, making it a preferred choice for slab formwork.
Practical Considerations for Using Cuplock Scaffolding in Slab Formwork
Design and Planning
- Calculate load requirements based on slab thickness and concrete density.
- Determine spacing of standards and ledgers to ensure uniform load distribution.
- Incorporate base jacks and props for leveling on uneven ground.
Inspection and Maintenance
- Inspect components for damage or corrosion before use.
- Ensure proper galvanizing to prevent rust-related weakening.
- Regularly check connections during the pour for safety.
Compliance and Safety
- Follow local building codes and standards such as EN 12810 and BS1139.
- Train workers on proper assembly and load handling.
Case Study: Cuplock Scaffolding for Slab Formwork in a Commercial Project
A commercial building project in the UK used cuplock scaffolding for slab formwork over multiple floors. The system supported wet concrete slabs weighing up to 5 kN/m². The modular design enabled quick adjustments for varying floor heights, and the galvanized finish ensured durability throughout the project duration.
The project reported a 40% reduction in assembly time compared to previous projects using tube and clamp scaffolding, with no safety incidents related to scaffold failure.
Maintenance and Longevity of Cuplock Scaffolding
Cuplock scaffolding components, when properly maintained, can last over 10 years. Key maintenance practices include:
- Cleaning after use to remove concrete residue.
- Storing in dry, ventilated areas.
- Periodic inspection for cracks, corrosion, or deformations.
- Replacing damaged components promptly.
Conclusion
Cuplock scaffolding is exceptionally strong and well-suited for slab formwork applications. Its high-strength steel components, modular design, and robust locking mechanism provide the necessary load-bearing capacity and safety required to support heavy concrete slabs. Additionally, the system's ease of assembly and durability make it a cost-effective and reliable choice for construction professionals.
When selecting cuplock scaffolding for slab, ensure components meet relevant standards and are properly maintained to maximize safety and lifespan. With these considerations, cuplock scaffolding can significantly enhance the efficiency and safety of your slab formwork projects.
FAQ
1. What is the typical load capacity of cuplock scaffolding for slab formwork?
Cuplock scaffolding standards typically have a safety load capacity of around 7 kN for 1.0 m lengths and up to 57.67 kN for base jacks, suitable for heavy slab loads.
2. What steel grade is used in cuplock scaffolding?
Most cuplock scaffolding uses S355 steel grade with tube diameters of 48.3 mm and wall thicknesses of 3.2 mm or 4.0 mm.
3. How does cuplock scaffolding compare to other systems for slab formwork?
Cuplock offers a balance of high load capacity, fast assembly, and modular flexibility, outperforming traditional tube and clamp scaffolding in efficiency.
4. Is cuplock scaffolding suitable for all slab thicknesses?
Yes, with proper design and spacing, cuplock scaffolding can support a wide range of slab thicknesses and concrete weights.
5. How long does cuplock scaffolding last with proper maintenance?
With regular maintenance and proper storage, cuplock scaffolding components can last over 10 years.
