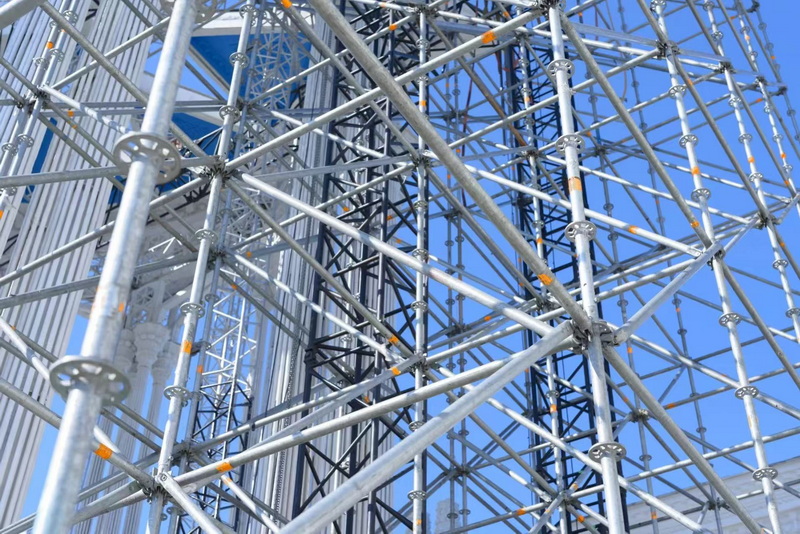

A scaffolding frame system is an essential temporary structure used in construction, maintenance, and repair projects. These systems provide safe and stable platforms for workers to perform tasks at elevated heights. Proper installation is crucial to ensure the safety of workers and the integrity of the project. This comprehensive guide provides a step-by-step approach to installing a scaffolding frame system correctly, incorporating safety guidelines and best practices.
Understanding the Components of a Scaffolding Frame System
Before diving into the installation process, it's crucial to familiarize yourself with the key components of a scaffolding frame system[2]:
- Modular Frames: These are the basic building blocks, stackable and interconnectable[2].
- Cross Braces (X-Braces): These provide lateral stability to the structure[5].
- Base Plates/Adjustable Base Jacks: Used to level the scaffold on uneven surfaces[3].
- Levelling Jacks: Used for adjusting the height of the scaffold[1].
- Scaffold Planks/Decks: These create the working surface[1].
- Guard Rail Systems: Prevent falls from the working platform[2].
- Toeboards: Prevent tools and materials from falling off the platform[1].
- Coupling Pins: Connect frames vertically[5].
- Stair Units/Ladders: Provide safe access to different levels[2][4].
Planning and Preparation
1. Site Assessment
Begin by assessing the site where the scaffolding frame system will be erected. Consider the following[1][4]:
- Ground Stability: Ensure the ground is firm and level. Remove mud, debris, and any unstable materials[7].
- Obstacles: Identify and address any overhead obstructions, such as power lines or tree branches.
- Weather Conditions: Avoid erecting scaffolding in high winds or severe weather[1].
2. Equipment Inspection
Thoroughly inspect all scaffolding components before assembly[3][6][9]:
- Frames: Check for bends, dents, cracks, or rust[6].
- Braces: Ensure they are straight and the locking mechanisms are functional[1][6].
- Planks: Inspect for cracks, splits, or rot[1][3].
- Hardware: Verify that all pins, bolts, and connectors are present and in good condition[7][9].
- Reject Damaged Equipment: Tag and remove any damaged equipment from the site[4].
3. Safety Gear
Ensure all personnel have the necessary safety gear[3]:
- Hard Hats: Protect against head injuries[3].
- Safety Glasses: Protect eyes from debris[3].
- Work Gloves: Provide a better grip and protect hands[3].
- Safety Boots: Offer foot protection and slip resistance[3].
- Fall Protection: Harnesses and lanyards when working at heights[9].
4. Training
Verify that all workers are adequately trained in scaffolding erection, use, and dismantling[9].
Step-by-Step Installation Guide
1. Establish a Solid Base
- Sills: Place suitable sills (such as wooden planks) on the ground to distribute the load[1][4].
- Base Plates/Adjustable Base Jacks: Position adjustable base plates on top of the sills[1][4].
- Leveling: Adjust the leveling jacks to compensate for any ground unevenness[1][4].
2. Erect the First Frames
- Frame Placement: Place the first two frames onto the base plates at the desired spacing[1][4].
- Cross Braces: Attach the cross braces to the frames, ensuring they are securely locked into place[1][4][5].
3. Level and Plumb the Scaffolding
- Leveling: Use a level to ensure the frames are perfectly level[1][4].
- Plumbing: Use a plumb bob or level to ensure the frames are vertical[1][4].
- Adjustment: Adjust the base jacks as needed to achieve perfect level and plumb[1][4].
4. Secure the Base
- Fastening: Fasten the base plates to the sills using nails or screws to prevent movement[1][4].
- Stability: Ensure the base is stable and can support the intended load[6].
5. Add Additional Frames (If Necessary)
- Coupling Pins: Insert coupling pins into the top of the erected frames[5][7].
- Frame Placement: Carefully lift and place the next set of frames onto the coupling pins[7].
- Repeat: Repeat steps 2-4 until the desired height is achieved[7].
6. Install Scaffold Planks/Decks
- Placement: Place the scaffold planks or decks onto the frames, ensuring they are securely seated[1][4].
- Overhang: Ensure the planks extend beyond the supporting points by at least 6 inches but no more than 12 inches[1].
- Securing: Secure the planks to prevent movement[1].
7. Install Guardrail Systems and Toeboards
- Guardrail Posts: Install guardrail posts onto the coupling pins at the top of the frames[1][5].
- Guardrails: Attach the guardrails to the posts on all exposed sides of the scaffolding[1].
- Toeboards: Install toeboards along the edges of the platforms[1].
8. Provide Safe Access
- Ladders or Stair Units: Install ladders or stair units to provide safe access to the working platform[2][4].
- Securing Ladders: Ensure ladders are secured to the scaffolding and extend at least 3 feet above the landing point[4].
9. Final Inspection
- Thorough Check: Conduct a final inspection of the entire scaffolding frame system to ensure all components are properly installed and secured[6][9].
- Load Test: If necessary, perform a load test to verify the scaffolding can support the intended weight[6].
Safety Best Practices
- Load Capacity: Understand and adhere to the load capacity of the scaffolding[6].
- Regular Inspections: Conduct regular inspections of the scaffolding to identify any issues[6][9].
- Fall Protection: Always use fall protection equipment when working at heights[9].
- Weather Awareness: Monitor weather conditions and avoid using scaffolding in adverse weather[1].
- Proper Training: Ensure all personnel are properly trained[9].
Conclusion
Proper installation of a scaffolding frame system is paramount for ensuring worker safety and project success. By following these guidelines and adhering to safety best practices, you can create a stable and secure working platform for any construction, maintenance, or repair project.
FAQ
1. How often should a scaffolding frame system be inspected?
A scaffolding frame system should be inspected before each shift and after any event that could compromise its integrity, such as high winds or heavy rain[6][9].
2. What is the maximum height a scaffolding frame system can reach?
The maximum height depends on the specific system and local regulations. Always consult the manufacturer's guidelines and local codes[7].
3. Can scaffolding frame systems be used on uneven ground?
Yes, by using adjustable base jacks and proper sills, scaffolding frame systems can be safely erected on uneven ground[1][4].
4. What type of fall protection is required when working on a scaffolding frame system?
Workers should use guardrail systems, toeboards, or personal fall arrest systems (PFAS)[1][2][9].
5. How do I properly store a scaffolding frame system when not in use?
Store components in a dry, secure location, protected from the elements. Stack neatly and organize for easy access and inspection[4].
