Cuplock scaffolding is a cornerstone of modern construction, prized for its modular design and adaptability. However, heavy-duty projects-such as industrial facilities, bridge construction, or multi-story concrete pours-demand specialized accessories to ensure safety, stability, and longevity. This guide identifies the best cuplock scaffolding accessories ledger blade supplies and components for heavy-duty applications, supported by visual aids, technical insights, and practical recommendations.
Key Features of Heavy-Duty Cuplock Scaffolding
Heavy-duty cuplock systems must withstand extreme loads, harsh environments, and prolonged use. Critical features include:
- High-Strength Materials: Q345 steel (yield strength ≥345 MPa) for standards, ledgers, and ledger blades.
- Reinforced Components: Thicker tube walls (≥3.2mm) and forged/blade joints for structural integrity.
- Corrosion Resistance: Hot-dip galvanizing (HDG) or powder coating for outdoor/industrial use.
- Load Capacity: Up to 275 kg/m² for heavy-duty configurations.
Top 10 Heavy-Duty Cuplock Scaffolding Accessories

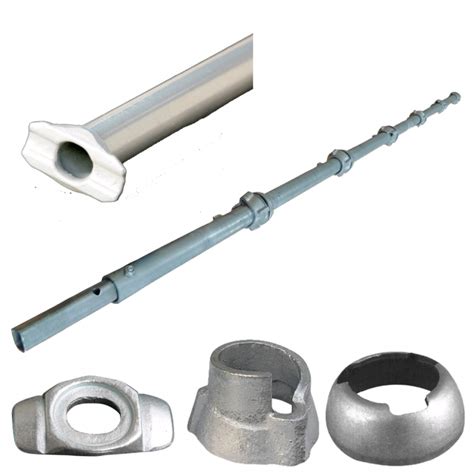

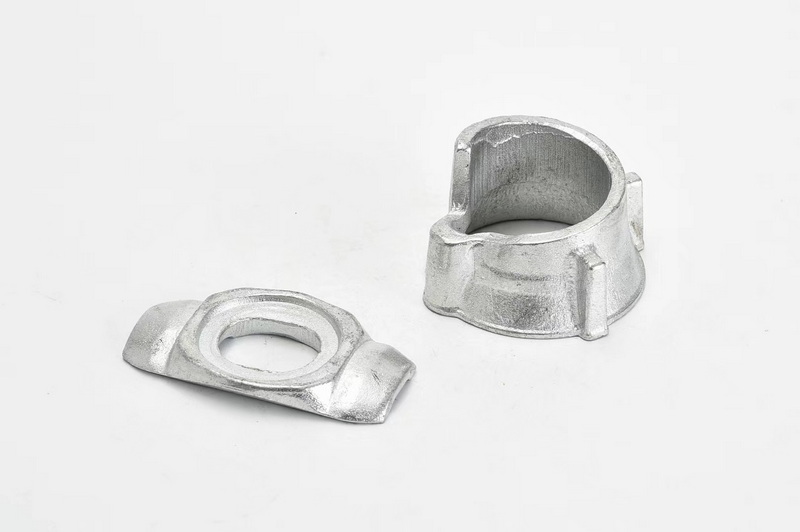

1. Reinforced Ledger Blades
- Function: Connect ledgers to standards via the cup-lock mechanism.
- Heavy-Duty Specs: Material: Drop-forged Q345 steel.
- Thickness: ≥8mm for high shear resistance.
- Surface: HDG-coated for corrosion protection.
- Supplier Tip: Prioritize cuplock scaffolding accessories ledger blade supplies from ISO-certified manufacturers to ensure precision tolerances.
2. Heavy-Wall Standards (Verticals)
- Specifications: Diameter: 48.3mm (standard).
- Wall Thickness: 3.2–4.0mm (vs. 2.5mm for light-duty).
- Steel Grade: Q345 for higher yield strength.
- Applications: Multi-story projects, heavy formwork support.
3. Double-Welded Base Plates
- Design: 150mm x 150mm steel plates with 5mm thickness.
- Benefits: Distributes load on soft/uneven ground and prevents sinking.
- Heavy-Duty Variant: Reinforced edges and center cup for jack compatibility.
4. Adjustable Steel Props (Shore Props)
Capacity:
- Up to 5,000 kg per prop.
Features:
- Threaded adjustment (500–1,000mm range).
- HDG-coated S355 steel tubes.
- Use Case: Supporting concrete slabs during curing.
5. Diagonal Braces with Swivel Blades
- Heavy-Duty Specs: Tube Thickness: 3.0mm (vs. 2.5mm standard).
- Blade Material: Forged steel with anti-slip grooves.
- Function: Enhances lateral stability in high-wind or dynamic load conditions.
6. Heavy-Duty Transom Beams
- Design: Omega-shaped beams with 3.2mm steel walls.
- Load Capacity: Supports up to 150 kg per beam for platform decking.
- Key Feature: Interlocking ends for seamless integration with ledgers.
7. Guard Rail Systems
Components:
- 48.3mm steel rails with mid-rails and toe boards.
- Quick-clamp connectors for rapid installation.
Safety Standard:
- Complies with OSHA/EN 12811-1 fall protection.
8. Mobile Towers with Locking Casters
Features:
- 100mm polyurethane casters (500 kg capacity each).
- Brake locks and stabilizer legs.
Use Case:
- Indoor heavy equipment installation or maintenance.
9. Cantilever Beams
Purpose:
- Extends scaffolding over obstacles (e.g., building setbacks).
Heavy-Duty Specs:
- Double-walled 60mm x 60mm steel beams.
- Bolt-on ledger blade adapters.
10. Safety Hoardings
Types:
- Solid steel panels for debris containment.
- Mesh screens for wind load reduction.
Mounting:
- Compatible with cuplock ledger blade supplies for modular attachment.
Selecting Heavy-Duty Ledger Blade Supplies
Ledger blades are critical for transferring loads between ledgers and standards. For heavy-duty use:
| Parameter | Specification | Importance |
| Material | Q345 steel (forged, not cast) | Prevents deformation under load |
| Thickness | ≥8mm | Resists shear stress |
| Coating | Hot-dip galvanized (≥80µm) | Long-term corrosion resistance |
| Blade Design | Closed-end with locking pin slots | Ensures secure cup engagement |
| Supplier Certification | ISO 9001, CE, SGS | Guarantees quality consistency |
Case Study: Bridge Construction with Heavy-Duty Cuplock
Project: 1.2km highway bridge in coastal environment.
Challenges: Saltwater exposure, 300+ ton concrete pours, and high winds.
Solution:
- Ledger Blades: Q345 HDG blades from certified cuplock scaffolding accessories ledger blade supplies.
- Standards: 4.0mm-wall Q345 tubes with 500mm cup spacing.
- Braces: 3.0mm swivel-diagonal braces every 6.0m.
Outcome: Zero scaffold failures despite 18-month exposure to harsh conditions.
Maintenance Checklist for Heavy-Duty Accessories
1. Monthly Inspections:
- Check ledger blades for cracks or deformation.
- Measure HDG coating thickness (≥80µm).
2. Post-Project Cleaning:
- Pressure-wash salt/debris; apply anti-rust spray.
3. Storage:
- Stack components vertically under cover; avoid ground contact.
Top 5 Suppliers of Cuplock Scaffolding Accessories Ledger Blade Supplies
1. Hebei Trico Scaffolding (China)
- Certifications: ISO 9001, CE, SGS.
- Specialty: HDG ledger blades with 10-year warranty.
2. Total Contec (China)
- Products: Q345 blades with BIM-compatible CAD files.
3. WM Scaffold (China)
- Strength: Custom forging for non-standard ledger blades.
4. AAIT Scaffolding (UAE)
- Focus: Heavy-duty shore props and transom beams.
5. Alibaba Verified Suppliers
- Advantage: Bulk discounts on Q345 components.
Cost Comparison: Heavy-Duty vs. Standard Accessories
| Accessory | Standard (USD) | Heavy-Duty (USD) | Difference |
| Ledger Blade | $3.50 | $6.80 | +94% |
| Standard (per meter) | $12.00 | $18.50 | +54% |
| Diagonal Brace | $15.00 | $28.00 | +87% |
| Base Plate | $4.20 | $7.50 | +79% |
Heavy-duty accessories cost 50–100% more but offer 3–5x lifespan in harsh conditions.
Integrating Cuplock Scaffolding with Digital Construction
Heavy-duty projects often leverage digital tools for planning and monitoring. Leading cuplock scaffolding accessories ledger blade supplies now offer:
- BIM-Compatible CAD Files: Streamlines scaffold design and clash detection.
- Digital Asset Tracking: QR codes or RFID tags for inventory and maintenance management.
- Load Monitoring Sensors: Real-time alerts for overload or instability.
Environmental and Sustainability Considerations
With growing emphasis on sustainability, heavy-duty cuplock accessories are now engineered for:
- Reusability: Designed for multiple project cycles with minimal wear.
- Eco-Friendly Coatings: Low-VOC powder coatings and non-toxic galvanizing.
- Recycled Steel: Many suppliers use recycled Q345 steel to reduce environmental impact.
Safety Innovations in Heavy-Duty Accessories
Safety is paramount in heavy-duty applications. The latest innovations include:
- Anti-Tamper Ledger Blades: Prevent unauthorized removal or adjustment.
- High-Visibility Coatings: Bright colors for edge protection and hazard marking.
- Integrated Guardrail Systems: Modular rails that lock directly into the cuplock system for rapid deployment.
Best Practices for Heavy-Duty Cuplock Scaffolding
- Early Planning: Engage suppliers early to ensure timely delivery of custom or heavy-duty components.
- Routine Training: Ensure all workers are trained in heavy-duty scaffold assembly and inspection.
- Documentation: Keep detailed records of component specifications, inspections, and maintenance.
Conclusion
For heavy-duty projects, investing in high-quality cuplock scaffolding accessories ledger blade supplies is non-negotiable. Prioritize Q345 steel components, hot-dip galvanizing, and certified suppliers to ensure safety and ROI. Regular maintenance and proper storage further extend the system's lifespan, making it a cost-effective choice for industrial and civil engineering challenges. Integrating digital tools and sustainability practices can further enhance the efficiency and safety of your heavy-duty scaffolding systems.
FAQ
1. What steel grade is best for heavy-duty ledger blades?
Q345 steel (minimum yield strength 345 MPa) is ideal for heavy loads and harsh environments.
2. How often should I inspect ledger blades?
Inspect before each use and monthly during projects. Replace blades with cracks or HDG coating <80µm.
3. Can I mix heavy-duty and standard cuplock accessories?
Avoid mixing-heavy-duty components have thicker walls and may not fit standard cups.
4. Where to buy reliable cuplock scaffolding accessories ledger blade supplies?
Choose ISO-certified suppliers like Hebei Trico or Total Contec for guaranteed quality.
5. What's the lifespan of HDG-coated accessories in coastal areas?
Properly maintained HDG components last 15–20 years, even in saltwater zones.
