Cuplock type scaffolding is a versatile and robust modular scaffolding system widely used in construction and industrial projects. When it comes to handling heavy loads, the double scaffolding system cuplock type stands out as an ideal choice. This article explores the features, benefits, and applications that make it so effective for supporting substantial weights, ensuring safety, and enhancing efficiency on demanding worksites.
Understanding Cuplock Type Scaffolding
Cuplock scaffolding is characterized by its unique node-point locking mechanism, which consists of fixed lower cups welded at regular intervals on vertical standards and movable upper cups that lock horizontal ledgers and transoms into place[8][9]. This design allows for quick and secure assembly without the need for nuts, bolts, or wedges[6][8]. The modularity of the system makes it highly adaptable to various applications, from facade work to complex support structures[4][6].
Key Features of Cuplock Scaffolding
- Rapid Assembly: The cup and blade locking system facilitates fast erection and dismantling[6].
- Versatility: Adaptable to various scaffold configurations, including straight runs, circular scaffolds, and stair towers[6][8].
- Durability: Typically made with a hot-dip galvanized finish to resist corrosion and extend lifespan[6][8].
- Safety: Designed with high safety factors and secure locking mechanisms[6][7].
The Concept of Double Scaffolding
Double scaffolding system cuplock type enhances the load-bearing capacity by essentially creating two parallel scaffolding structures that are interconnected. This configuration distributes the load more evenly across multiple standards and ledgers, increasing the overall strength and stability of the scaffold[4].
Why Double Scaffolding System Cuplock Type is Ideal for Heavy Loads
1. Enhanced Load Distribution
In a double scaffolding system cuplock type, the load is distributed across two sets of vertical standards rather than one. This reduces the stress on individual components and increases the total load-bearing capacity[4].
2. Increased Stability
The interconnected nature of double scaffolding provides enhanced stability, which is particularly important when dealing with heavy loads[4]. The system is less prone to swaying or buckling under pressure.
3. Robust Construction Materials
Cuplock scaffolding is typically made from high-strength steel, which can withstand significant vertical loads[6][7]. The standards, ledgers, and transoms are designed to work together to create a strong and rigid structure[7].
4. Secure Locking Mechanism
The unique cuplock mechanism ensures that all connections are secure and reliable[6][9]. This minimizes the risk of components slipping or becoming dislodged under heavy loads.
5. Adaptability and Versatility
The modular design of double scaffolding system cuplock type allows for easy customization to meet specific project requirements[6][8]. The system can be adapted to different heights, spans, and load configurations.
Components Contributing to Heavy Load Capacity
Several components within the double scaffolding system cuplock type contribute to its ability to handle heavy loads:
Vertical Standards
These are the primary load-bearing elements, typically made from high-strength steel tubes. In a double scaffolding system cuplock type, having two rows of standards significantly increases the vertical load capacity[4].
Horizontal Ledgers and Transoms
Ledgers provide horizontal support and connect the standards, while transoms support the scaffold boards. Their design and spacing contribute to the overall load distribution[4].
Base Jacks
Adjustable base jacks provide a stable foundation and allow for leveling on uneven surfaces. They are essential for distributing the load evenly to the ground[6].
Braces
Diagonal braces add stability and prevent swaying, particularly important in high-load scenarios[6].
Load Capacity Specifications
The load capacity of cuplock type double scaffolding depends on factors such as the spacing between standards, the grade of steel used, and the specific configuration. As a general guideline:
- Single Standard: A single standard in a properly erected cuplock system can support 2 to 3 tons of vertical load[4].
- Double Scaffolding: By using double standards, the load capacity can be significantly increased, though it is not simply double the capacity of a single standard due to load distribution dynamics.
- Horizontal Load: A typical load-bearing capacity is around 1 ton per ledger, depending on the spacing[4].
It is crucial to consult the manufacturer's specifications and follow local regulations to determine the exact load limits for the specific system being used[4].
Applications Where Double Scaffolding System Cuplock Type is Ideal
Bridge Construction
Bridges often require heavy materials and equipment to be lifted and supported at height. The double scaffolding system cuplock type provides a stable and high-capacity platform for these tasks[6][8].
Industrial Maintenance
Industrial facilities often involve heavy machinery and equipment that need to be accessed for maintenance. The robust nature of double scaffolding makes it ideal for supporting workers and equipment[6].

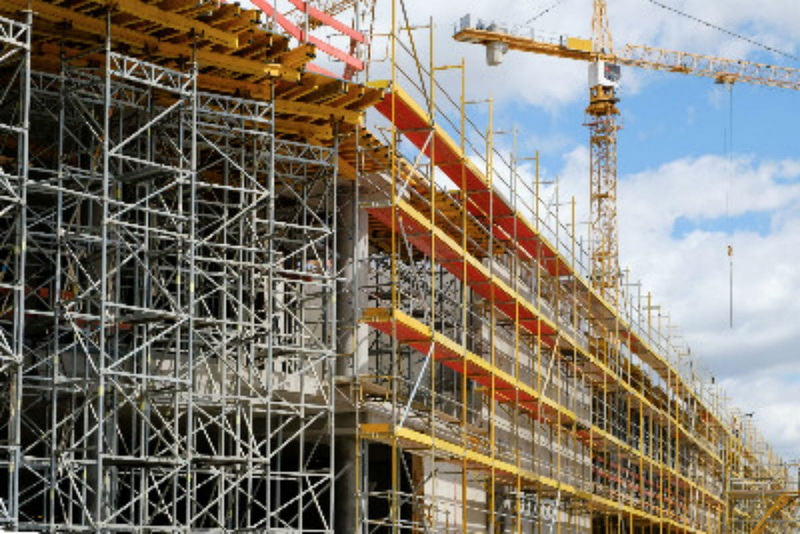

High-Rise Construction
In high-rise construction, heavy materials need to be lifted to significant heights. Double scaffolding can provide the necessary support for both the workers and the materials[6].

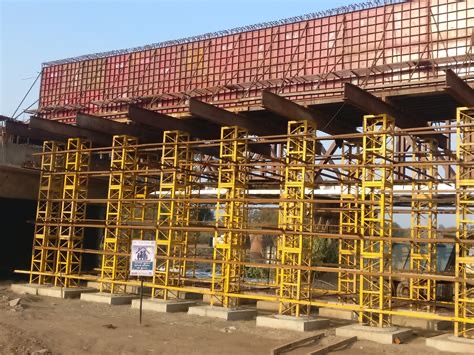

Support Structures
Double cuplock scaffolding is often used to create temporary support structures for formwork, falsework, and shoring applications. Its high load capacity ensures the safety and stability of these critical structures[6].
Safety Considerations
When using double scaffolding system cuplock type for heavy loads, it is essential to adhere to strict safety protocols:
- Proper Training: Ensure all workers are properly trained in the assembly, use, and dismantling of cuplock scaffolding[6].
- Load Limits: Never exceed the specified load limits for the system.
- Regular Inspections: Conduct regular inspections to identify any signs of damage or wear.
- Use of PPE: Always use appropriate personal protective equipment, including hard hats, safety boots, and harnesses.
- Stable Foundation: Ensure the scaffolding is erected on a stable and level foundation.
Conclusion
The double scaffolding system cuplock type is an excellent choice for projects requiring the support of heavy loads. Its enhanced load distribution, increased stability, robust construction materials, and secure locking mechanism make it a reliable and versatile option for bridge construction, industrial maintenance, high-rise construction, and support structures. By understanding its components, load capacities, and safety considerations, construction professionals can maximize its benefits while ensuring a safe and efficient working environment.
FAQ
1. What is the primary advantage of using double cuplock scaffolding for heavy loads?
The primary advantage is enhanced load distribution, which reduces stress on individual components and increases overall stability, making it ideal for supporting heavy weights[4].
2. How does the cuplock mechanism contribute to the load-bearing capacity of double scaffolding?
The unique cuplock mechanism ensures secure and reliable connections, minimizing the risk of components slipping or becoming dislodged under heavy loads[6][9].
3. What types of projects benefit most from using double scaffolding system cuplock type?
Projects such as bridge construction, industrial maintenance, high-rise construction, and creating support structures benefit most due to the system's ability to handle heavy materials and equipment at significant heights[6][8].
4. What are the key safety considerations when using double cuplock scaffolding for heavy loads?
Key safety considerations include proper training, adherence to load limits, regular inspections, use of appropriate PPE, and ensuring a stable foundation[6].
5. Can double cuplock scaffolding be easily adapted to different project requirements?
Yes, the modular design of double scaffolding system cuplock type allows for easy customization to meet specific project needs, including different heights, spans, and load configurations[6][8].
