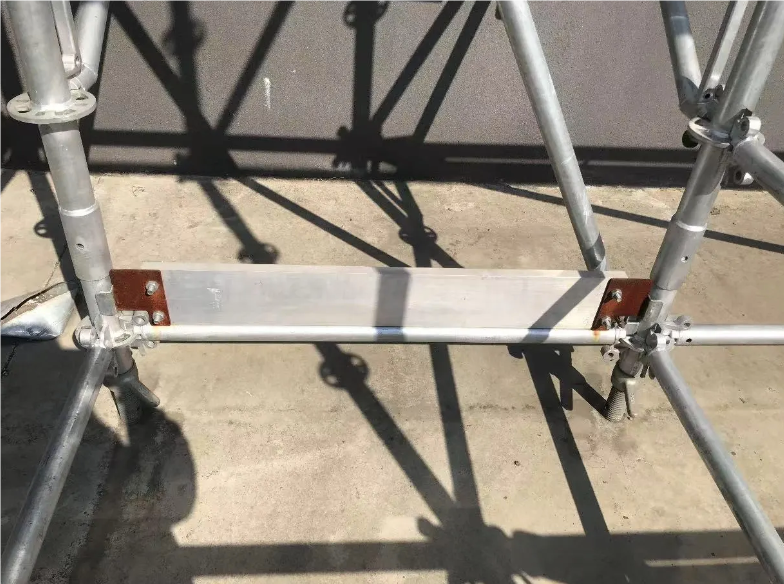

A scaffold toe board is an essential component of scaffolding, typically made from steel or wood. It is attached to the scaffold tubes to create a safety barrier. Modern scaffold toe boards can also be made from lighter and stronger materials, such as aluminum, fiberglass, or high-density polyethylene (HDPE). Employers usually install toe boards along the edges of platforms, docks, walkways, grates, and other elevated or exposed floor areas. Toe boards, also known as kick plates, may be part of a guardrail system.

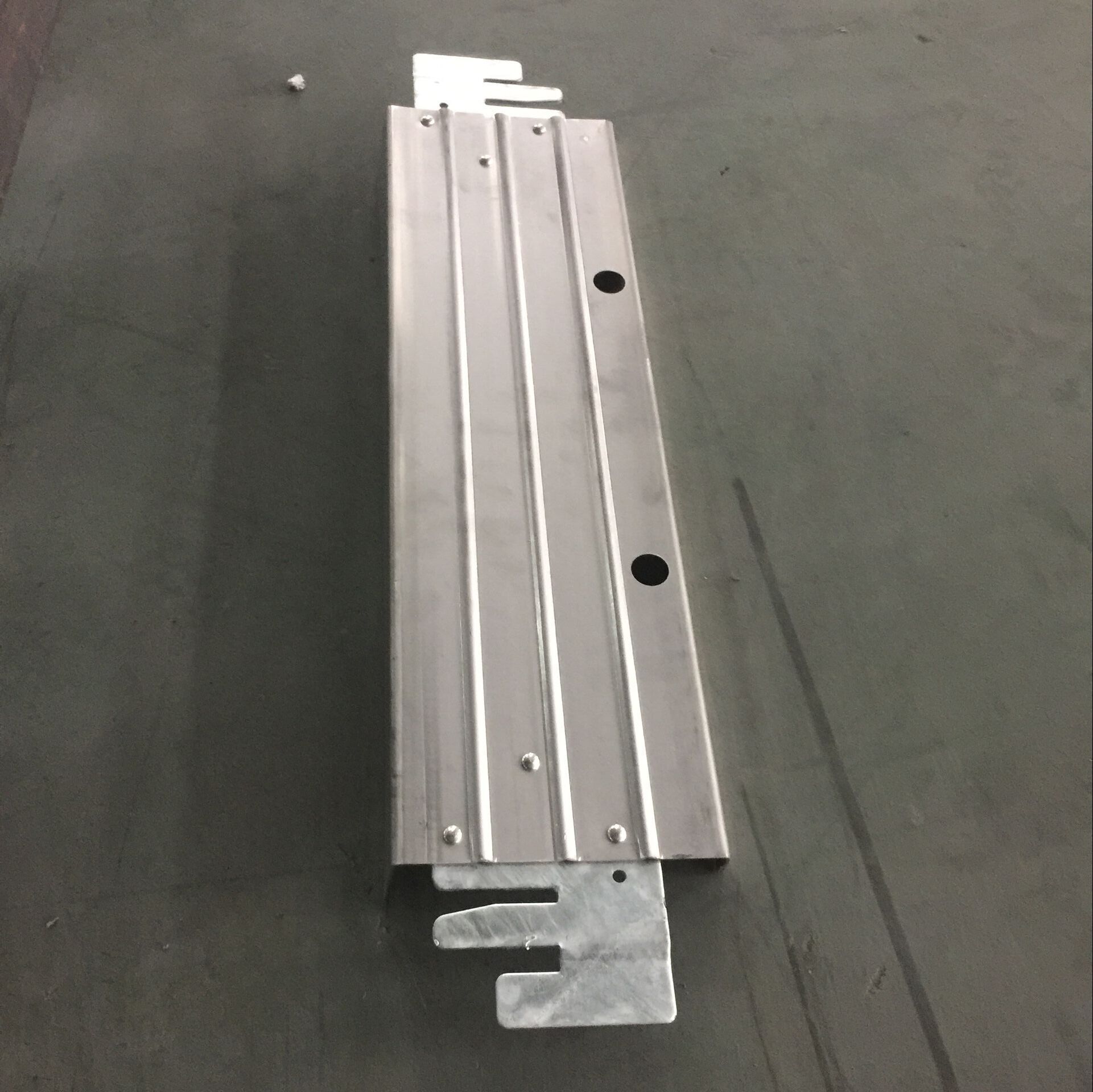

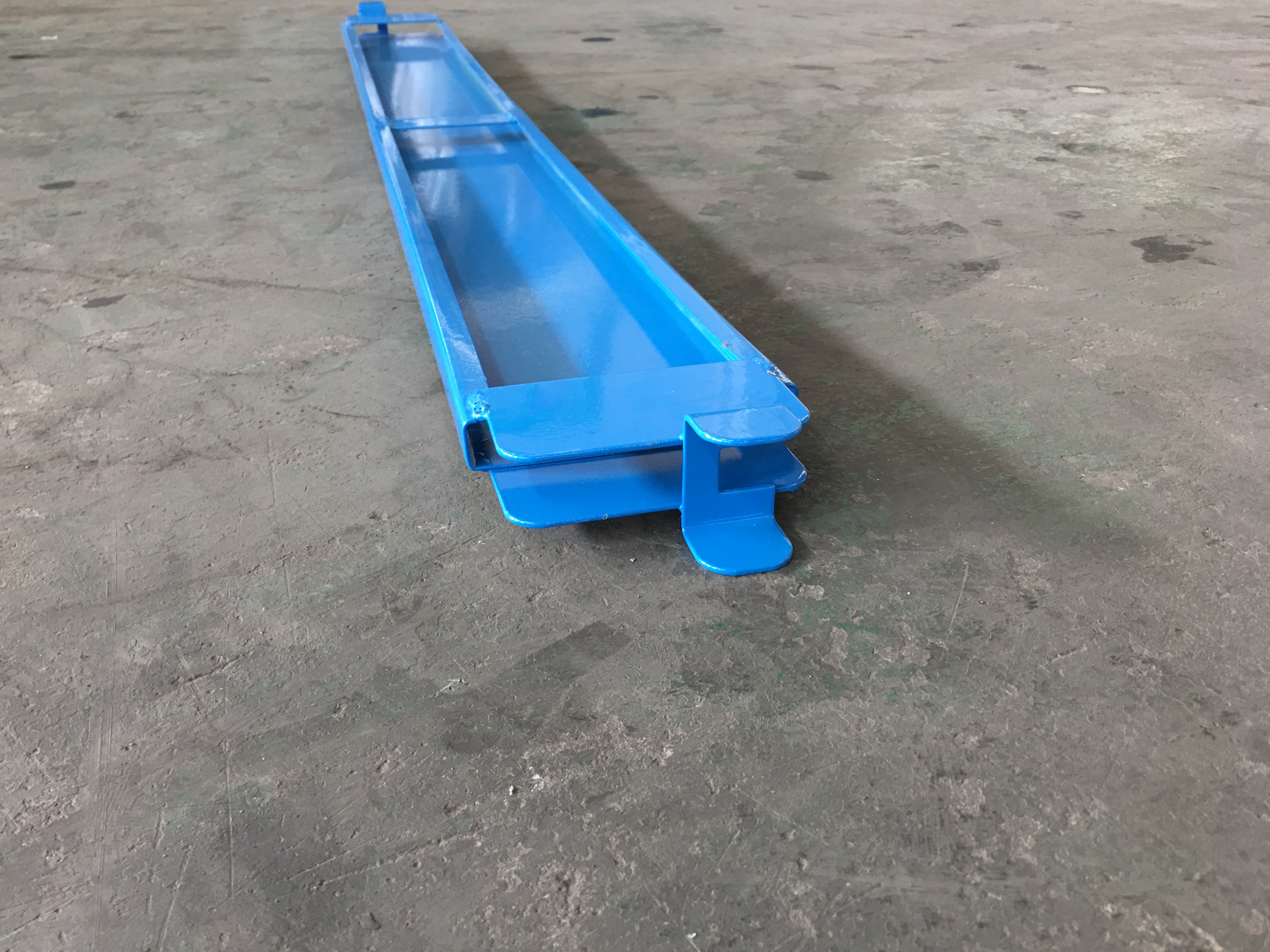

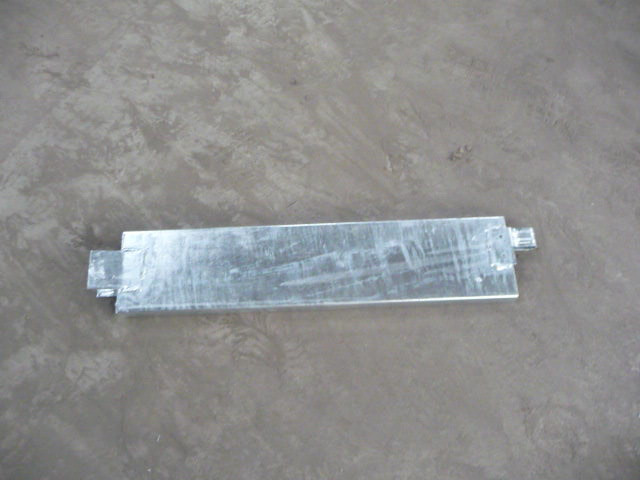

Different Types of Scaffold Toe Boards
Why Do Scaffolds Need Toe Boards?
The primary function of scaffold toe boards is to create a barrier at the edge of platforms, ensuring safety and mitigating the risks associated with unprotected edges. The specific roles of toe boards include:
Preventing Falls
Toe boards help prevent workers from slipping or falling off the edge of the scaffold platform, protecting workers' lives and reducing the likelihood of accidents and injuries.
Containing Materials
They prevent materials, tools, or debris from falling off the platform and potentially injuring workers or passersby below.
Maintaining Orderliness
Toe boards help keep the work area tidy and organized, improving productivity.
Compliance with Regulations
Using toe boards helps ensure compliance with legal regulations, contributing to the smooth execution of construction projects.
Common Questions About Scaffold Toe Boards
1. Is the use of scaffold toe boards mandatory?
Yes, toe boards must be used during elevated work, especially where there is a risk of workers or materials falling.
2. What should be the height of a scaffold toe board?
According to OSHA regulations, the top edge of a toe board must be at least 3.5 inches (9 cm) above the walking or working surface.
3. What is the acceptable gap between the toe board and the platform?
The gap between the toe board and the walking or working surface should not exceed 0.25 inches (0.5 cm).
4. How much force should a toe board withstand?
A toe board should be capable of withstanding a force of at least 50 pounds (222 N) applied downward or outward at any point along the toe board.
5. Are guardrails mandatory?
Yes, both toe boards and guardrails are required during elevated work to ensure safety.
6. When are safety gates needed?
Guardrails and toe boards must be installed on all exposed sides of a scaffold platform, except at entry points, where self-closing safety gates are required.
Conclusion
In construction projects, scaffold toe boards are indispensable components. They ensure the safety of workers, significantly reduce the risk of falling objects, and enhance overall project safety, allowing workers to perform their tasks with greater peace of mind.
