What Are Scaffolding Screw Jacks in Construction?

Introduction

In the construction industry, safety and stability are paramount, particularly when working at heights. Scaffolding screw jacks, also known as base jacks or leveling jacks, serve as the foundational support for scaffolding systems. They provide essential height adjustments and stability, especially on uneven ground, ensuring that scaffolding platforms are level and secure.

What Are Scaffolding Screw Jacks?

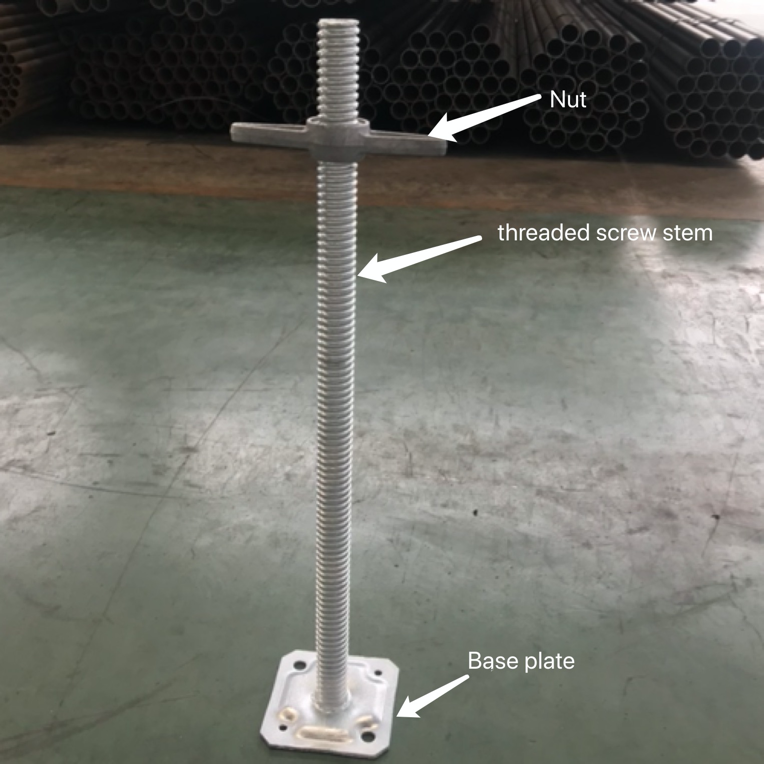

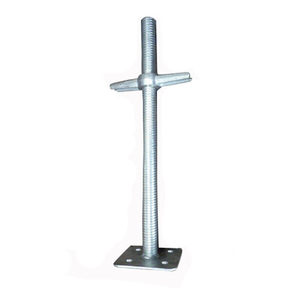

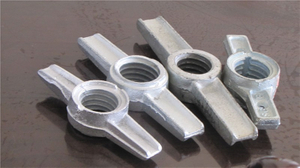

Scaffolding screw jacks are adjustable devices designed to support scaffolding structures. They consist of a threaded screw stem, a jack nut, and a base plate. These components work together to allow for precise height adjustments, accommodating various ground levels and ensuring a stable foundation for scaffolding.

Types of Scaffolding Screw Jacks

Scaffolding screw jacks come in various types, each serving specific purposes in construction:

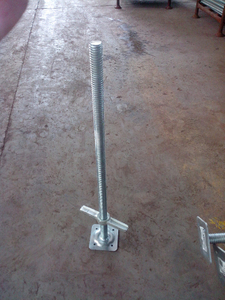

1. Solid Screw Jacks: These are made from solid round bars and are available in diameters ranging from OD26mm to OD48mm.

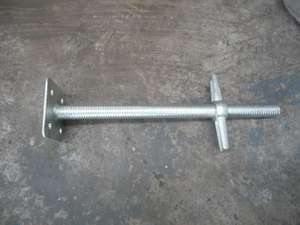

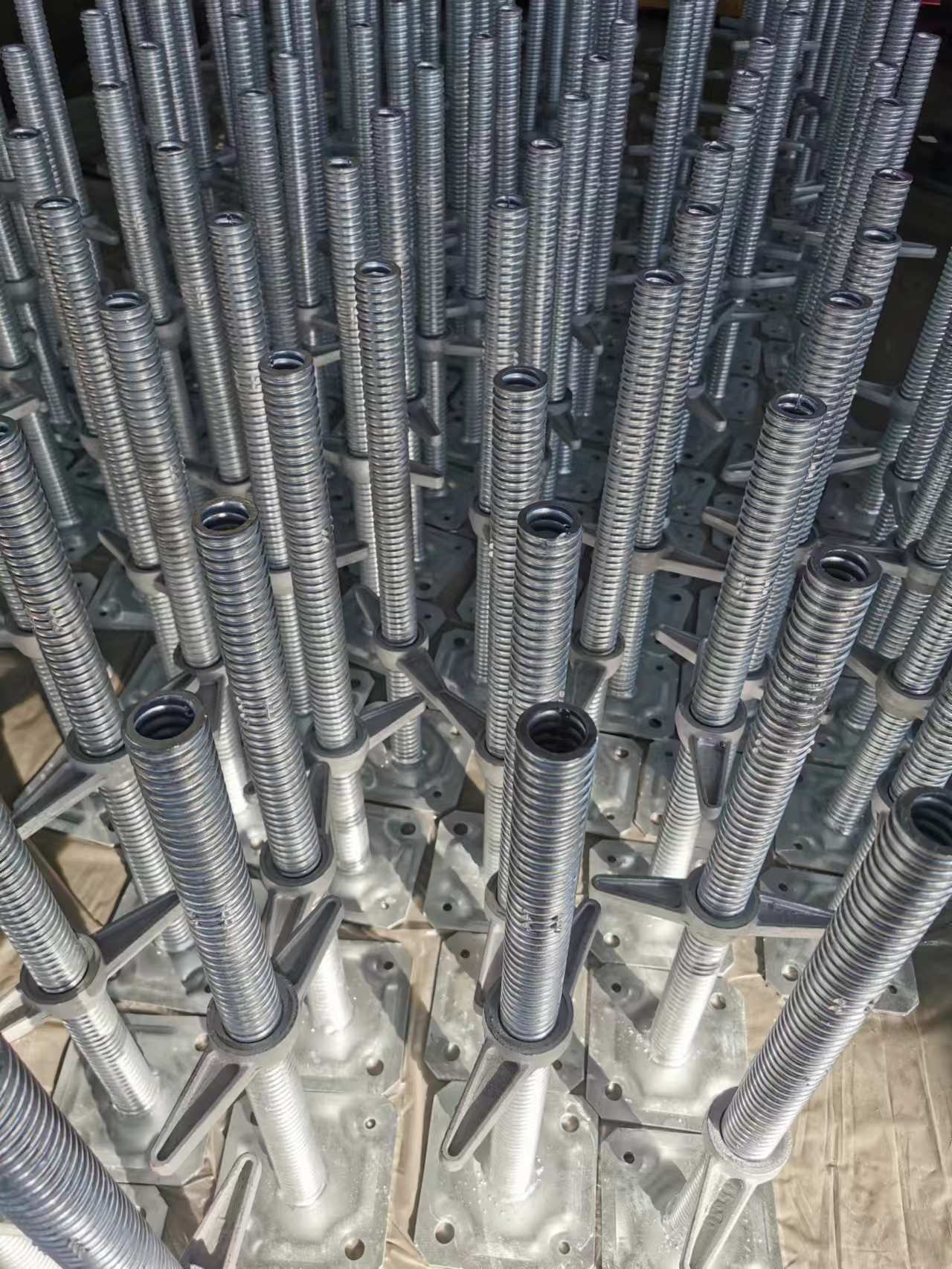

2. Hollow Screw Jacks: Manufactured from hollow steel pipes, these jacks are available in diameters such as OD34mm, OD38mm, and OD48mm.

3. Bottom Type Scaffolding Screw Jacks: Used at the base of scaffolding to ensure stability and leveling on uneven ground.

4. Top Type Scaffold Screw Jacks: Placed at the top of scaffold towers to support formwork and shoring systems. They include U head jacks, Forkhead jacks, etc.

5. Universal Jacks: Versatile jacks that can be used with or without base plates or top heads.

6. Swivel Screw Jacks: Designed for use on sloped or inclined surfaces.

7. Caster Jacks: A type of scaffold  screw jack used to connect scaffolding caster wheels.

The Importance of Scaffolding Screw Jacks

Scaffolding screw jacks play a crucial role in construction for several reasons:

1. Height Adjustment: They allow for precise height adjustments, accommodating uneven ground and ensuring that scaffolding platforms are level.

2. Stability and Safety: By providing a solid foundation, screw jacks prevent scaffolding from tipping or collapsing, significantly reducing the risk of accidents.

3. Load Distribution: Screw jacks help in evenly distributing loads across the scaffolding structure, preventing overloading and ensuring structural integrity.

Applications of Scaffolding Screw Jacks

Scaffolding screw jacks are widely used in various construction applications:

1. Construction Sites: Essential for residential, commercial, and industrial construction projects.

2. Maintenance and Repair Work: Provide temporary access for maintenance and repair tasks.

3. Event Setup: Used in staging and event setups where temporary structures are required.

Advantages of Using Scaffolding Screw Jacks

Using scaffolding screw jacks offers several benefits:

1. Versatility: Suitable for various types of scaffolding systems, including frame, tubular, and modular scaffolding.

2. Ease of Use: Simple to install and adjust, making them user-friendly for construction crews.

3. Cost-Effectiveness: Help reduce costs by minimizing material waste and improving work efficiency.

Best Practices for Using Scaffolding Screw Jacks

To ensure the safe and effective use of scaffolding screw jacks, follow these best practices:

1. Proper Installation: Install screw jacks according to manufacturer guidelines to ensure stability and safety.

2. Regular Inspections: Conduct routine checks to ensure that screw jacks remain in good condition and function correctly.

3. Safety Protocols: Adhere to safety measures, including load limits and proper training for workers.

Scaffolding Screw Jack Load Capacity Tests

Different specifications of scaffolding screw jacks have different load capacities. Below are the test results for a 38x650mm screw jack at different heights, for your reference:

Customization and Specifications

Tuopeng Scaffold offers customized scaffolding screw jacks to meet specific customer requirements. The base plate sizes, adjustable heights, and overall specifications can be tailored to fit different scaffolding systems and construction needs. The most commonly used base plate sizes are 150x150mm, 140x140mm, and 120x120mm.

Finishing Options

Scaffolding screw jacks can be finished in various ways to meet different durability requirements and budget plans:

1. Painted: Provides a basic level of protection and is cost-effective.

2. Zinc-Plated (Electro Galvanized): Offers moderate corrosion resistance.

3. Hot-Dip Galvanized (HDG): Provides the highest level of durability and is recommended for long-term use.

Threading Options

Tuopeng Scaffold offers both square and round threading options for scaffolding screw jacks:

1. Square Threaded: Features 6.35mm (4 TPI – four teeth per inch) teeth distance.

2. Round Threaded: Features 8mm teeth distance and is known as coarse threaded or quick threaded.

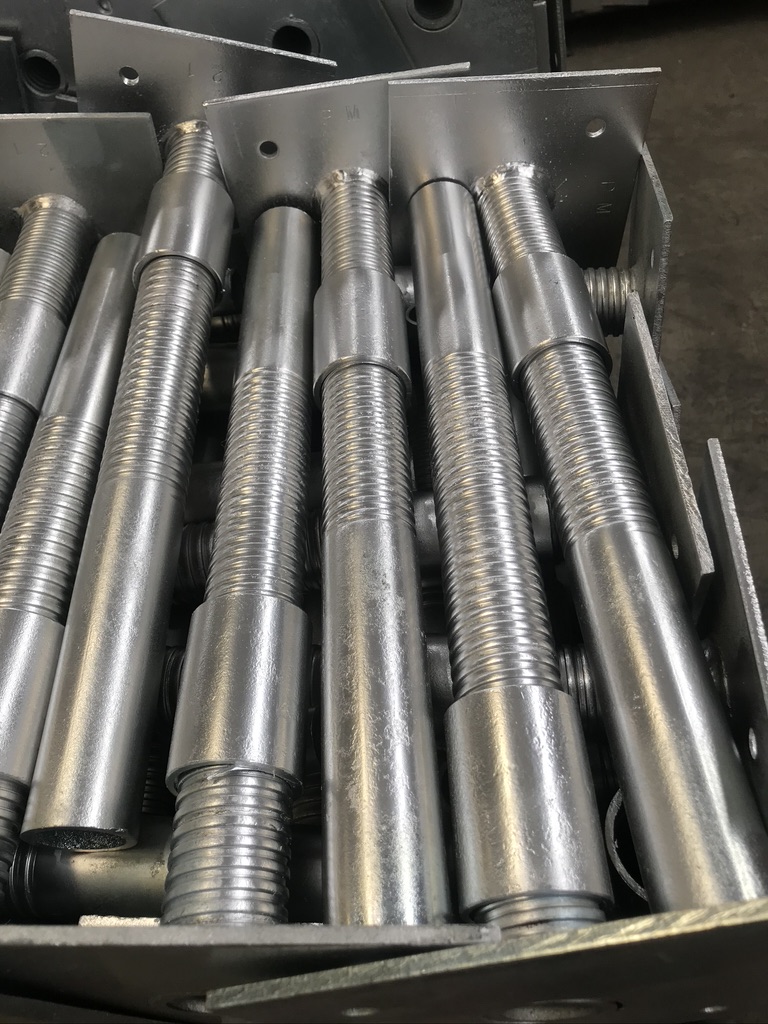

       Scaffolding Screw Jack Square Threaded                                 Scaffolding Screw Jack Round Threaded

Compatibility and Usage

Scaffolding screw jacks are compatible with various scaffolding systems, including ringlock, cuplock, kwikstage, frame scaffolding, tube and coupler scaffolding, and heavy-duty shoring systems. They are used as leveling feet, support for formwork, and in mobile scaffolding systems.

Creating a Stopper on a Scaffolding Screw Jack

Creating a stopper on a scaffolding screw jack is neccesory. The common methods used for making a stopper on a jack include welding a spot or pressing a cut to create a stopper. These methods are used to ensure that the jack does not extend beyond a certain point, which is crucial for safety and functionality.

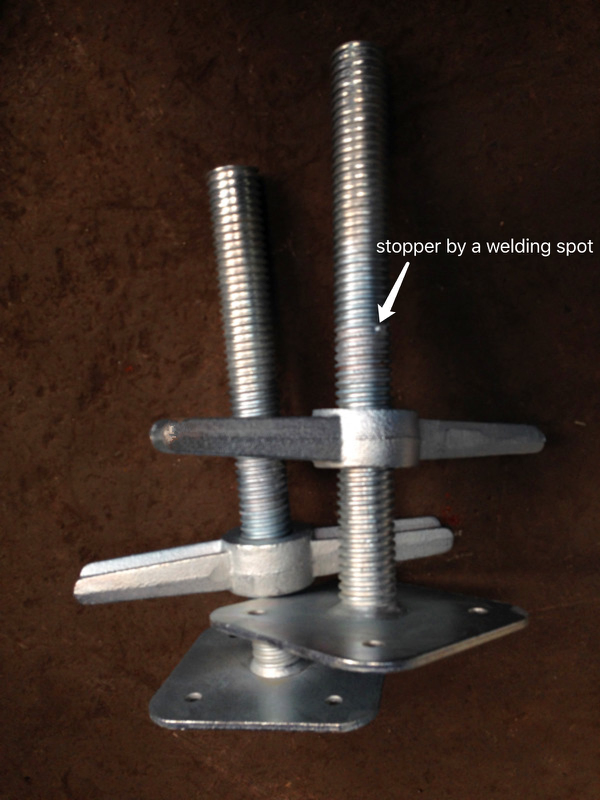

1. Welding a Spot: This method involves welding a small spot or bead on the jack to create a physical barrier that prevents the jack from extending further. This is a common technique used to modify the jack's extension limit, ensuring it does not exceed a safe height.

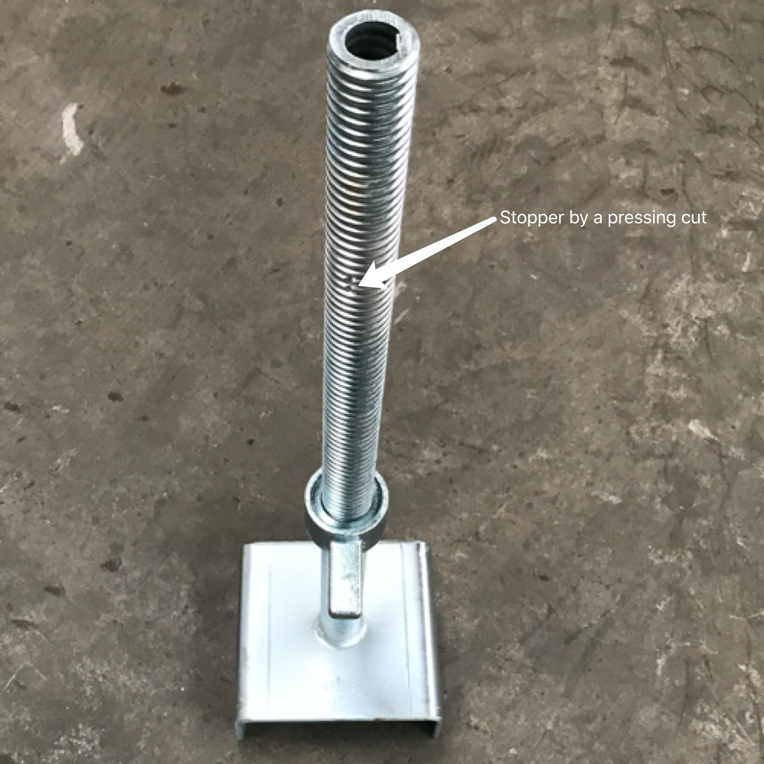

2. Pressing a Cut: Another method is to press a cut or groove into the jack at the desired stopping point. This cut acts as a mechanical stop, preventing the jack from moving beyond the set limit. This method is often used in conjunction with other safety measures to ensure the jack remains secure and stable.

These methods are essential for modifying jacks to meet specific requirements, such as limiting the maximum extension for safety reasons or to accommodate specific work environments.

Positioning the Stopper

The length of the stopper from the end of the screw jack can vary depending on the specific design and application. However, a common practice is to position the stopper approximately 150mm (6 inches) from the top of the screw jack. This allows for adequate adjustment while ensuring that the jack does not extend beyond a safe height, preventing accidents and ensuring stability.

Conclusion

Scaffolding screw jacks are an essential component of any scaffolding system, providing stability, safety, and versatility. Choosing high-quality adjustable base jacks, like those offered by Tuopeng Scaffold, can make a significant difference in the success of your construction projects. For more information or inquiries, please feel free to contact us at info@tp-scaffold.com or Whats'App: +86 18761811774.
