Scaffolding Drop Forged Swivel Coupler

1. Unit weight: 1.13 kg
2. Material: Q235
3. Drop forged
4. EN74 &BS 1139 standard
5. Surface finish: electro galvanized, HDG
Availability:
  • TPDFSC - 1

  • TP

  • 73084000

  • 48.3mm * 48.3mm

  • 1.13 kg

  • Electro Gal.

  • Q235

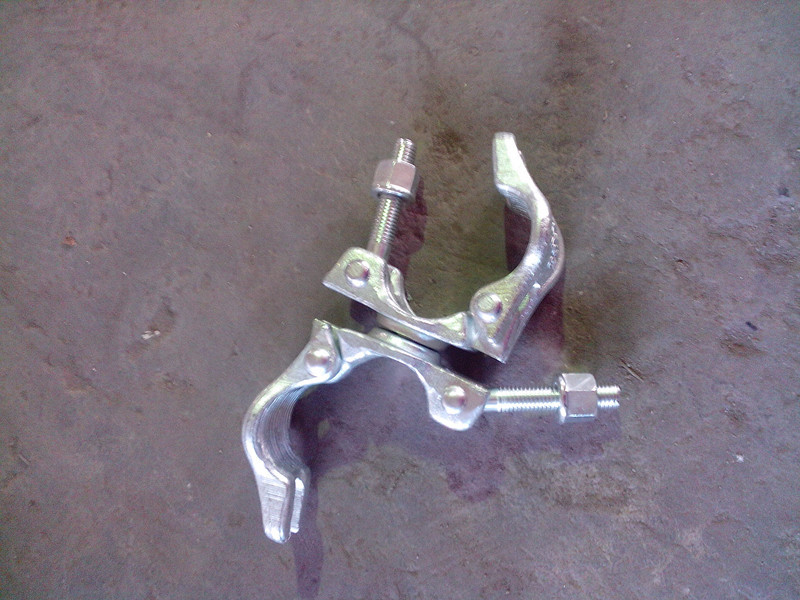

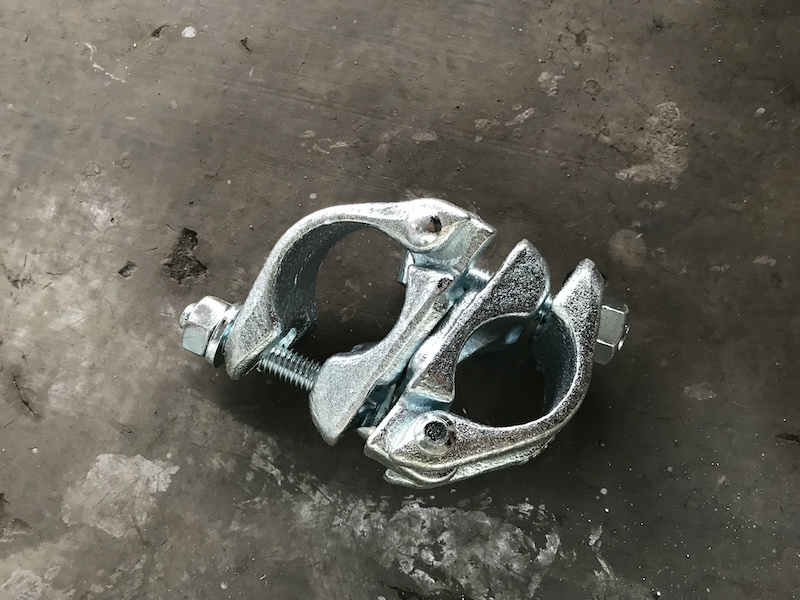

Scaffolding drop forged swivel coupler:

  1. The drop forged swivel coupler is a type of scaffolding couplers designed to connect 48.3 mm x 48.3 mm tubes at any angle. It is commonly used in construction projects alongside double couplers.

  2. British-type swivel clamps are used not only in the UK but also across Asia, the Middle East, Africa, and Europe.

  3. Unit Weight: 1.13 kg

  4. A swivel scaffolding coupler consists of two half couplers connected by rivets.

  5. Two Grade 8.8 T bolts, nuts, and washers are used to adjust and secure the coupler caps.

  6. Forged swivel couplers offer superior loading capacity compared to pressed steel swivel couplers.

  7. Surface Finish: Available in electro-galvanized or hot-dip galvanized.

  8. Compliance: Meets EN74 and BS1139 standards.

  9. Packaging: 25 pieces per bag, with 50 bags on one wooden or steel pallet.

  10. With over 15 years of production experience, we have rich expertise in manufacturing all types of couplers, including pressed and drop forged types. We maintain our own forging and punching lines and have supplied renowned scaffolding companies worldwide, such as Kaefer, At-pac, and Step-up.

  11. Fast Delivery


Drop Forged Scaffolding Swivel Coupler British Type for Pipe Fittings

British swivel coupler
swivel coupler forged

scaffolding coupler loading

scaffolding clamps manufacturer


EN74 Certificate for scaffolding swivel coupler


Swivel coupler EN74 Certificate 1

Swivel coupler EN74 Certificate 2

Swivel coupler EN74 Certificate 3

Swivel coupler EN74 Certificate 4

Swivel coupler EN74 Certificate 5
