Understanding Shoring Scaffolding: A Comprehensive Guide

Introduction

On construction sites or in hardware markets, we can see a variety of construction equipment, scaffolding, and formwork materials. They all play different roles, serving various functions and meeting different load requirements. In which, Shoring is a construction method that includes numerous types of supports, such as H and I-beam shoring, secant pile shoring, contiguous pile shoring, and sheet piles. Today, let's explore shoring scaffolding used in H and I-beam shoring.

What is Shoring Scaffolding?

Shoring scaffolding is a framework system primarily used to support or bear loads. It stabilizes unstable structures and supports loads beyond capacity, maintaining structural integrity and allowing tasks to be effectively executed.

Uses for Shoring Scaffolding

The primary use of shoring scaffolding is to provide temporary structural support, preventing collapse and maintaining stability until the structure can support itself. It also helps transfer loads throughout the construction process. Shoring is crucial for maintaining the integrity of buildings and ensuring worker safety. It is particularly useful when replacing load-bearing walls, columns, or other structures, or when other parts of the building are constructed around a structural component. Workers can also use shoring frames as scaffolding components. When building support systems, shoring towers can be used temporarily.

Shoring can be performed vertically, horizontally, or at an angle. It is most commonly used on construction sites because walls require proper support during construction. Once appropriate long-term support is in place, the shoring system can be dismantled.

Types of Shoring Scaffolding

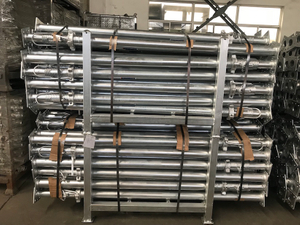

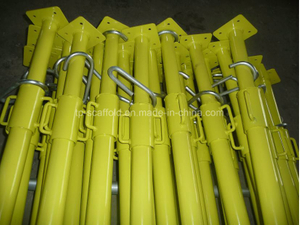

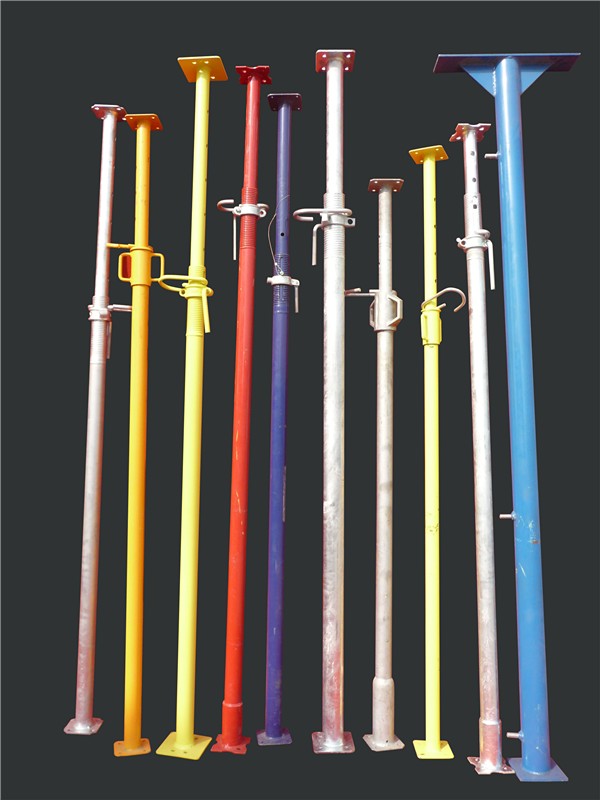

Post Shores

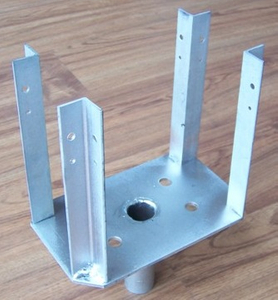

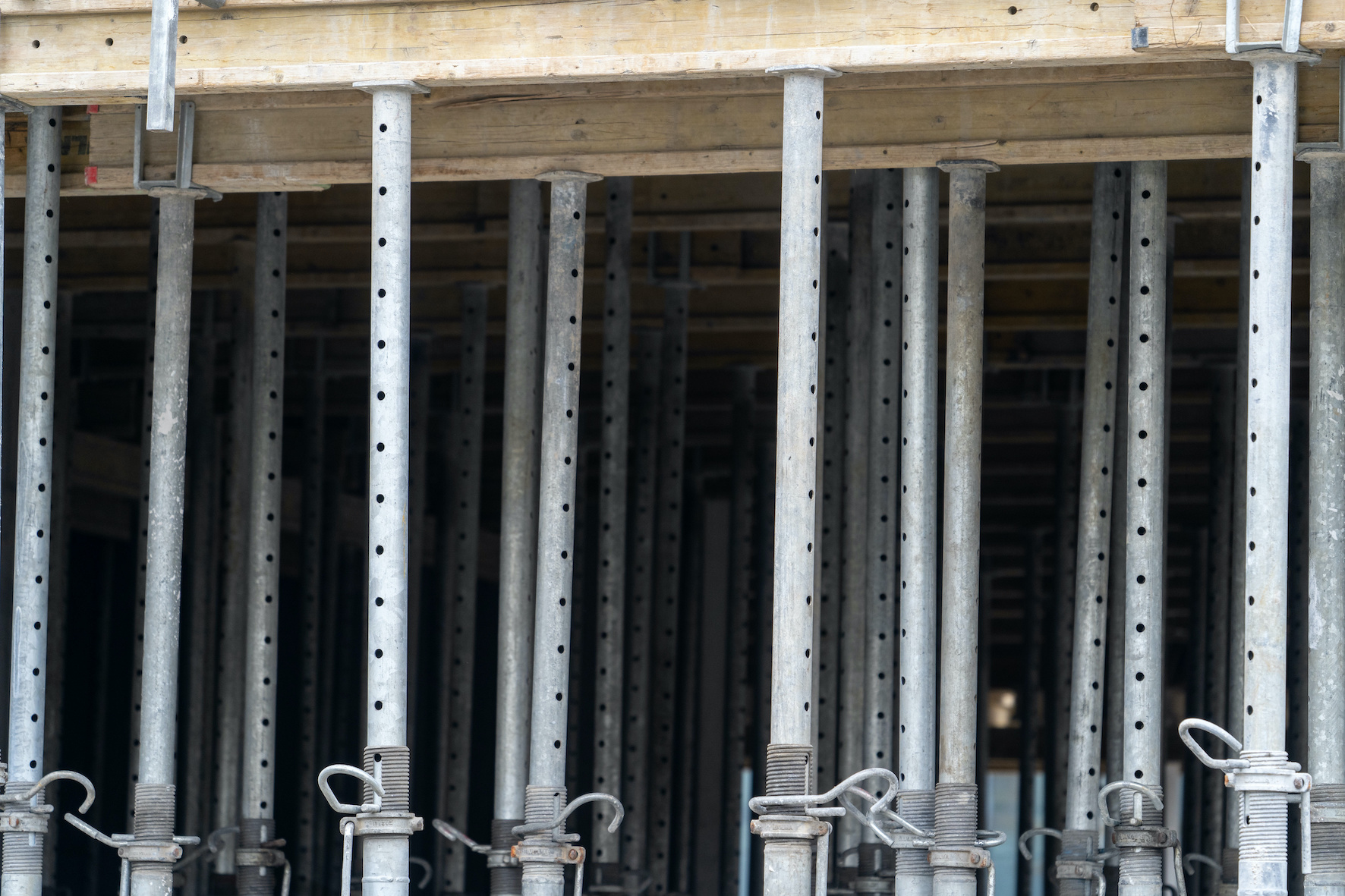

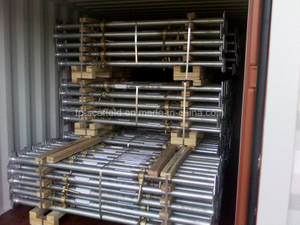

Post shores, also called shoring posts, construction props, adjustable props, are among the most common support products, composed of inner and outer tubes with adjustable lengths and welded base plates at both ends. They can directly support top steel beam formwork or use fork heads or J heads to support top structures. Shoring posts are classified into light-duty, medium-duty, and heavy-duty to meet different load requirements. The outer diameter, wall thickness, material, and adjustable length of the tubes determine the load capacity. Shoring posts are made of aluminum and steel.

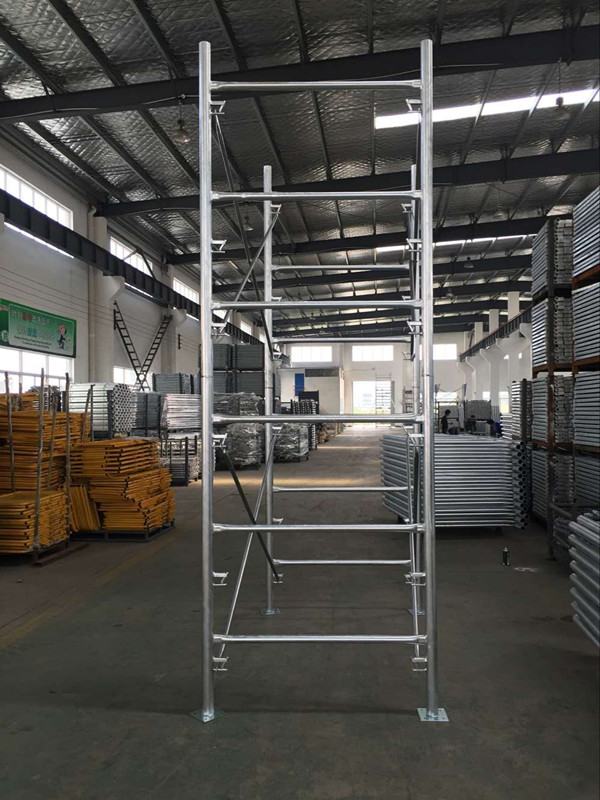

Shoring Frames

Shoring frames are also common in shoring scaffolding, consisting of welded horizontal tubes and vertical tubes in an H-shaped frame. Materials can be aluminum or steel. They require cross braces, base plates, J heads, and screw jacks to form a complete support system. Common sizes include 6'x4', 5'x4', 4'x4', and 7'6"x4'.

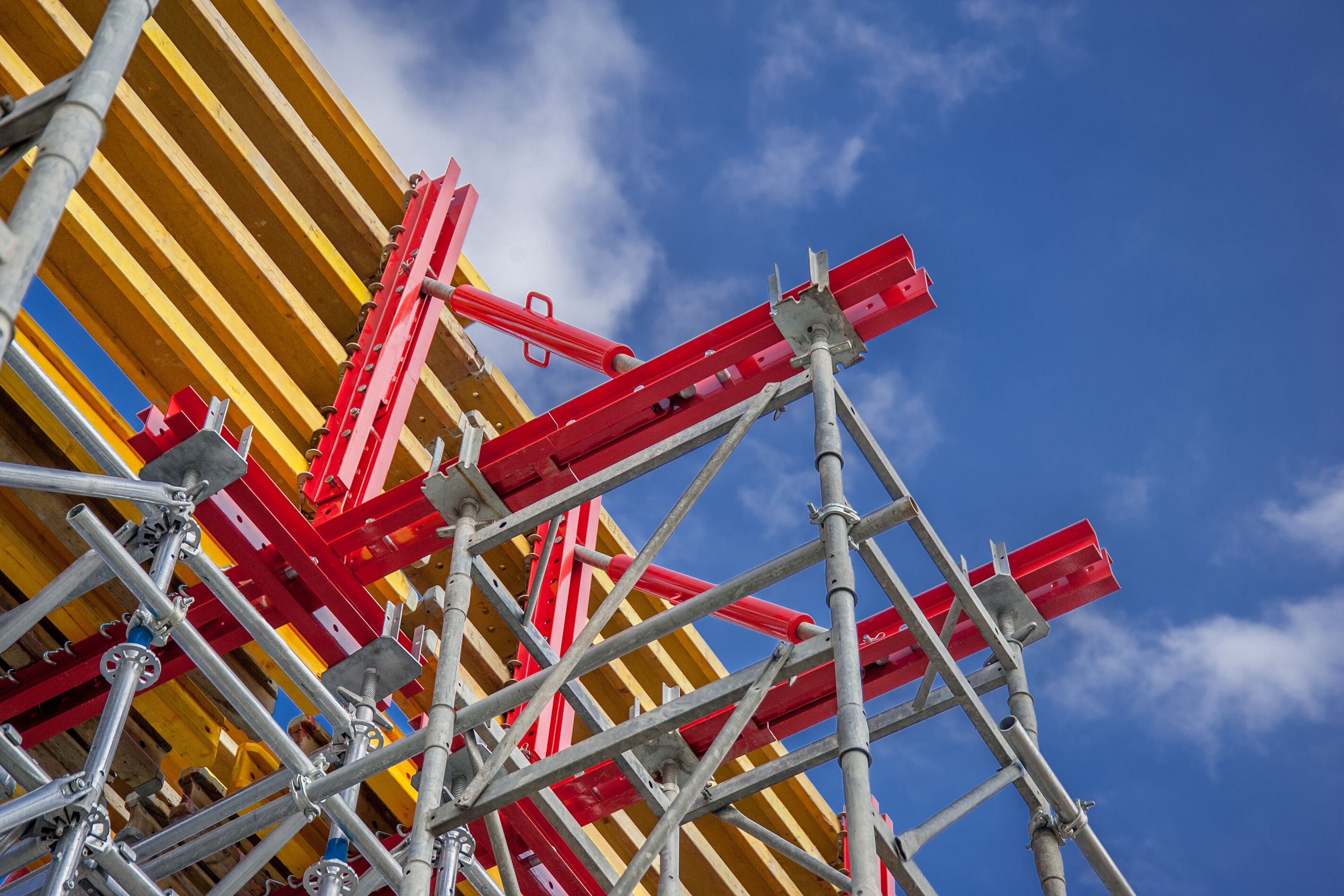

System Scaffolding

System scaffolding, including ringlock scaffolding, cuplock scaffolding, and kwikstage scaffolding, though traditional, can also serve as shoring scaffolding when paired with U-head screw jacks or fork heads.

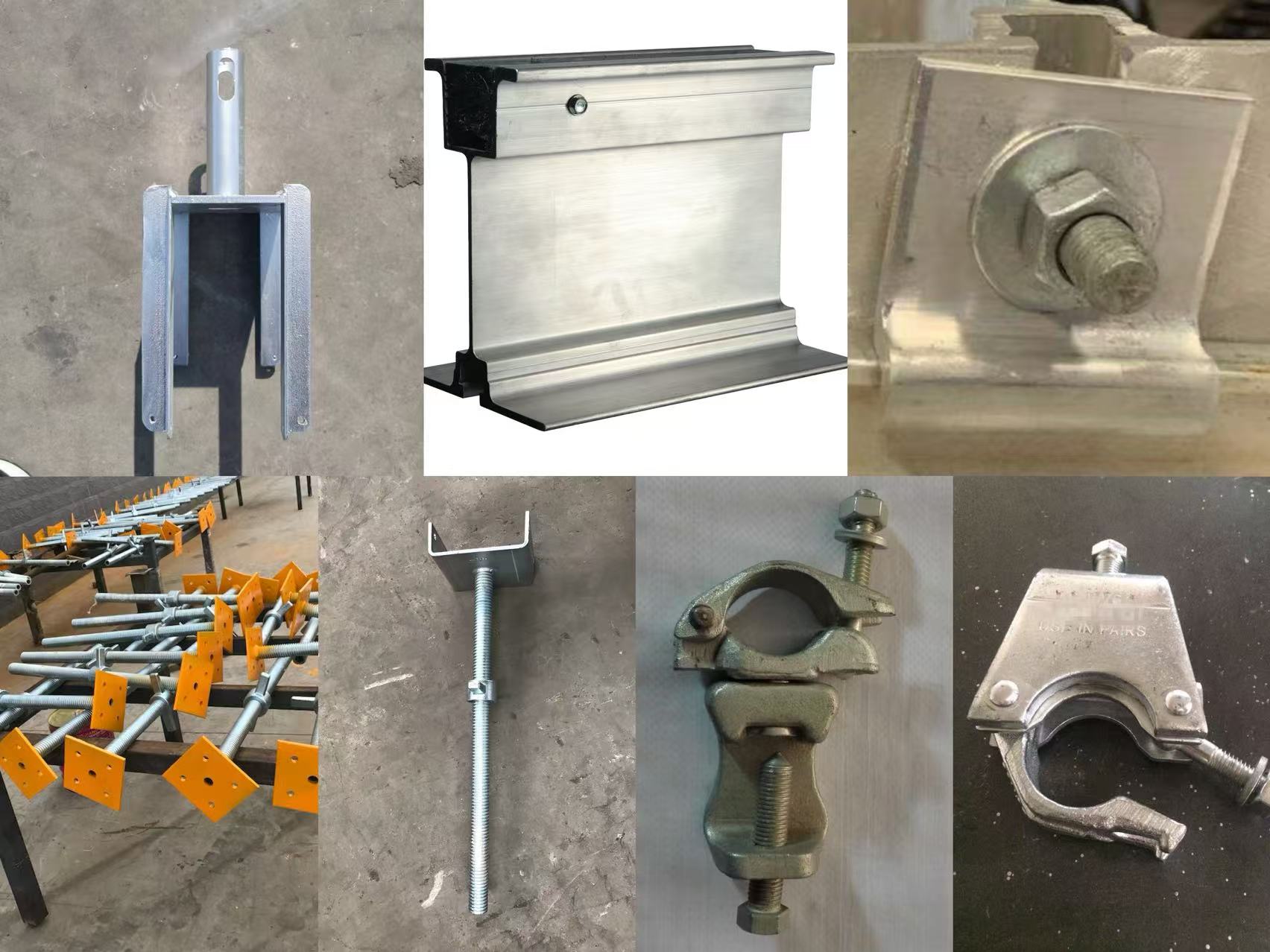

Other Shoring Scaffolding Products

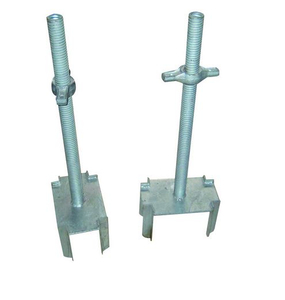

• U-head screw jack

• Base jack

• Aluminum beams

• Steel beams

• I beams

• Tube to beam clamps

• Tube to beam swivel clamps

• C clamps

Shoring Scaffolding Materials Types

Most shoring scaffolding is made from steel and aluminum to meet different environmental and load requirements.

Benefits of Using Shoring Scaffolding

1. Stability: Shoring scaffolding ensures structural stability, allowing workers to operate safely.

2. Versatility: It accommodates various types of support engineering.

3. Design Diversity: Offers diverse designs to meet different load needs.

4. High Load Capacity: Provides greater load capacity than standard scaffolding.

5. Adjustable Height: Workers can adjust it to the required height.

FAQs

1. What is the difference between shoring and scaffolding?
   Scaffolding always differs from shoring. While scaffolding can reach different heights, shoring provides stable support for unsafe structures. If the platform's main purpose is standing and performing tasks, it's scaffolding. If it supports existing structures, it's shoring.

2. Can scaffolding be used as shoring?
   In some cases, yes. The main difference lies in configuration, purpose, and design.

3. What is the difference between shoring and formwork?
   "Formwork" refers to molds for pouring concrete; "formwork" refers to the connected formwork system; "shoring" refers to structural supports and braces used to support formwork wholly or partially.

4. When should shoring be used?
   Shoring provides support systems for trench surfaces, preventing movement of soil, underground facilities, roads, and foundations. It is used when excavation makes it impractical to restore slopes to the maximum permitted slope.

5. What is the most common type of shoring?
   I-beam shoring is one of the most commonly used techniques, also known as H-beam or pile wall shoring. It involves driving or sliding and vibrating prefabricated steel H or I-beams into ground holes.

6. What is a 10k shoring frame?
   A "10k shoring frame" is a construction support frame designed to bear 10,000 pounds of load per leg, typically made of steel, used in concrete forming applications to support heavy loads during construction, such as concrete floors and ceilings, or at excavation sites. "10k" indicates the maximum load capacity per leg.

Conclusion

As a type of shoring, shoring scaffolding plays a significant role in construction projects. Nanjing Tuopeng Scaffold provides all the aforementioned shoring scaffolding products, with rich production and export experience. If you are looking for a props manufacturer, feel free to contact us ( info@tp-scaffold.com ) for the best prices.
