Construction Equipment Ringlock Scaffolding System Diagonal Brace

  • TPCTRSR002

  • Fixed

  • Combined Scaffolding

  • Full Scaffolding

  • Attached Lifting Scaffolding

  • Installation Scaffold

  • Q235

  • Optional

  • Steel Pallet

  • Jiangsu, China

  • Steel

  • Multi-Pole Scaffolding

  • Projecting Scaffolding

  • External Scaffolding

  • Ringlock Scaffolding Diagonal Brace

  • Digonal Drace

  • HDG, Powder Coated

  • TP Scaffold

  • Unit weight: 7.34-12.15kg

  • 73084000

Construction Equipment Ringlock Scaffolding System Diagonal Brace


Company information
   Nanjing Tuopeng Construction Technology Co., Ltd(TP Scaffold)  is engaged in supplying all types of safest scaffolding materials with fast delivery time and competitive prices. No matter you are distributors, contractors, or factories, you will always find what you need from us.
Product information

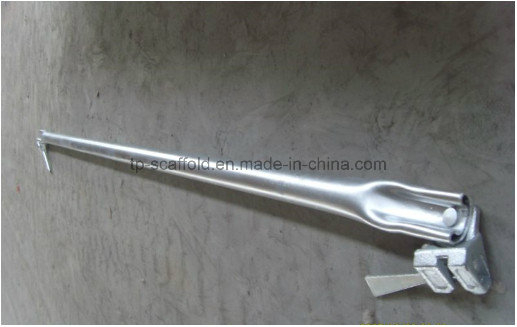

  1. Ringlock scaffolding diagonal brace is made of 48.3×2.5mm tube,two casting brace heads and wedges assembled at two sides,perfectly working with ledgers and standards.
  2.We used steel grade is Q235.This  Ringlock scaffolding Digonal Drace have high quality,so don't worry when you in the construction process.
  3.Surface finish: powder coated,HDG,protecting the surface does not rust and with less cost .
  4.Packing: We used steel pallet,it is easy to transport
  5.Following sizes are described based on 2m ringlock vertical.


Item NO. Ledger length(m) Brace length(m) Weight(kg)
TPRSDB065 0.65m 2.07 7.34
TPRSDB088 0.88m 2.15 7.99
TPRSDB092 0.92m 2.17 8.31
TPRSDB107 1.07m 2.23 8.4
TPRSDB115 1.15m 2.26 8.53
TPRSDB157 1.57m 2.48 9.23
TPRSDB183 1.83m 2.64 9.72
TPRSDB213 2.13m 2.85 10.31
TPRSDB244 2.44m 3.07 11.32
TPRSDB305 3.05m 3.56 12.15
  Our product is  be well received. We can deliver goods ASAP if you need to use this product.Other components of ringlock system is well supplied,too.
