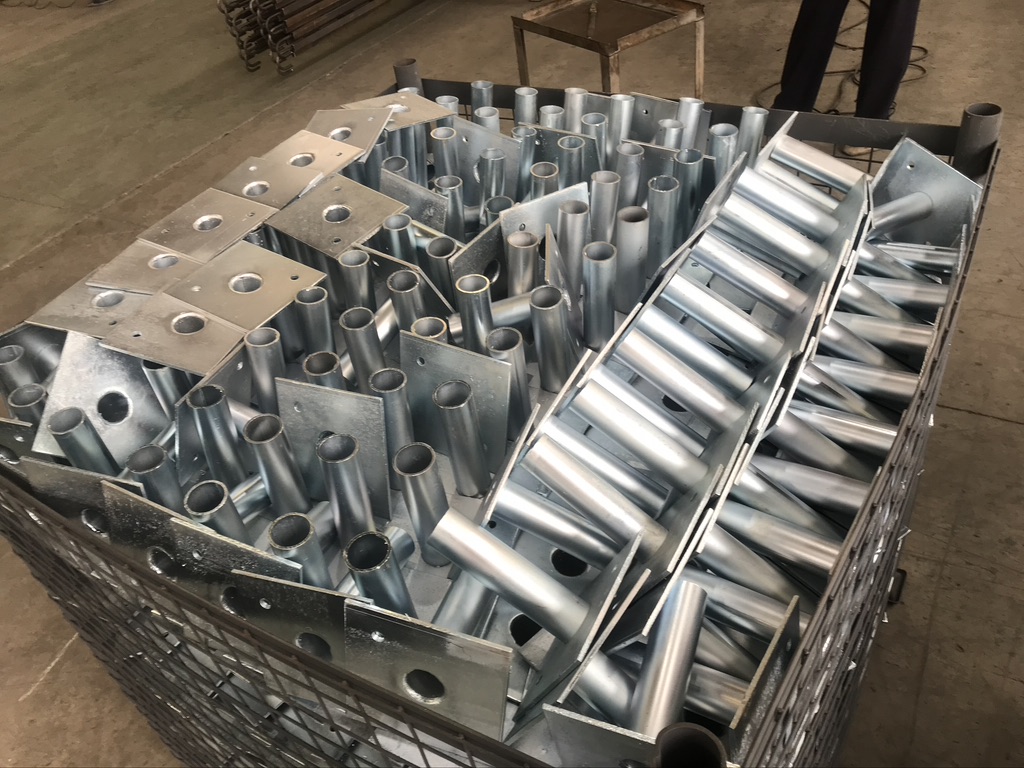

Scaffolding Base Plate

1. EN74 standard | 20-Ton Load Capacity
2. 150x150mm Steel Plate | 6mm Thickness
3. Galvanized | Corrosion-Resistant Finish
4. Universal Compatibility | Multi-System Integration
Availability:
  • TPSSFBP001

  • TP

  • 73084000

  • 34mm, 36mm, etc.

  • Electro Gal., powder coated

  • Q235

Scaffolding Base Plate


1. Dimensions & Specifications

Standard Sizes:

  •  150mm x 150mm (6-inch x 6-inch) base plate with 6mm thickness.

  • Customizable sizes: 120mm x 120mm, 200mm x 200mm, and other dimensions upon request.

  • Spigot/Socket Diameter: 48.3mm (compatible with standard scaffolding tubes).

Adjustable Height: Supports integration with screw jacks (adjustment range: 300–1,000mm)


2. Material & Surface Treatment

  • Material: High-tensile Q235 carbon steel for durability.

  • Galvanization: Hot-dip galvanized coating or electro galvanized for corrosion resistance.

  • Weatherproof Finish: Resistant to rust and harsh environmental conditions.


3. Load Capacity

  • Static Load: Up to 20 tons.

  • Safety Factor: 4:1 (dynamic load capacity: 5 tons).

  • Mandatory Use: Required on all scaffold uprights, paired with steel/timber mudsills (min. 150mm x 150mm x 6mm steel or 450mm x 225mm x 35mm timber).


4. Application Scenarios

  • Compatible Scaffolding Systems:

    • Cup-lock, Ringlock, Kwikstage, Quick Lock, Tube-and-Clamp, and Scaffolding Frames.

    • Works with stationary applications and caster jacks for mobility.

  • Use Cases:

    • High-rise buildings, bridges, industrial platforms, event stages, and exhibition booths.


5. Product Variants

  • Fixed Base Plate: Standard design for stable surfaces.

  • Swivel Base Plate: 360° rotation for directional flexibility.

  • Adjustable Screw Base Plate: Height-adjustable via threaded stems.

  • Socket Base Plate: For universal jacks and scaffold poles.

  • Spigot Base Plate: Inserted into scaffold poles (standards).


6. Customization & Manufacturing

  • Custom Designs: Available in any shape, size, or specification.

  • Welding Quality: High-precision welding

  • Packaging: Export-ready with palletized steel strapping or wooden crates.
